| Dimensions and weights | |
|---|---|
| Width/depth approx. | 650 mm |

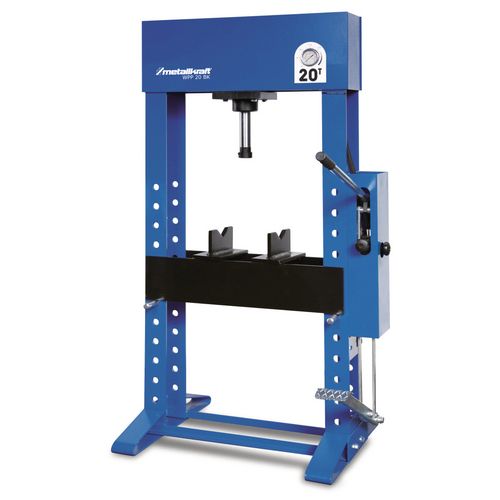

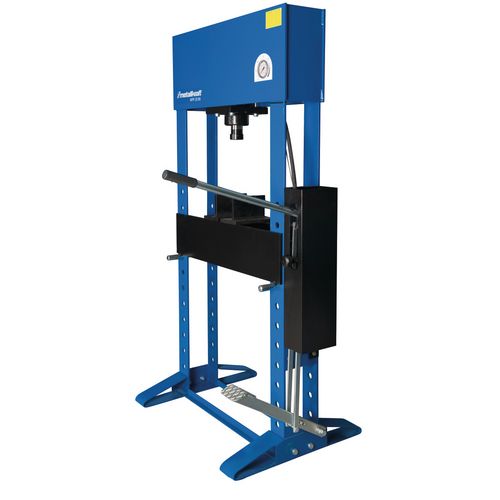

Hydraulic workshop press
WPP BK
With hand and foot pump and movable cylinder
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Price | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressure force (t) | Max. load on prism jaw (t) | Piston stroke (mm) | Piston travel (mm) | VPE | Frame depth (mm) | Max. installation height (mm) | Clear width (mm) | Length approx. (mm) | Height approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 19% Tax | |
| WPP 20 BK | 4002020 | 20 | 5 | 160 | 450 | 1 | 180 | 950 | 690 | 1010 | 1750 | 210 | Price upon request | - | |
| WPP 30 BK | 4002030 | 30 | 7.5 | 160 | 550 | 1 | 200 | 1030 | 790 | 1240 | 1920 | 280 | Price upon request | - | |
| WPP 50 BK | 4002050 | 50 | 12.5 | 150 | 500 | 1 | 210 | 1000 | 790 | 1400 | 2000 | 360 | Price upon request | - | |
Select Attributes
General
- Pressure force

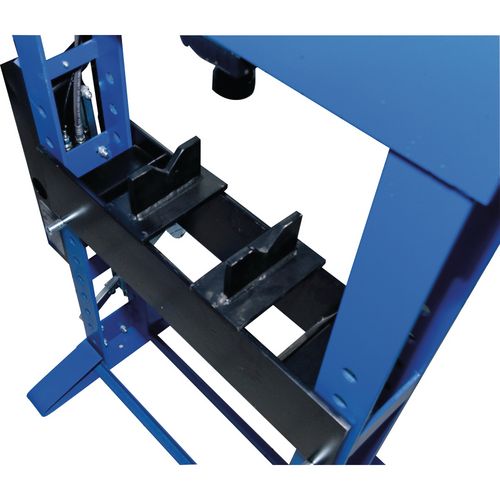

- Max. load on prism jaw
- Piston stroke
- Piston travel
- VPE
Dimensions and weights
- Frame depth
- Max. installation height
- Clear width
- Length approx.
- Height approx.
- Weight approx.
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- For all repair and assembly work, eg: straightening axles, girders, shafts, etc .; Pressing and pressing bearings, bolts and bushings; Pressing and squeezing work; Load tests and welding sample tests; and much more.
- Stable welded construction
- Robust frame with perforation for the adjustment of the work table
- Reliable, particularly precise hydraulic from European production

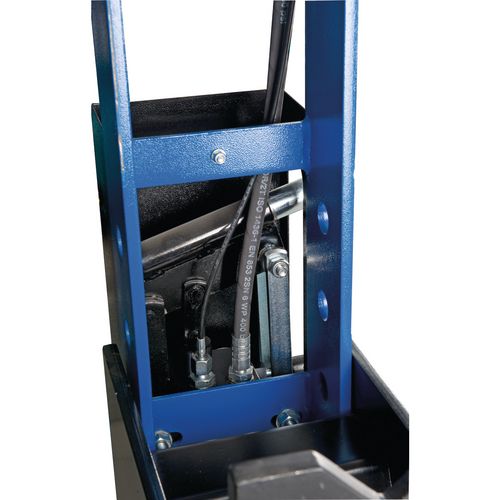

- Pressure build-up by hand or foot operation of the pump lever
- By foot pump both hands free for fixation of the workpiece
- Pressing pressure readable via manometer
- With automatic return of the piston
- With safety valve to protect against overload
- Quality Made in Europe
Note:
- For processing flat material, pressing in bearings, bolts and the like, be sure to use the optional perforated plates.
| Electrical Data | |
|---|---|
| Supply voltage | 400 |
| Mains frequency | 50 |
Unit: pc(s).
