| Piston stroke | 160 mm |

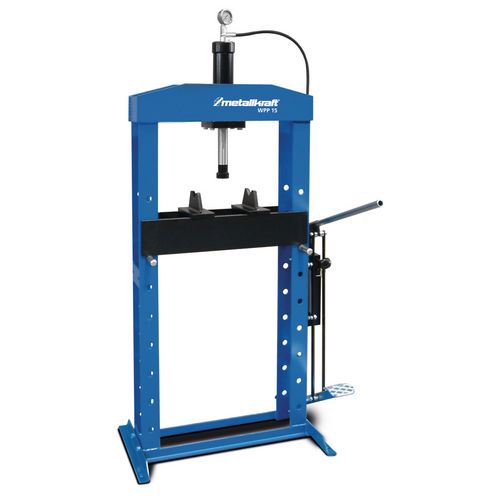

Hydraulic workshop press
WPP
With movable cylinder and hand pump
From
1.189,00
EUR excl. Tax / pc(s).
From 1.414,91 EUR incl. 19% Tax / pc(s).
From 1.414,91 EUR incl. 19% Tax / pc(s).
Promotional price *
From 1.079,00 EUR excl. Tax / pc(s).From 1.284,01 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Price | Promotional price * | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressure force (t) | Max. load on prism jaw (t) | Piston travel (mm) | VPE | Clear width (mm) | Length approx. (mm) | Height approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 19% Tax | EUR excl. Tax | EUR incl. 19% Tax | |
| WPP 15 | 4001015 | 15 | 3.5 | 340 | 1 | 500 | 900 | 1890 | 120 | 1.079,00 | 1.284,01 | |||
| WPP 20 | 4001020 | 20 | 5 | 380 | 1 | 610 | 950 | 1900 | 140 | 1.149,00 | 1.367,31 | |||
| WPP 30 | 4001030 | 30 | 7.5 | 450 | 1 | 710 | 1150 | 1980 | 230 | 1.899,00 | 2.259,81 | |||
Select Attributes
General
- Pressure force
- Max. load on prism jaw
- Piston travel
- VPE
Dimensions and weights
- Clear width
- Length approx.
- Height approx.
- Weight approx.
Price
- excl. Tax
- incl. 19% Tax
Promotional price
- excl. Tax
- incl. 19% Tax
Productdetails
- For all repair and assembly work, e.g.: alignment of axles, beams, shafts, etc .; pressing and pressing bearings, bolts and bushings; pressing and squeezing work; load tests and welding sample tests; and much more
- Stable welded construction
- Robust frame with perforation for the adjustment of the press table
- Reliable, very precise hydraulic from European production
- With chrome-plated cylinder pistons
- Pressing pressure readable via manometer
- With automatic return of the piston with safety valve to protect against overload
- For processing flat material, pressing in bearings, bolts and the like, it is essential to use the optional perforated plates
- Quality made in Europe
| Dimensions and weights | |
|---|---|
| Max. installation height | 1000 mm |
| Frame depth | 150 mm |
| Width/depth approx. | 600 mm |
