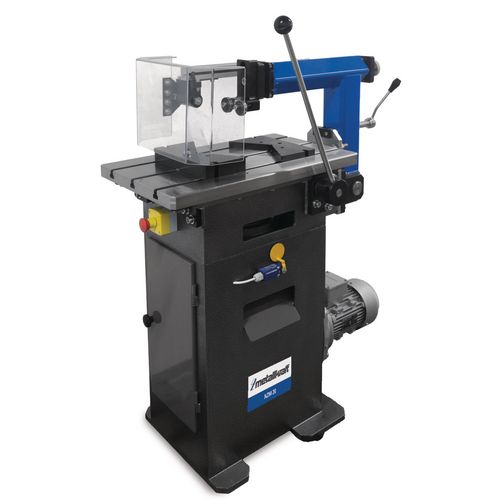

    Slotting machine

    NZM 20

    For the production of grooves up to 30x20 mm in metal or non-metal workpieces

    14.599,00 EUR excl. Tax / pc(s).
    17.372,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    11.999,00 EUR excl. Tax / pc(s).
    14.278,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheitsdatenblatt 2

    Safetydatasheet 2

    Art.-No. 3818420

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Grooves are drawn in vertical direction. This has advantages over grooving: Higher accuracy, better surface finish and higher cutting speed
    • Quicker and easier tool change

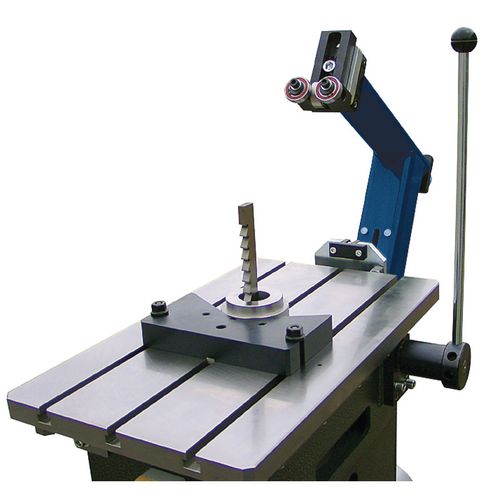

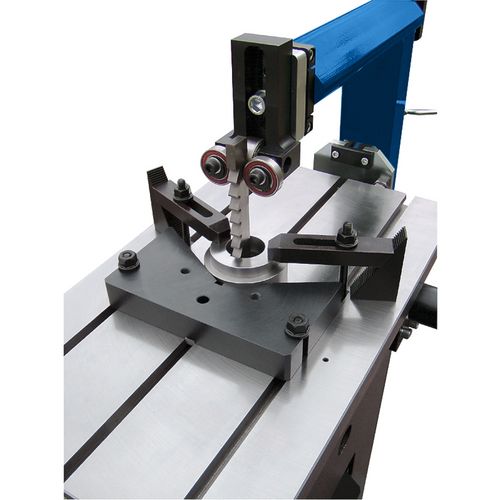

    • No running of the drawing knife during cutting due to three-sided ball bearing guide on the upper side of the knife
    • Perpendicular angle of the drawing knife to the workpiece can be finely readjusted via rotary wheel
    • Table feed is manual via large hand lever
    • Extremely robust and low-maintenance construction
    • Convenient workpiece change due to backward tiltable tool arm

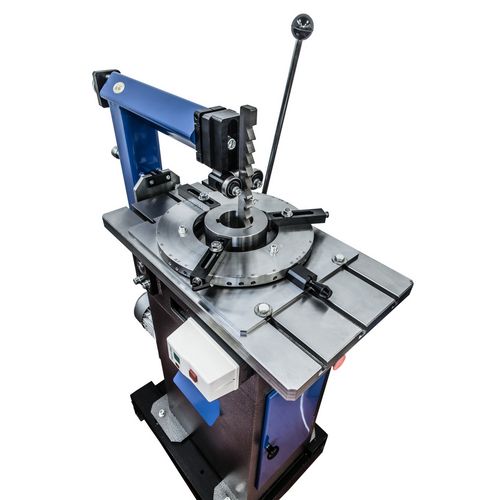

    • Dividing plate with different angular pitches (available as accessory) enables precise and fast clamping and reclamping of the workpieces



    • No running of the drawing knife during cutting due to three-sided ball bearing guide on the upper side of the knife
    • Table feed is manual via large hand lever
    • Convenient workpiece change due to backward tiltable tool arm
    • Perpendicular angle of the drawing knife to the workpiece can be finely readjusted via rotary wheel



    Data sheets
    Sicherheitsdatenblatt 2
    Safetydatasheet 2
    Workpiece height min.Tooth spacing of the drawing knife + 2 mm
    Workpiece height max.90 / 170 mm
    Explanation Workpiece height max.Drawing knife with width 5-8mm / 10-20mm
    Number of strokes per minute54
    Work table length400 mm
    Work table width680 mm
    Working height880 mm
    Slot depth max.30 mm
    Slot width max.20 mm
    VPE1
    Dimensions and weights
    Length approx.520 mm
    Width/depth approx.1030 mm
    Height approx.1200 mm
    Weight approx.330 kg
    Electrical Data
    Drive motor output1,5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

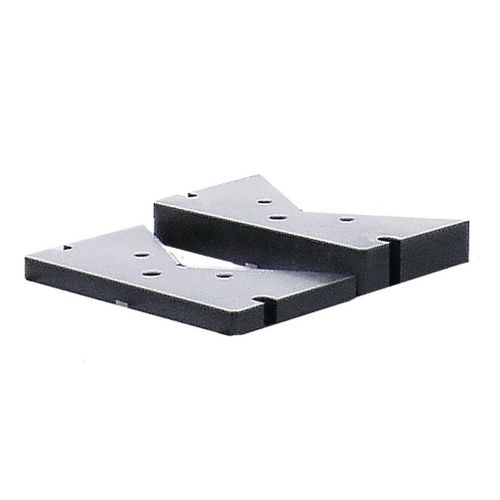

    • Two clamping prisms
