| Angled steel shears | |
|---|---|
| Cutting capacity 90° L section | 200 x 200 x 15 mm |
| Cutting capacity 45° L section | 80 x 10 mm |
| Cutting capacity U-I section (accessory) | 300 x 125 mm |
| Cutting capacity T section (accessory) | 150 x 15 mm |
| Working height | 1130 mm |

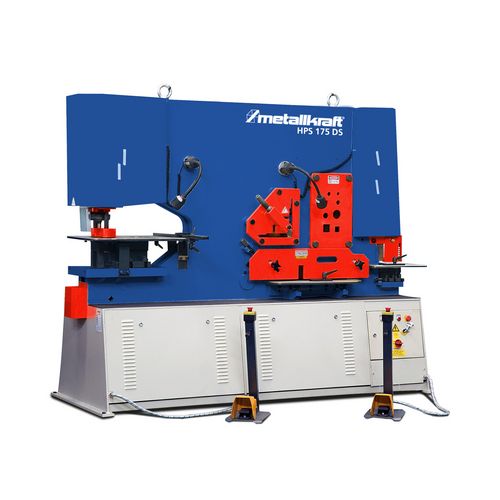

Hydraulic sectional steel shears / punching machine
HPS 175 DS
Combined machine with up to 5 processing stations and foot operation
48.690,00
EUR excl. Tax / pc(s).
57.941,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3819175
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
- DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
- Stepless adjustment of the stroke
- Larger reach for punching station with 620 mm optional, available from HPS 55DS
- Heavy and rigid welded construction
- Standard with notching knife starting from HPS 45S
- With powerful 400 Volt motor
- V-notching knife, oversized punching device and larger throat depth for punching station available on request
- Two-stage foot pedal for inching operation
- Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)
Advantages of punching over drilling:
- High time savings - cycle times
- No chips
- No cooling
Note:
- All hydraulic sectional shears are delivered with oil
| Dimensions and weights | |
|---|---|
| Length approx. | 2730 mm |
| Width/depth approx. | 1150 mm |
| Height approx. | 2280 mm |
| Weight approx. | 6000 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Flat steel shears | |
|---|---|
| Material width x max. thickness | 380 x 30 mm |
| Material max. width x thickness | 600 x 20 mm |
| Knife length | 610 mm |
| Angled cut 45° max. leg length x max. thickness | 120 x 15 mm |
| Working height | 810 mm |
| Notching station | |
|---|---|
| Max. material thickness | 16 mm |
| Max. notching width | 60 mm |
| Max. notching depth | 100 mm |
| Working height | 100 x 100 x 16 mm |
| Punching station | |
|---|---|
| Punching force | 175 t |
| Diameter x max. sheet thickness (steel 400 N/mm²) | 40 x 32 mm |
| Max. diameter x sheet thickness (steel 400 N/mm²) | 57 x 22 mm |
| Reach | 625 mm |
| Max. lift stroke | 80 mm |
| Stroke count | 22 /min |
| Working height | 810 mm |
| Steel bar shears | |
|---|---|
| Capacity round material | 65 mm |
| Capacity square material | 50 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

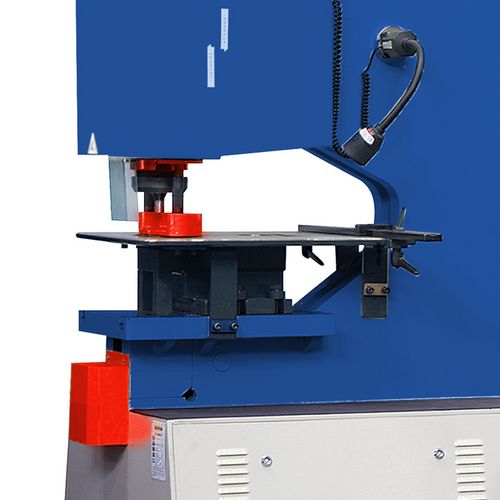

- punching station

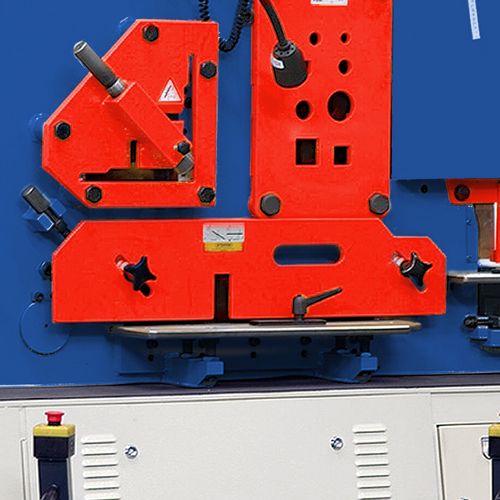

- Flat shear

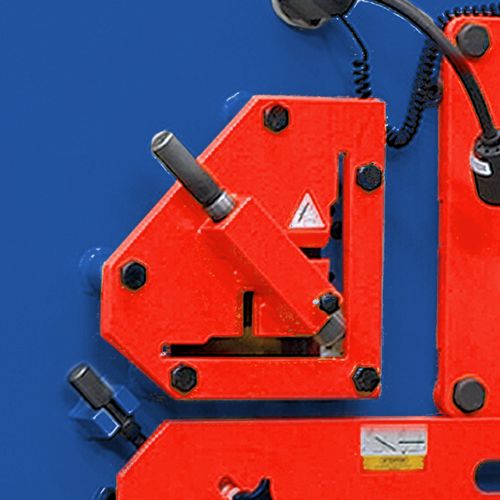

- Angle Shear

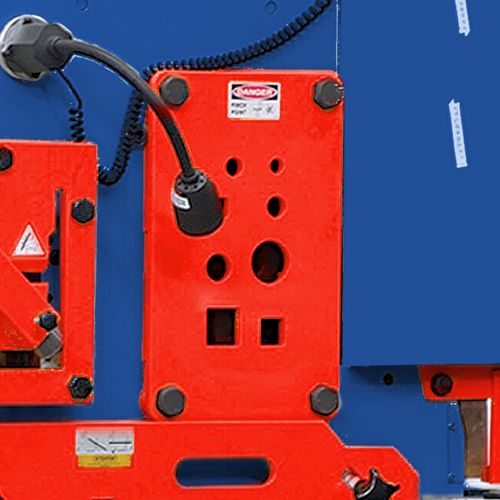

- Section steel shears with round and square blade

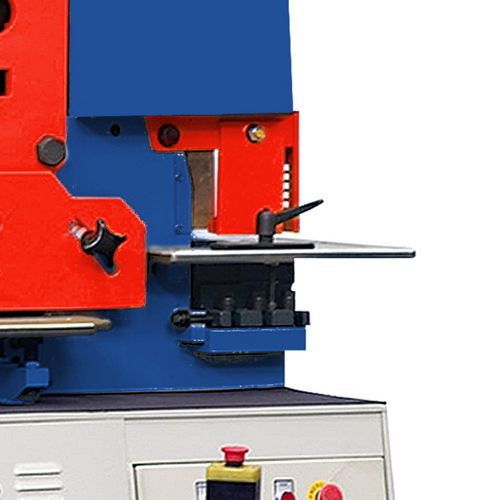

- notching
- work light
- Electrical contact stroke
- Stamp holder with bayonet lock
- Stamp and Die Reductions # 1, # 2, # 3, # 30, # 45, # 60

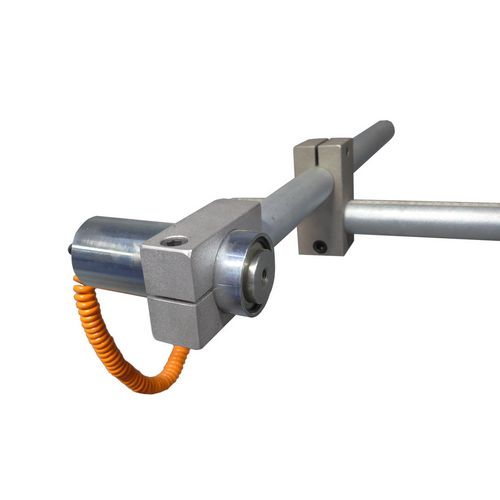

- Punch with adjustable stop with scale, flat steel scissors and notch with adjustable stops
- hook wrench
- 2 working cylinders and 2 foot pedals
- hydraulic oil
