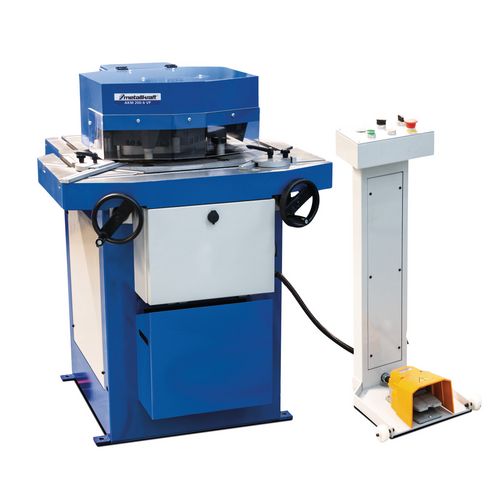

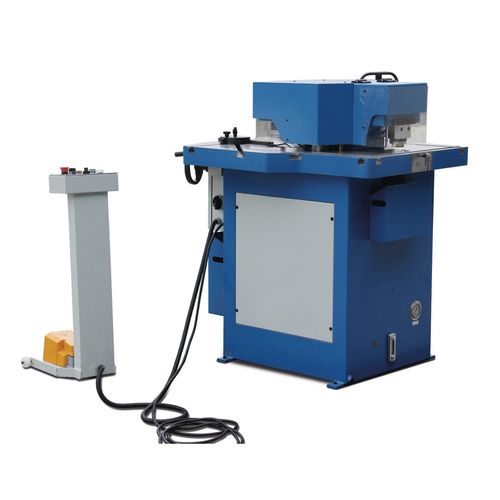

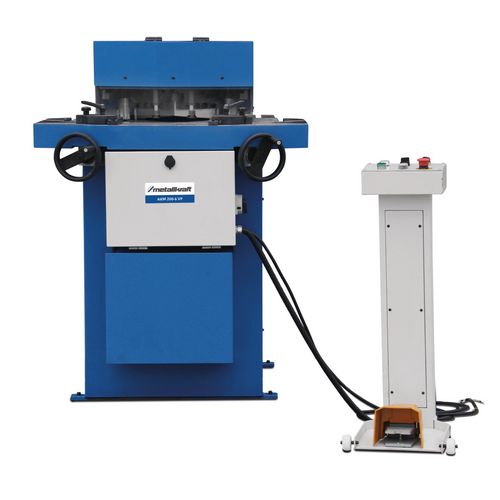

    Notching machine with punching station

    AKM 200-6 VP

    For fast notching with variable angle and for hole punching

    11.099,00 EUR excl. Tax / pc(s).
    13.207,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    10.599,00 EUR excl. Tax / pc(s).
    12.612,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3837060

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • User-friendly and energy-saving thanks to the hydraulic drive
    • Heavy, stable construction

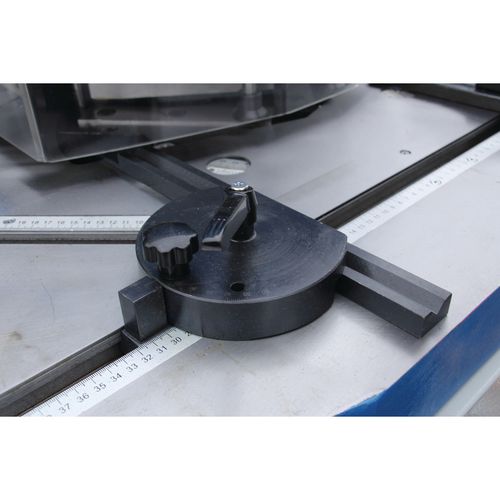

    • Solid table with recessed scales and T-slots for precise adjustment of the swiveling stops
    • Exact angle adjustment Via two handwheels

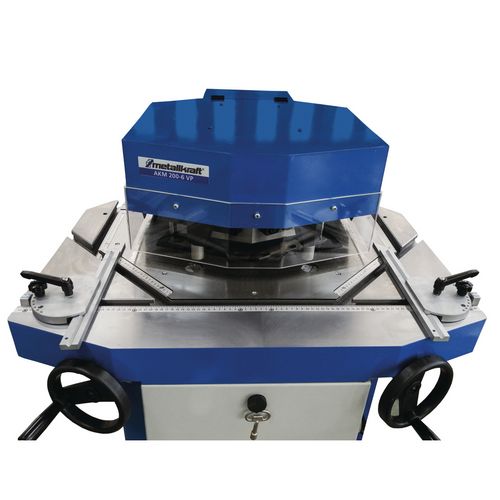

    • Finger protection cover made of plexiglass for an optimal view of the cutting edge

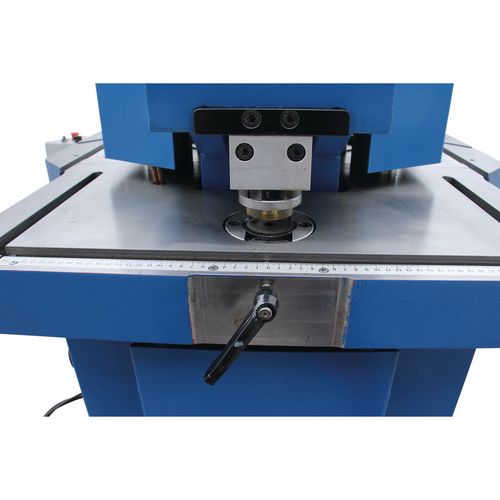

    • Punching station with 12 tons of punching pressure on the back
    • Operation via pedal
    • Delivered with hydraulic oil



    • Heavy, stable construction
      • < li>Exact angle adjustment via two handwheels
    • punching station with 12 tons of punching pressure on the back



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting pressure max.12 t
    Cutting range length200 mm
    Cutting range width200 mm
    Work table length985 mm
    Work table width900 mm
    Work table height945 mm
    Cutting performance 90° (tensile strength 400 N/mm²)6 mm
    Cutting angle30 – 140 °
    Number of strokes15 /min
    Oil tank capacity58 l
    VPE1
    Dimensions and weights
    Length approx.1065 mm
    Width/depth approx.900 mm
    Height approx.1210 mm
    Weight approx.1020 kg
    Electrical Data
    Drive motor output4 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Pneumatic connection
    Working preasure 160 bar
    Punching station
    Punching force punching station12 t
    Punch hole diameter max.40 mm
    Unit: pc(s).
    Packaging unit: 1

    • Knife set for steel, top
    • Knife set for steel, below
    • Hydraulic oil
