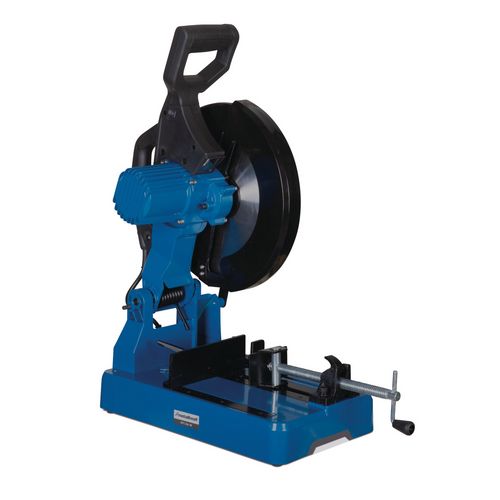

    Metal dry cutter

    MTS 356-4B action set with saw blade and base frame

    with four speeds

    564,00 EUR excl. Tax / pc(s).
    671,16 EUR incl. 19% Tax / pc(s).
    Promotional price *
    539,00 EUR excl. Tax / pc(s).
    641,41 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3840356SET2

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

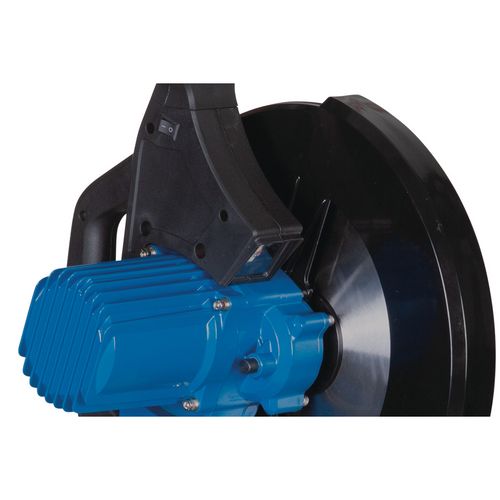

    • With brushless motor - particularly efficient, durable and maintenance-free
    • For low-burr sawing of profiles and pipes made of steel, iron, copper, brass, aluminum, plastics and composite materials without coolant
    • Application e.g. in metal construction, joineries, interior fitters etc.
    • Easy to transport
    • Four speeds selectable at the touch of a button
    • Motor with soft start

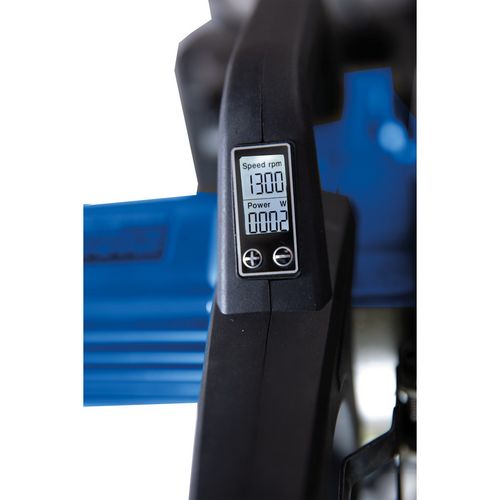

    • Digital display showing the selected speed and current power in watts
    • Angle adjustment 0° - 45° for mitre cuts

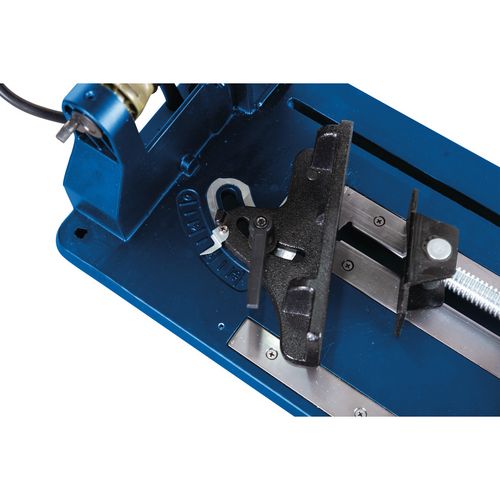

    • Vice with quick adjustment
    • Large LED work light on the underside of the handle to illuminate the work area
    • With spindle lock for quick saw blade changes
    • Compatible with the MUG 1 machine base (3630000)



    • With brushless motor - particularly efficient, durable and maintenance-free
    • Four speeds selectable at the touch of a button
    • Motor with soft start
    • Digital display showing the selected speed and current power in W
    • Angle adjustment 0° - 45° for mitre cuts
    • Vice with quick adjustment
    • Large LED work light on the underside of the handle to illuminate the work area



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Saw blade speed(s)700 / 900 / 1100 / 1300 min¯¹
    Saw blade diameter355 mm
    Miter angle0 – 45 °
    VPE1
    Cutting capacity
    0° (round) pipe130 mm
    0° (square) pipe125 x 125 mm
    0° (rectangle) pipe170 x 110 mm
    Dimensions and weights
    Weight approx.25 kg
    Electrical Data
    Drive motor output3.5 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Saw blade for steel 355x25.4x2.4mm Z66
    • Substructure MUG1
