    Productimage for VMBS 3613 I E
    Brandimage to Product VMBS 3613 I E

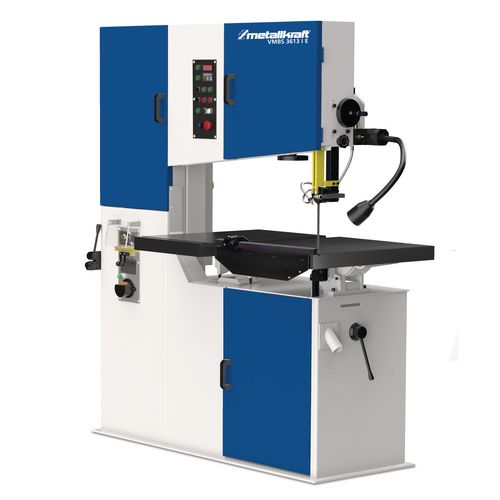

    Vertical metal bandsaw

    VMBS 3613 I E

    solid and proven construction with inclinable work table and strip welding unit

    17.050,00 EUR excl. Tax / pc(s).
    20.289,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    14.699,00 EUR excl. Tax / pc(s).
    17.491,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3953614

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Extremely stable construction, entire machine body made of steel
    • User-friendly operating concept
    • Speed infinitely variable via inverter - Greater ease of operation and no need to replace wearing parts such as V-belts
    • Combined micro-spray and blow-off device, for blowing off chips and lubricating the saw blade
    • Tiltable working table made of cast iron
    • Workplace lighting as standard
    • Equipped with motor brake
    • Belt tension and speed indicator
    • Integrated band welding unit with annealing, cutting and grinding device
    • Height adjustment of saw band guide by hand wheel
    • VMBS I E models with electric table feed



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max. cutting height330 mm
    Saw band speed(s)15 – 120; 190 – 1500 m/min
    Saw band length4990 mm
    Max. saw band length5030 mm
    Saw band width from to13 – 27 mm
    Saw band thickness0,65 – 0,9 mm
    Reach915 mm
    Table length600 mm
    Table width700 mm
    Table load max.350 kg
    Extension table length450 mm
    Extension table width700 mm
    Working height990 mm
    Table swivel range for mitre cuts12 / 12 °
    Saw band welding device output19 mm
    Wheel diameter515 mm
    Diameter of additional top wheel368 mm
    Table travel300 mm
    Sound pressure level73.2 dB(A)
    VPE1
    Dimensions and weights
    Length approx.1760 mm
    Width/depth approx.810 mm
    Height approx.2060 mm
    Weight approx.815 kg
    Electrical Data
    Drive motor output2.2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Circle cutting device
    • Miter fence for angle cuts
    • Rip fence
    • Magnifying glass



    Material feedelectric
