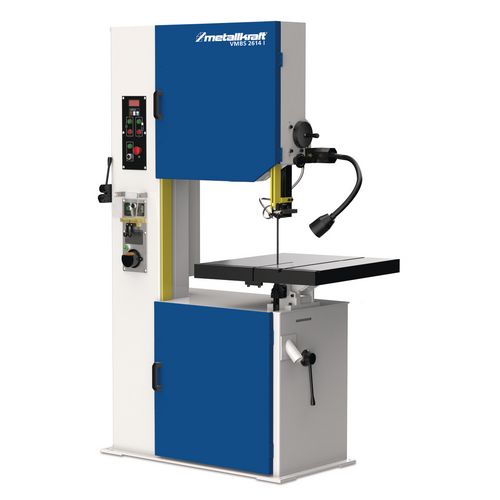

Vertical metal bandsaw
VMBS 2614 I
solid and proven construction with inclinable work table and strip welding unit
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3952614
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Extremely stable construction, entire machine body made of steel
- User-friendly operating concept
- Speed infinitely variable via inverter - Greater ease of operation and no need to replace wearing parts such as V-belts
- Combined micro-spray and blow-off device, for blowing off chips and lubricating the saw blade
- Tiltable working table made of cast iron
- Workplace lighting as standard
- Equipped with motor brake
- Belt tension and speed indicator
- Integrated band welding unit with annealing, cutting and grinding device
- Height adjustment of saw band guide by hand wheel
- VMBS I E models with electric table feed
| Max. cutting height | 360 mm |
| Saw band speed(s) | 15 – 120; 190 – 1500 m/min |
| Saw band length | 4660 mm |
| Max. saw band length | 4730 mm |
| Saw band width | 13 – 27 mm |
| Saw band thickness | 0,65 – 0,9 mm |
| Reach | 658 mm |
| Table length | 600 mm |
| Table width | 700 mm |
| Table load max. | 350 kg |
| Working height | 980 mm |
| Table swivel range for mitre cuts | 12 / 12 ° |
| Saw band welding device output | 19 mm |
| Wheel diameter | 665 mm |
| Sound pressure level | 68.4 dB(A) |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1340 mm |
| Width/depth approx. | 810 mm |
| Height approx. | 2190 mm |
| Weight approx. | 645 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 2.2 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Circle cutting device
- Miter fence for angle cuts
- Rip fence
- Magnifying glass
| Material feed | manually |
