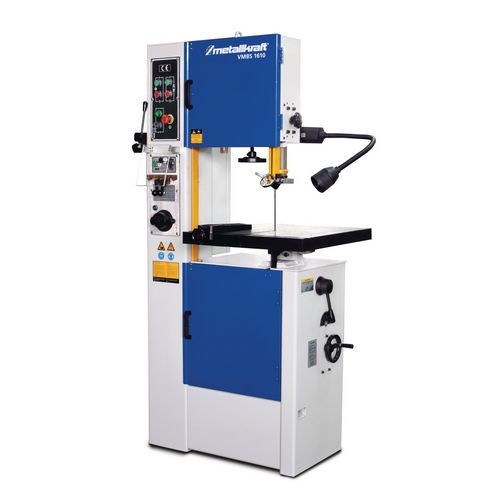

Vertical metal bandsaw
VMBS 1610
In solid and proven construction with band welding unit.
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3951610
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Extremely stable construction, entire machine body made of steel
- User-friendly operating concept

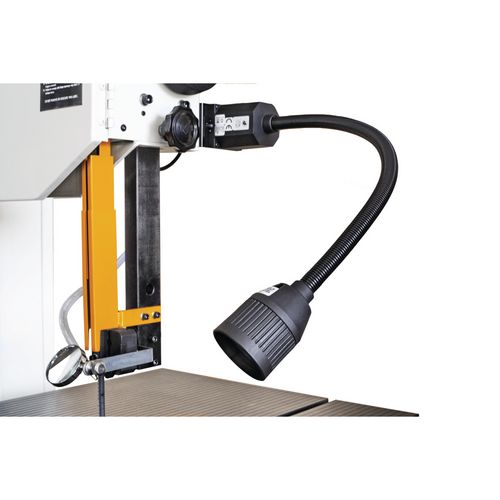

- With workplace lighting

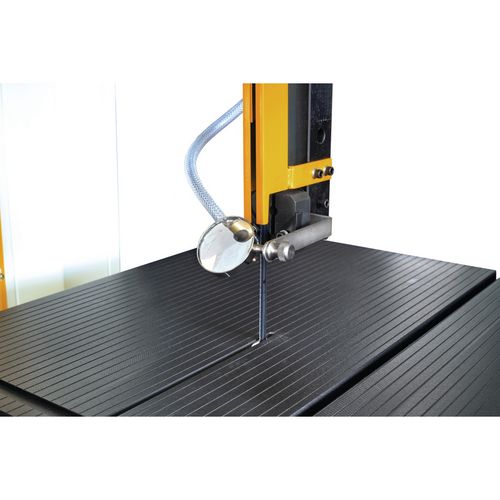

- Tilting work table made of gray cast iron
- Speed continuously adjustable
- Tape tension and tape speed indicator
- Blower for sawdust

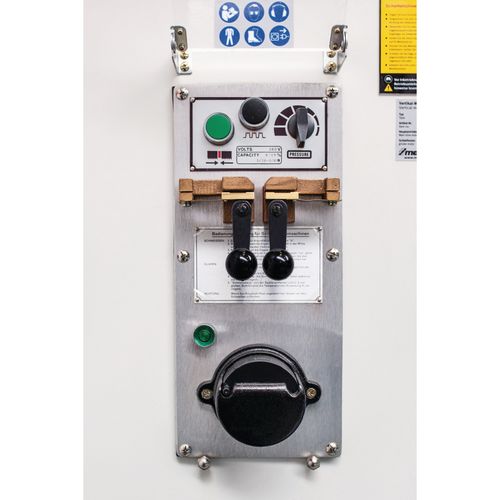

- Integrated band welding unit with annealing, cutting and grinding device
- With rip fence
- With 2-speed gearbox
| Max. cutting height | 255 mm |
| Saw band speed(s) | 20 – 80; 250 – 1000 m/min |
| Saw band length | 3145 mm |
| Max. saw band length | 3180 mm |
| Saw band width | 16 mm |
| Reach | 396 mm |
| Table length | 550 mm |
| Table width | 600 mm |
| Table load max. | 150 kg |
| Working height | 1000 mm |
| Table swivel range for mitre cuts | 12/15 ° |
| Table swivel range to front and rear | 8 / 8 ° |
| Saw band welding device output | 16 mm |
| Wheel diameter | 408 mm |
| Sound pressure level | 70.5 dB(A) |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 940 mm |
| Width/depth approx. | 675 mm |
| Height approx. | 1840 mm |
| Weight approx. | 410 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
Saw band 3150mm x 8mm x 0.65mm 14T
