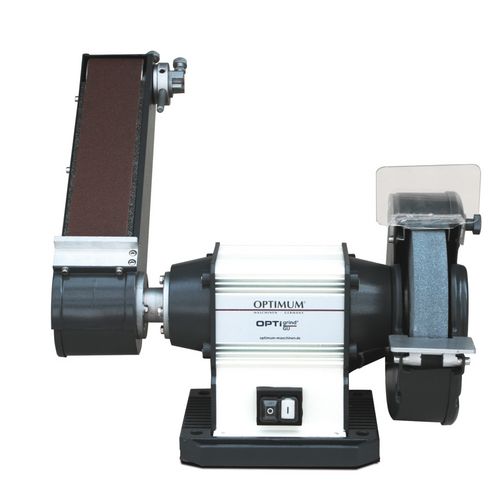

Universal grinding machine
OPTIgrind GU 25S
Functional with abrasive attachment
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3101580
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Robust and stable universal grinding machines with abrasive belt and grinding wheel for a wide range of materials
- Heavy, durable industrial design with maintenance-free motor
- Housing made of extruded aluminum
- Large, heavy mounting flanges and thus high disc concentricity

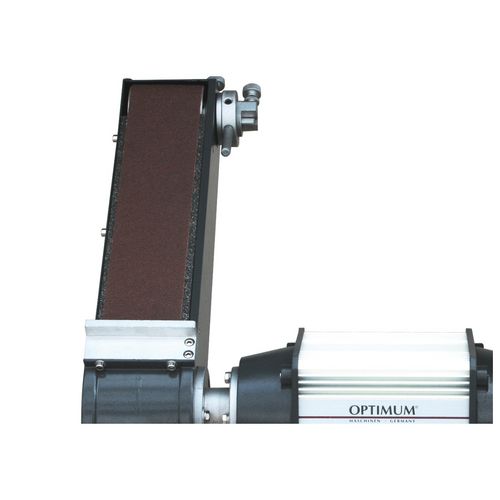

- Sanding attachment with graphite coating; prevents friction and heat
- Stop allows quick and easy sanding of workpieces
- Tape adjustment without tools - only adjustable with a handle screw
- Universal corundum grinding wheel and sanding belt in the standard scope of delivery
Workpiece support
- Stable
- Adjustable
| Dimensions and weights | |
|---|---|
| Length approx. | 514 mm |
| Width/depth approx. | 319 mm |
| Height approx. | 596 mm |
| Weight approx. | 31.5 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Grinding wheel(s) | |
|---|---|
| External diameter | 250 mm |
| Width | 40 mm |
| Drill hole | 32 mm |
| Speed | 2850 min¯¹ |
| Sanding attachment | |
|---|---|
| Grinding belt length | 1016 mm |
| Grinding belt width | 75 mm |
| Grinding attachment swivel range | 90 ° |
| Extraction duct nominal width | 32 mm |
| Grinding support length | 305 mm |
| Grinding support width | 87 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Grinding wheel normal corundum fine K80
- Sanding belt normal corundum fine K80
