    Brandimage to Product TP 65 SD 3kW

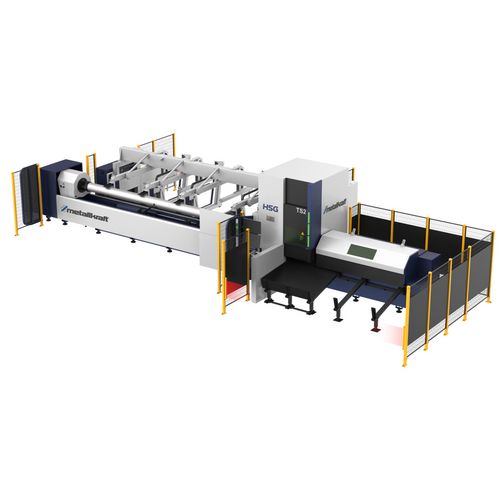

    Tube laser cutting systems with drilling and threading function

    TP 65 SD 3kW

    for processing tubular components

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 4660020

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • With its own tool magazine for automatic tool change
    • HSG-LA4 cutting head for pipe chamfers from 0 – 45°
    • Intelligent digital chuck with closed control loop: Precise clamping with exactly the right clamping force even for thin workpieces, auto-centering, wireless transmission, detection of the clamping jaw position in real time, adaptive clamping force, automatically detects if an incorrect workpiece is clamped and stops immediately
    • Extended production options thanks to integrated drilling and tapping function
    • HSG-X Bus Control System
    • Speed+ high-speed tube cutting technology
    • Laser source from Raycus: one of the best-known manufacturers of efficient and high-quality laser sources
    • Extra stable welded construction for high stability and high cutting precision
    • Efficient cutting of square tubes thanks to optimized travel paths
    • High-quality components from the market leaders in their industry
    • Bus control via EtherCAT protocol, fast control speed



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Rotating Speed of Chucks120 U/min
    Workpiece size round tubeØ12 – 254 (max. 273) mm
    Workpiece size square tube20 x 20 – 200 x 200 mm
    Weight of Single Tube200 kg
    Acceleration1.2 G
    Repositioning Accuracy± 0.03 mm
    VPE1
    Dimensions and weights
    Length approx.12500 mm
    Width/depth approx.4700 mm
    Height approx.2600 mm
    Weight approx.9500 kg
    Electrical Data
    Laser power3 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Cooling unit
    • Stabilizer
    • Protective device / light barriers
