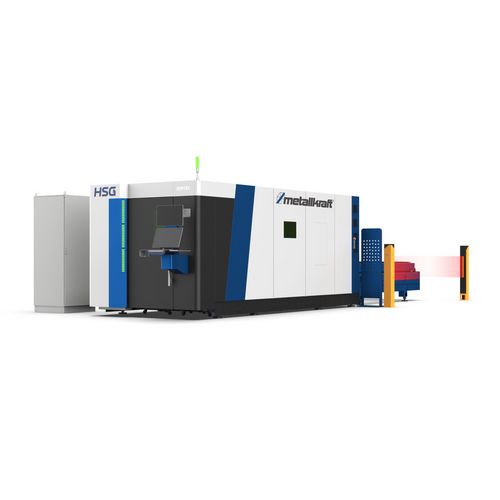

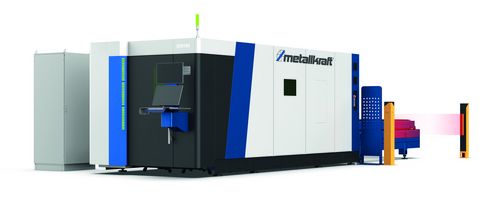

Sheet metal-laser cutting machine with double exchange platforms
GX 4020X Pro 12kW
with up to 12 kW power
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4650030
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Extra-sturdy welded construction for high stability and high cutting precision
- High quality components from the market leaders in their industry

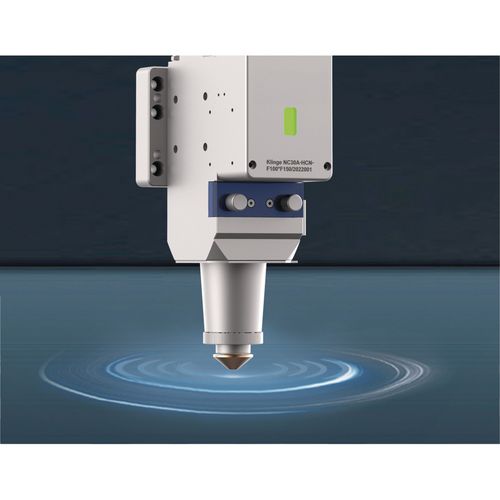

- Laser head from HSG Laser -> Higher focusing speed than comparable laser cutting units. Thus higher piercing speed for large material thicknesses. A double protective lens extends the life of the main lens
- Laser source from Raycus -> One of the best known manufacturers of efficient and high quality laser sources that achieve large output powers.
- Precise X and Y axes with HIWIN guides and servo motors from Panasonic
- Control system - HSG Alpha T
Bus control via EtherCAT protocol, fast control speed - Equipped with several functions such as scan cutting, 5-step piercing, maintenance reminder, process report
| Max. travel X-axis | 2032 mm |
| Max. travel Y-axis | 4064 mm |
| Max. travel speed | 140 m/min |
| Position accuracy | ± 0.03 mm/m |
| Max. machine table load | 2500 kg |
| VPE | 1 |
| Cutting performance | |
|---|---|
| Material thickness max. mild steel | 40 mm |
| Material thickness max. stainless steel | 40 mm |
| Material thickness max. aluminum | 40 mm |
| Material thickness max. brass | 16 mm |
| Explanation Material thickness max. | Information on the maximum material thickness depending on the cutting gas used (nitrogen, oxygen, air) |
| Dimensions and weights | |
|---|---|
| Length approx. | 11000 mm |
| Width/depth approx. | 3900 mm |
| Height approx. | 2300 mm |
| Weight approx. | 7600 kg |
| Electrical Data | |
|---|---|
| Laser power | 12.0 kW |
| Input power | 72.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 1x Cooling unit
- 1x stabilizer
- 1x protection device / light barriers
