Max. travel X-axis | 2540 mm |
Max. travel Y-axis | 8150 mm |
Max. travel speed | 200 m/min |
Position accuracy | ± 0.03 mm/m |
Max. machine table load | 9400 kg |
Acceleration | 2.8 G |
VPE | 1 |

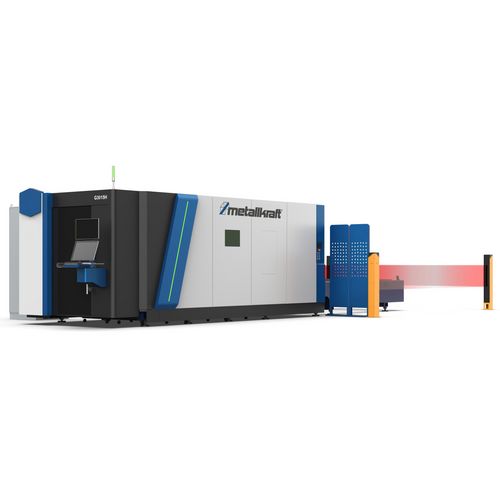

Laser cutting system
with automatic shuttle table
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4650175
Max. travel X-axis | 2540 mm |
Max. travel Y-axis | 8150 mm |
Max. travel speed | 200 m/min |
Position accuracy | ± 0.03 mm/m |
Max. machine table load | 9400 kg |
Acceleration | 2.8 G |
VPE | 1 |
Cutting performance | |
---|---|
Material thickness max. mild steel | 70 mm |
Material thickness max. stainless steel | 70 mm |
Material thickness max. aluminum | 60 mm |
Material thickness max. brass | 25 mm |
Explanation Material thickness max. | Information on the maximum material thickness depending on the cutting gas used (nitrogen, oxygen, air) |
Dimensions and weights | |
---|---|
Length approx. | 20700 mm |
Width/depth approx. | 4150 mm |
Height approx. | 2480 mm |
Weight approx. | 28800 kg |
Electrical Data | |
---|---|
Laser power | 30 kW |
Supply voltage | 400 V |
Mains frequency | 50 Hz |
