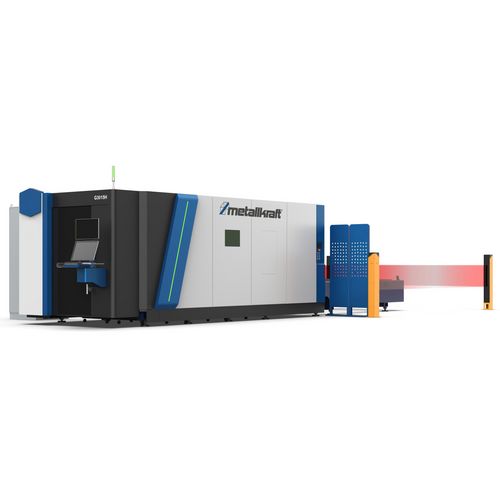

Laser cutting system
GH 3015 6kW
with automatic shuttle table
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4650105
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Extra stable welded construction for high stability and high cutting precision
- High-quality components from the market leaders in their sector

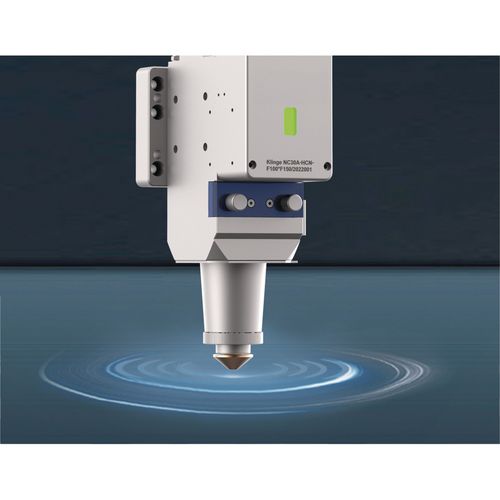

- Laser head from HSG Laser: Higher focusing speed than comparable laser cutting units. This results in a higher piercing speed for thicker materials. A double protective lens extends the service life of the main lens
- Laser source from Raycus: One of the best-known manufacturers of efficient and high-quality laser sources that achieve high output powers
- Maximum bonding speed of up to 200 m/min
- Maximum acceleration of up to 4.0 G
- Updated bus control system with intelligent vibration control, double drive torque protection system, air pressure DA correction and new algorithm with intelligent path optimization
- Waste cart with high-density anti-fire plates for increased thermal protection of the bed
- New aluminum cross beams for high dynamic performance and improved processing efficiency
| Max. travel X-axis | 1524 mm |
| Max. travel Y-axis | 3048 mm |
| Max. travel speed | 200 m/min |
| Position accuracy | ± 0.03 mm/m |
| Max. machine table load | 885 kg |
| Acceleration | 4 G |
| VPE | 1 |
| Cutting performance | |
|---|---|
| Material thickness max. mild steel | 25 mm |
| Material thickness max. stainless steel | 20 mm |
| Material thickness max. aluminum | 16 mm |
| Material thickness max. brass | 12 mm |
| Explanation Material thickness max. | Information on the maximum material thickness depending on the cutting gas used (nitrogen, oxygen, air) |
| Dimensions and weights | |
|---|---|
| Length approx. | 9843 mm |
| Width/depth approx. | 2280 mm |
| Height approx. | 2600 mm |
| Weight approx. | 6900 kg |
| Electrical Data | |
|---|---|
| Laser power | 6 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Cooling unit
- Stabilizer
- Protective device / light barriers
