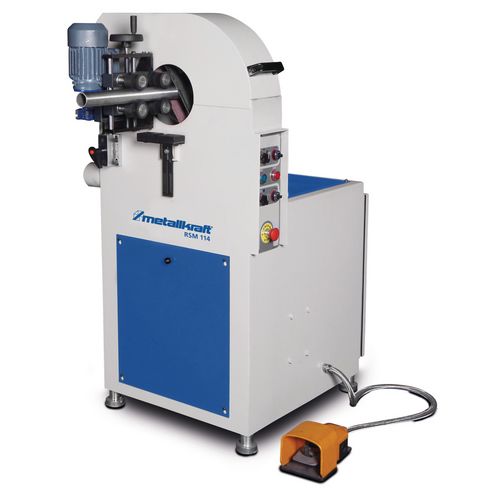

    Pipe grinding machine

    RSM 114

    For grinding round and elliptical material

    13.350,00 EUR excl. Tax / pc(s).
    15.886,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    12.999,00 EUR excl. Tax / pc(s).
    15.468,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 3700114

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Feed and sanding belt speed infinitely adjustable
    • Even deburring, cleaning or polishing of pipes

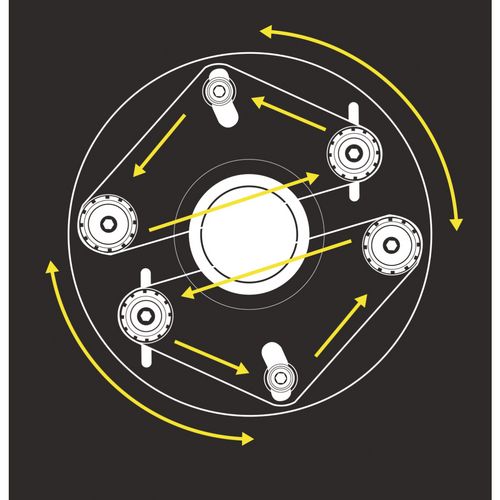

    • Two oppositely running sanding belts on a rotating head, the rotation of the workpiece is eliminated

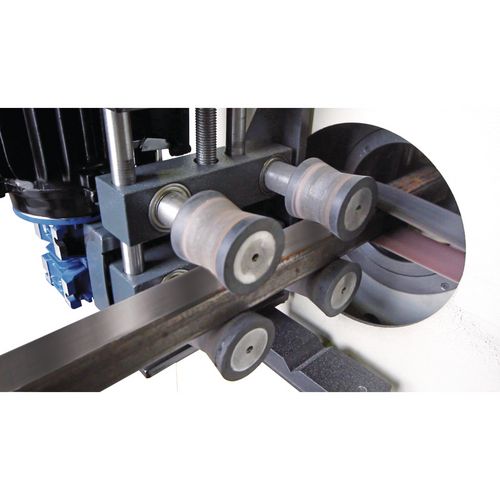

    • Feed unit with rubber rollers ensures safe transport of the workpiece
    • Profile is simply tensioned by handwheel in feed unit
    • Connecting piece for suction
    • Easy sanding belt change
    • Foot pedal for controlling the rotary head



    Dimensions and weights
    Length approx.650 mm
    Width/depth approx.800 mm
    Height approx.1300 mm
    Weight approx.265 kg
    Electrical Data
    Drive motor output4.75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction
    Extraction duct nominal width outside76 mm
    Sanding machine
    Sanding belt length940 mm
    Sanding belt width50 mm
    Circumferential belt speed(s)16 m/s
    Work table
    Feed speed3 – 22 m/s
    Workpiece
    Min. pipe diameter10 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
