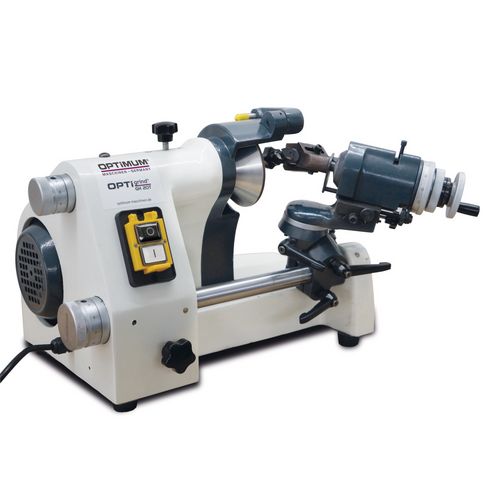

    Tool grinding machine

    OPTIgrind GH 20 T

    Versatile use for different tool geometries

    989,00 EUR excl. Tax / pc(s).
    1.176,91 EUR incl. 19% Tax / pc(s).
    Promotional price *
    899,00 EUR excl. Tax / pc(s).
    1.069,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3100125

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Universal use thanks to versatile swivel and adjustment options
    • Many pan and adjustment options for making engraving stylus
      (cylindrical, centric, conical)
    • For grinding punches, twist drills, electrodes, turning tools, centering tips, etc.
    • High precision due to robust machine body and vibration-free driven precision grinding spindle
    • Easy handling and operation

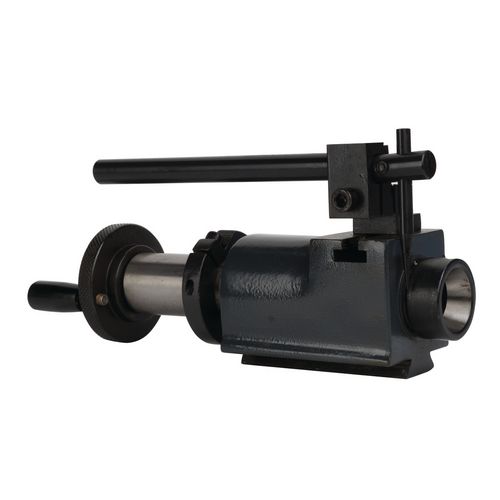

    • Index head with 24 locking positions
    • Adjustable puller

    Note: CEKON plug is not part of the scope of delivery!



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Grinding disc speed, diamond5000 min¯¹
    Max. grinding speed35 m/s
    Speed motor2750 min¯¹
    Tool holder travel140 mm
    Tool holder fine adjustment18 mm
    Longitudinal fine adjustment6 mm
    Adjustable angle vertical/rear side0 – 40 °
    Adjustable angle horizontal/conical grinding0 – 180 °
    Adjustable angle negative0 – 52 °
    Latching setting angle of rotation22 x 15 / 180 °
    Clamping range1 – 12 mm
    Clamping jaw type385E (5C), DIN 6341
    Explanation about latching setting angle of rotationTwo detent positions for regrind drill are occupied
    VPE1
    Dimensions and weights
    Length approx.350 mm
    Width/depth approx.450 mm
    Height approx.340 mm
    Weight approx.45 kg
    Electrical Data
    Drive motor output0.37 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

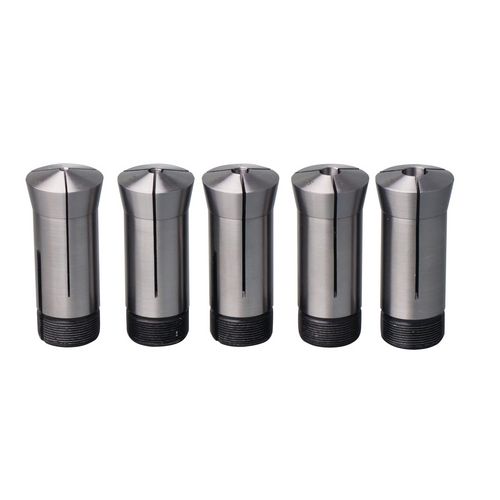

    • Collets 385E (5C) DIN 6341 Ø 37.5 mm; L = 89 mm; 20 °
    • Sizes Ø 4/6/8/10/12 mm

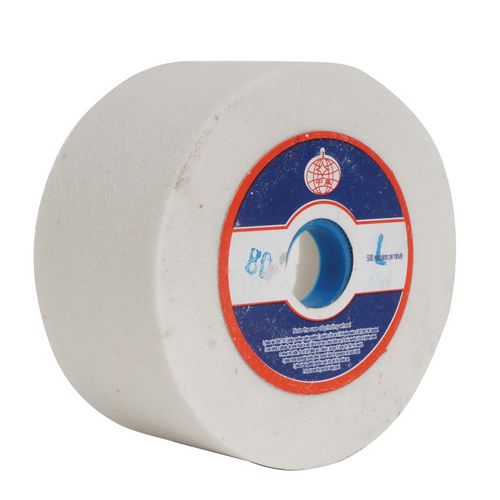

    • Corundum cup grinding wheel Ø 100 x 50 x Ø 20 mm
    • Diamond cup grinding wheel Ø 100 x 50 x Ø 20 mm (already assembled when delivered)

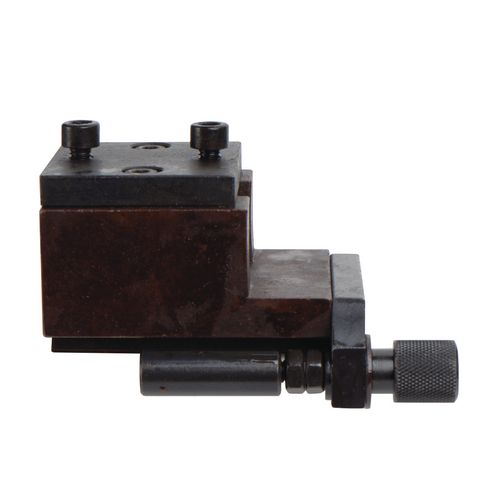

    • Apparatus for regrinding turning steels
    • Apparatus for regrinding end milling cutters

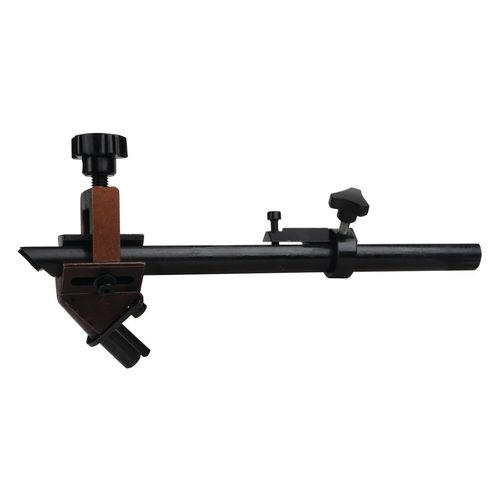

    • Apparatus for regrinding twist drills

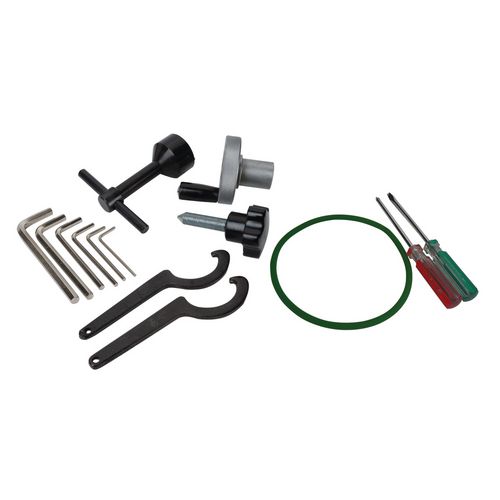

    • operating tool
