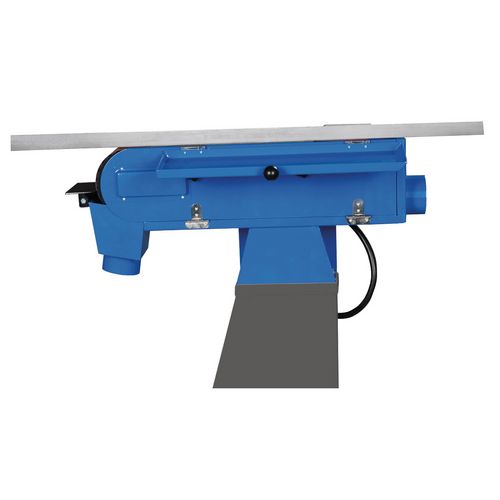

    Belt sander

    MBSM 150-240-2 AS

    For sanding surfaces, edges and rounding off

    1.529,00 EUR excl. Tax / pc(s).
    1.819,51 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.399,00 EUR excl. Tax / pc(s).
    1.664,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3923316

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Powerful motor and vibration-free operation for the best sanding results
    • Continuous face sanding surface thanks to removable attachments enables sanding of even long workpieces
    • With two belt speeds
    • Quick clamping system enables fast sanding belt changes
    • Integrated extraction system in the base with polyester filter pockets
    • One extraction nozzle each directly on the spark box and on the rear belt roller
    • Can be used with and without suction
    • Easy adjustment of the belt tracking via adjusting screw on the front contact roller
    • Automatic retensioning of the sanding belt thanks to spring-loaded belt tensioning system
    • Infinitely tiltable sanding unit
    • Fold-away protective screen



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.1010 mm
    Width/depth approx.560 mm
    Height approx.1140 mm
    Weight approx.113 kg
    Electrical Data
    Drive motor output3 / 4 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction
    Extraction duct nominal width outside2 × 100 mm
    Motor power suction0.37 kW
    Noise emission
    Emissions sound pressure level at workstation Lp (idling without extraction unit)87 dB(A)
    Sanding machine
    Max. sanding width150 mm
    Sanding belt length2000 mm
    Sanding belt width150 mm
    Graphite support length495 mm
    Graphite support width150 mm
    Circumferential belt speed(s)18/36 m/s
    Drive wheel diameter240 mm
    Contact wheel diameter200 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Sanding belt K80
    • dust bag
    • 2x aluminum suction hose Ø100mm
