KRBS 101 AS

2.069,00 EUR excl. Tax / pc(s).
2.462,11 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3921005

Are you interested in this product?

Put a request

Find Trader

Productdetails

Integrated extraction system
For deburring with practical workpiece support and spark box

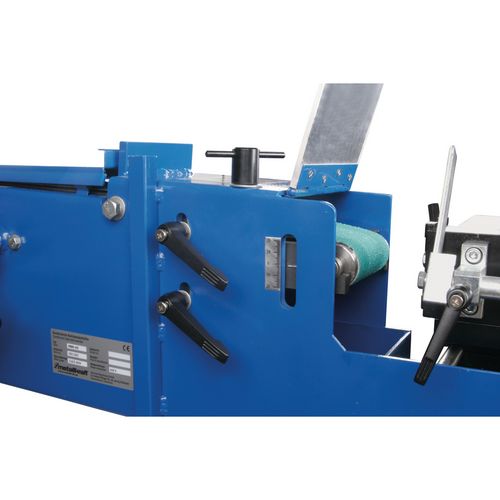

Convenient operation thanks to easily adjustable clamping device
The rotating clamping jaws of the clamping device enable secure clamping of square tubes, round tubes and flat steel
Adjustable grinding angle from 30 - 90° and from 0° - 60
The front contact roller can be replaced quickly and easily without tools thanks to the optimized quick-change holder
Particularly durable thanks to larger and improved roller bearings
Practical contact roller holders integrated in the base frame
Extensive range of contact rollers for various pipe diameters available as accessories
Quick changeover between pipe grinding and belt grinding possible
Powerful motor
Almost all settings can be made without tools (operating tool included in the scope of delivery)
Large, foldable protective screen with optimum field of vision
Two belt speeds for optimum adaptation to the respective material (15 m/s ideal for stainless steel and aluminum, 30 m/s perfect for steel)
With two easily removable spark boxes

Dimensions and weights
Length approx.	1250 mm
Width/depth approx.	750 mm
Height approx.	1140 mm
Weight approx.	159 kg

Electrical Data
Drive motor output	2.5 / 3.3 kW
Motor speed(s)	1400 / 2800 min¯¹
Supply voltage	400 V
Mains frequency	50 Hz

Extraction
Extraction duct nominal width outside	2 x 74 mm
Extraction duct nominal width inside	2 x 70 mm

Sanding machine
Sanding belt length	2000 mm
Sanding belt width	100 mm
Circumferential belt speed(s)	15/30 m/s
Adjustable grinding angle	30 – 90 (0 – 60) °

Workpiece
Min. pipe diameter	20 mm
Max. pipe diameter	78 mm

VPE

Unit: pc(s).
Packaging unit: 1

1 x K 40 grit sanding belt for steel and stainless steel
Two spark boxes
One wrench
Contact roller 42 mm
Dust bag
