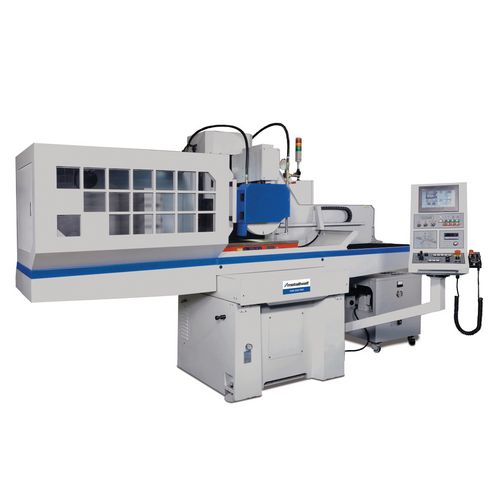

    Productimage for FSM 4080 PRO
    Brandimage to Product FSM 4080 PRO

    Precision surface grinding machine

    FSM 4080 PRO

    With touch control, for flat grinding, plunge grinding and cross grinding

    68.890,00 EUR excl. Tax / pc(s).
    81.979,10 EUR incl. 19% Tax / pc(s).
    Promotional price *
    67.999,00 EUR excl. Tax / pc(s).
    80.918,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3940408

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails



    Standard equipment

    • 10" touchscreen NC control G1 for Y and Z axes
    • Grinding modes: flat grinding, plunge grinding, cross grinding
    • Spindle bearing class P4 from NSK guaranteed concentricity of 0.002 mm Turcite-B coating in the X and Z axes for grinding heavy workpieces
    • Backlash-free ball screws in the Y and Z axes
    • NC-controlled parallel pull-off and compensation device above the machine table
    • Coolant device with magnetic separator
    • Partial encapsulation of the work table with monitored door
    • Infinitely variable speed of the grinding spindle thanks to an inverter
    • Automatic, hydraulic X-axis feed
    • Stepless adjustment of the X-axis speed via hydraulic reg elventil
    • Automatic, motorized Z-axis feed driven by servo motor
    • Adjustment of the end positions in X and Z-axis via joystick
    • Automatic, motorized Y-axis feed with servo motor
    • electronic handwheel for the Y and Z axes
    • automatic central lubrication of all axes/guides

    optional special equipment

    • NC controlled parallel pulling and compensating device on the grinding head
    • Automatic balancing device
    • Full encapsulation of the grinding area with two sliding doors
    • Additional grinding wheel flanges
    • Increased motor performance



    • 10" touchscreen NC control G1 for Y and Z axis
    • Spindle bearing class P4 from NSK guaranteed concentricity of 0.002 mm
    • Robust V flat guide with Turcite-B coating in the X and Z axes for grinding heavy workpieces
    • Backlash-free ball screws in the Y and Z axes
    • Optional extras: NC-controlled parallel puller and compensator on the grinding head, semi or fully automatic balancing device, full encapsulation of the grinding area, and much more



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.3600 mm
    Width/depth approx.2650 mm
    Height approx.2560 mm
    Weight approx.3700 kg
    Electrical Data
    Total rated value8 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Grinding wheel(s)
    External diameter405 mm
    Width50 mm
    Drill hole127 mm
    Spindle
    Motor power3.75 kW
    Speed1450 min¯¹
    Speed ​​controlstepless
    Surface grinding table
    Clamping surface length800 mm
    Clamping surface width400 mm
    X axis
    Travel speed5 – 25 m/min
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Balancing device
    • Operating tool



    Clamping plateFine Pole Electromagnetic Clamping Plate
    Splash guardSemi enclosed
    Adjustment of the cross feedAutomatic
    Demagnetizing deviceAutomatic
    Parallel hone deviceNC controlled parallel pulling and compensating device above the machine table
    Coolant devicewith magnetic separator
    Work lightLED working light
    Alignment feet5 Alignment plates
