    Brandimage to Product FSM 3060 DT

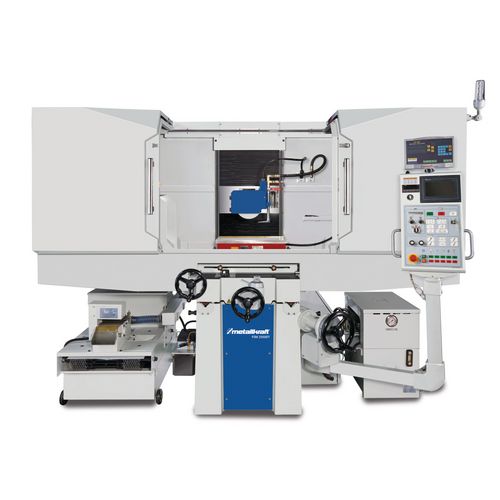

    Precision surface grinding machine

    FSM 3060 DT

    With NC-controlled vertical feed

    38.990,00 EUR excl. Tax / pc(s).
    46.398,10 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Sicherheitsdatenblatt

    Safety and warning notices

    Art.-No. 3942306

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For precision surface grinding work
    • Maximum rigidity and stability due to stress-free annealed and hardened cast iron construction

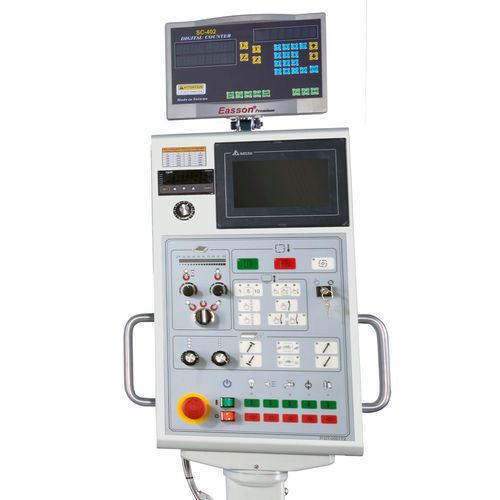

    • User-friendly touchscreen control: HMI graphic interface; all functions and grinding feed controllable; five program memories; function and error display; 7" screen size
    • Automatic feed control AD5: Various sanding cycles are available: Surface grinding with infeed at the start point, flute grinding with infeed at the start point, flute grinding with infeed at the start and end point. The infeed of the grinding wheel can be customized depending on the workpiece. The overall grinding dimension is divided into coarse and fine infeed, the infeed steps can be freely entered with a minimum resolution of up to 0.001 mm, depending on the application. The option of programming dead cycles after a certain number of infeed steps as well as passes for burn-out after reaching the sanding dimension ensures the best sanding results
    • Electromagnetic clamping plate
    • Automatic demagnetization device
    • Automatic adjustment of the cross feed
    • Cross sanding device
    • Recirculating ball screw and manual fine feed in the transverse axis
    • Longitudinal stroke adjustment via solenoid valve
    • Signal light to indicate the current operating mode
    • Quantity-controlled central lubrication system
    • Coolant device
    • Splash guard at the front, sides and rear
    • Alignment feet



    Data sheets
    Sicherheits- und Warnhinweise
    Sicherheitsdatenblatt
    Safety and warning notices
    Dimensions and weights
    Length approx.2645 mm
    Width/depth approx.2022 mm
    Height approx.1800 mm
    Weight approx.1700 kg
    Electrical Data
    Drive motor output3.75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Grinding wheel(s)
    External diameter355 mm
    Width38 mm
    Drill hole127 mm
    Spindle
    Speed1450 min¯¹
    Surface grinding table
    Clamping surface length600 mm
    Clamping surface width300 mm
    X axis
    Travel speed5 – 25 m/min
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Grinding wheel flange
    • Grinding wheel
    • Balancing mandrour
    • Operating tool



    Clamping plateElectro Magnet
    Splash guardfront, rear and sideways
    Adjustment of the cross feedAutomatic
    Demagnetizing deviceAutomatic
    Parallel hone deviceYes
    Coolant deviceYes
    Work lightHalogen working light according to IP65
    Alignment feetYes
