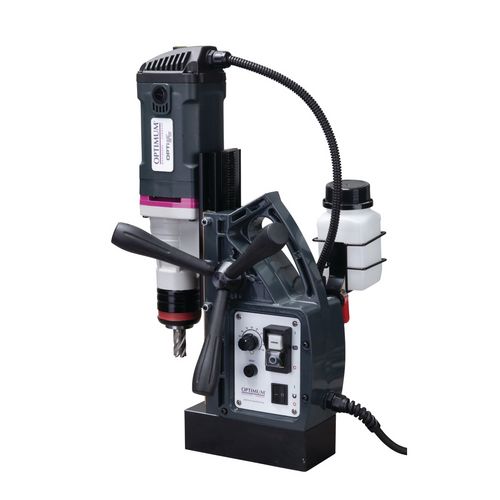

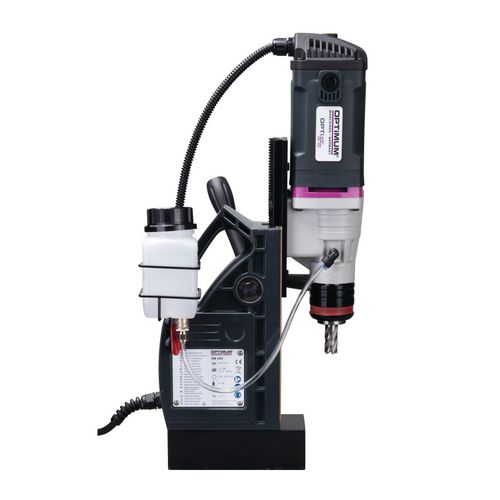

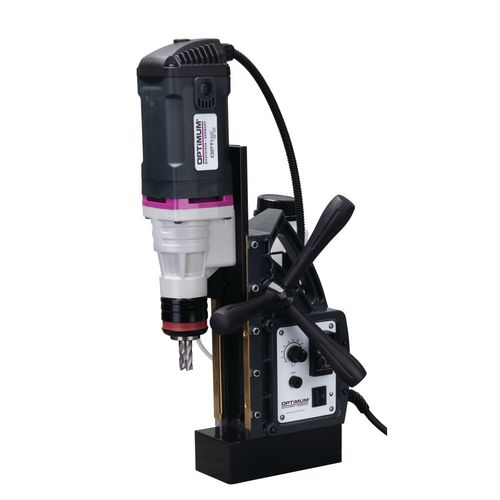

Magnetic core drill
OPTIdrill DM 50V
Premium machine with continuously variable speed control and maximum feature set
729,00
EUR excl. Tax / pc(s).
867,51 EUR incl. 19% Tax / pc(s).
867,51 EUR incl. 19% Tax / pc(s).
Promotional price *
649,00 EUR excl. Tax / pc(s).772,31 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3071150
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Great performance despite small size and low weight
- Stable drill guide due to long and low-mounted sleeve holder
- Device is ground with dual insulation, and thus ideal for the construction site

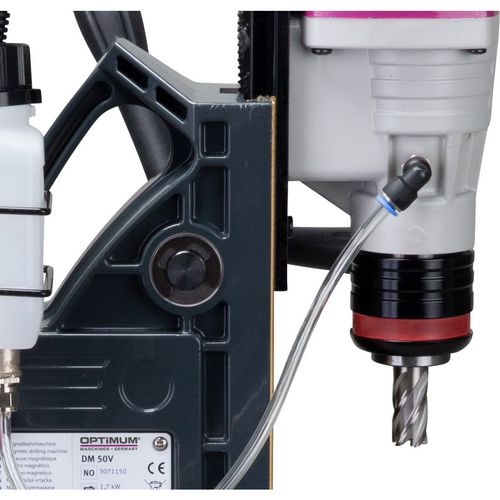

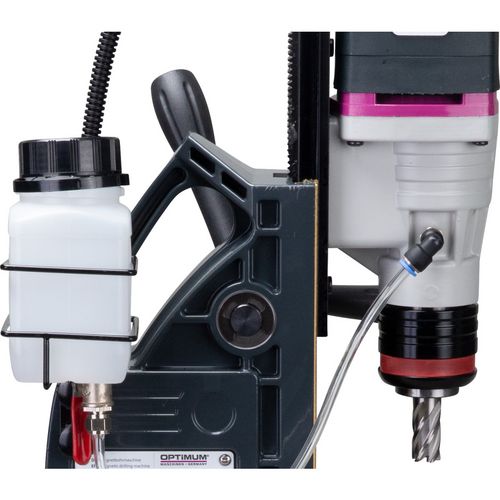

- With cooling - coolant is fed through the drill tip
- Conversion from core to full drilling in just a few steps
- Safe and reliable function
- Internal self-lubricating function guarantees a longer transmission service life.
- High magnetic holding force

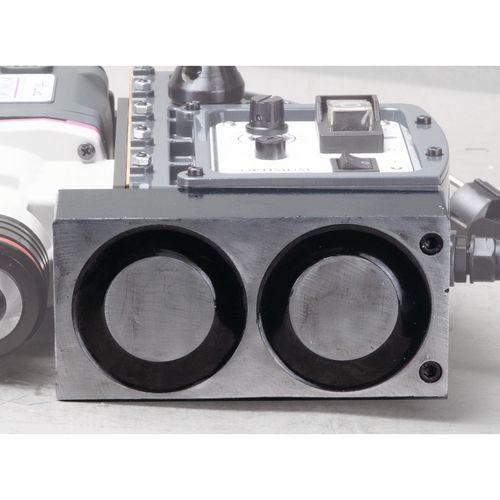

- Magnetic base has a wear-resistant design to enhance the service life of the magnetic base and thus extend the maximum magnetic holding force
Equipment details:

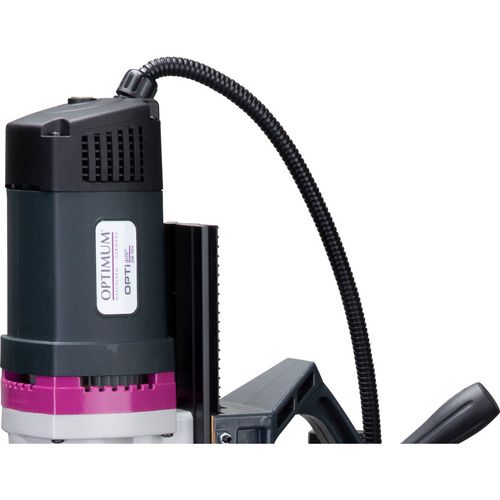

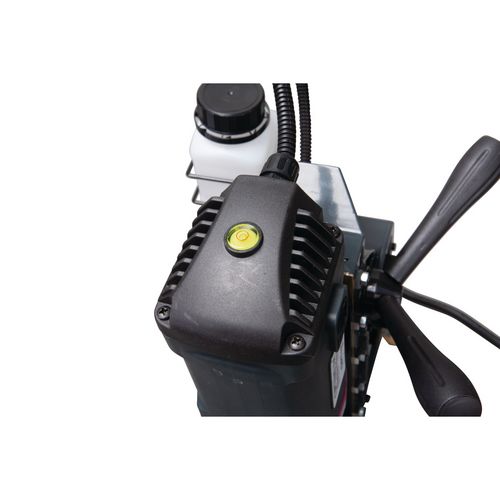

Motor
- Powerful motor with high torque, low maintenance
Guides
- Safe guides for stability and precision

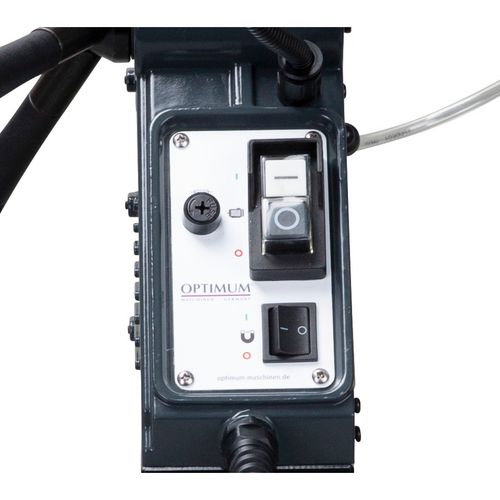

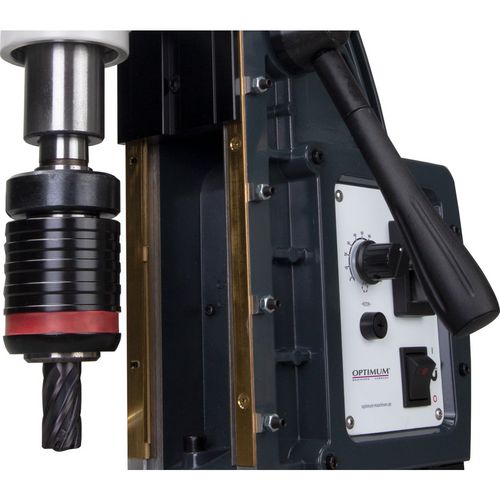

Control panel
- Confusion-free and ergonomic arrangement of switches

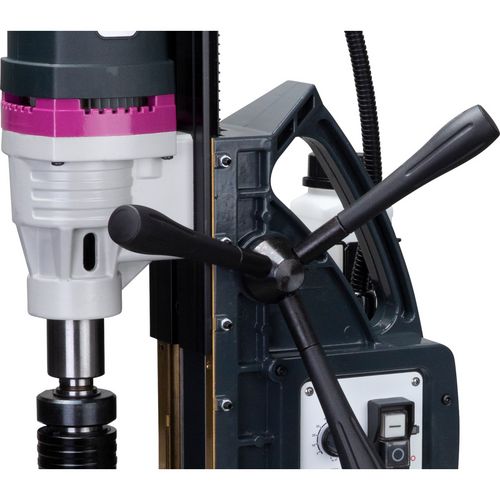

Handles
- Ergonomic, robust handles for "balanced" holding/fastening of the machine.
- Robust crank
| Collet | |
|---|---|
| Spindle | fixed |
| Drill | Weldon 3/4" |
| Core drills | |
|---|---|
| Core drills Ø max. with manual feed | 50 mm |
| Max. drilling depth core drilling with manual feed | 50 mm |
| Dimensions and weights | |
|---|---|
| Height (product) min. | 300 mm |
| Height (product) max. | 470 mm |
| Length approx. | 250 mm |
| Width/depth approx. | 220 mm |
| Weight approx. | 11 kg |
| Drive output | |
|---|---|
| Absorbed power drive motor | 1.7 kW |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Full drills | |
|---|---|
| Drill Ø max. full drilling directly mounted | 13 mm |
| Magnet | |
|---|---|
| Holding force | 15.6 kN |
| Magnet base length | 166 mm |
| Magnet base width | 80 mm |
| Speed range | |
|---|---|
| Idle (CW run) | 100 – 810 min¯¹ |
| Speed control | stepless |
| Standards and certifications | |
|---|---|
| EMV-Class | C2 |
| Standard | DIN EN 55011 |
| Protection class | IP 42 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

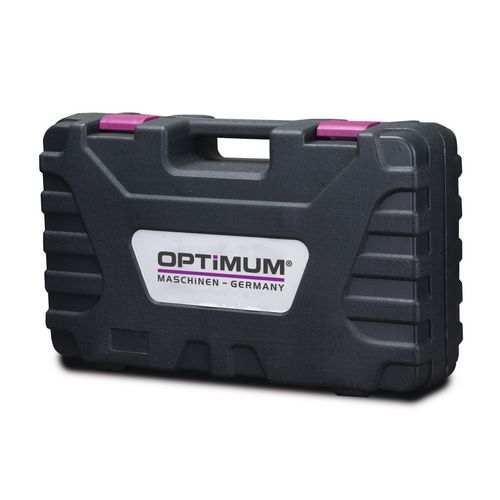

- Transport case
- Operating tool
- Safety strap
- quick-change drill chuck
| Vario drive | ✔ |
| Spindle sleeve feed | Manual |
