Siemens Manual Machine Plus
Enables the transition from conventional machines to CNC programming. Simple cycle control
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3584150

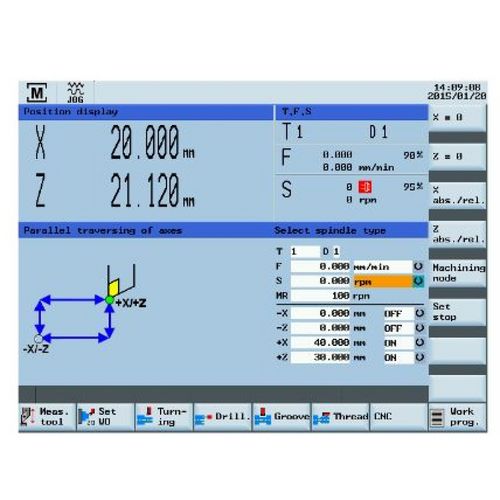

With the Manual Machine + (MM+) package, the SINUMERIK 808D offers you simple operation of the machine tool, in that all operating actions are supported by graphic help screens and operation is possible as with a conventional machine tool.
The functions provided enable you to set up the machine quickly and practically for machining. These are in particular the determination of the workpiece position in the machine as well as the maintenance and measurement of the tools used.
A comfortable DIN/ISO editor with complete GCode according to DIN66025 and ISO dialect is available for programming. The graphic input for technological machining cycles and contours supports you during programming.
With the SINUMERIK 808D you have a powerful complete system at your disposal, which covers all the required areas of application without the need for subsequent commissioning and training:
In the Manual Machine operating area, you can machine workpieces without having to create a part program for this purpose. The following functions are available:
For the definition/parameterization of the function, you are supported by convenient input masks with help screens.
The cross-slide is controlled via handwheels or axis direction switches/approval buttons or via the axis direction keys. The spindle is controlled via spindle direction switches or via individual keys for feed, stop and retract.
Note: The machine manufacturer can specify in which mode the control is to run up (MM+ or standard).
The advantages at a glance:
User manual
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts can not be retrofitted and are available only when ordering new machines.
