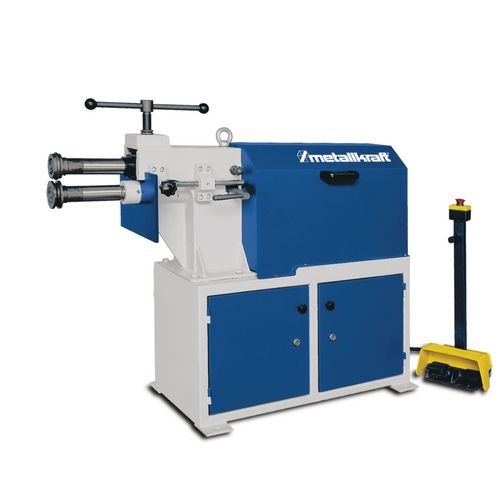

SBM 250-25 E

5.269,00 EUR excl. Tax / pc(s).
6.270,11 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 3814004

Are you interested in this product?

Put a request

Find Trader

Productdetails

Heavy and stable steel construction
self-braking engine
Fußpedalbedienung
adjustable lower shaft
adjustable stop plate
Steel shafts mounted with bronze bushes
4 set of standard rolls
with underframe
powerful 400 volt engine

Please specify when ordering material to be edited!

Note on technical data:

Sheet thickness max .: Performance data based on material with tensile strength 400N / mm²

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Roller length	250 mm
Roller diameter	96 mm
Max. bending performance in steel 400 N/mm²	2.5 mm
Collar width	160 mm
Roller speed	5 m/min
VPE	1

Dimensions and weights
Length approx.	1400 mm
Width/depth approx.	550 mm
Height approx.	1120 mm
Weight approx.	350 kg

Electrical Data
Drive motor output	1,5 kW
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1

bending machine
Standard wheels: S1-S4
Special key for disassembly and assembly of the rollers
pedal
