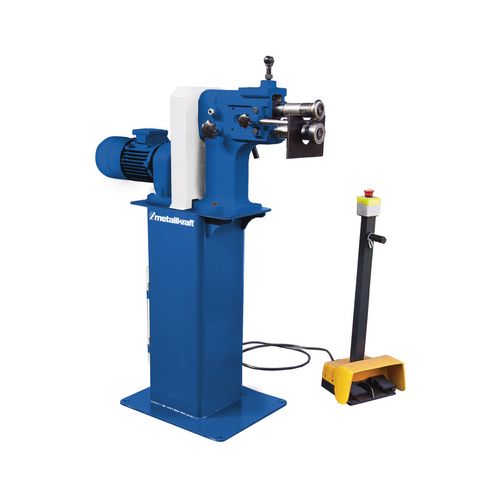

    Motorized bead bending machine

    SBM 140-12 E

    2.859,00 EUR excl. Tax / pc(s).
    3.402,21 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.759,00 EUR excl. Tax / pc(s).
    3.283,21 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3814003

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Heavy and stable cast iron construction
    • Self-braking engine
    • Foot pedal operation
    • Adjustable lower shaft
    • Steel shafts
    • 8 set of standard rolls
    • With subframe
    • Powerful 400 volt engine
    • Adjustable stop plate


    Please specify processed material by order!


    Note on technical data:


    Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Roller length140 mm
    Roller diameter62 mm
    Max. bending performance in steel 400 N/mm²1.2 mm
    Collar width100 mm
    Roller speed8 m/min
    Protection classIP55
    VPE1
    Dimensions and weights
    Length approx.900 mm
    Width/depth approx.1350 mm
    Height approx.450 mm
    Weight approx.110 kg
    Electrical Data
    Drive motor output0,75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • bending machine

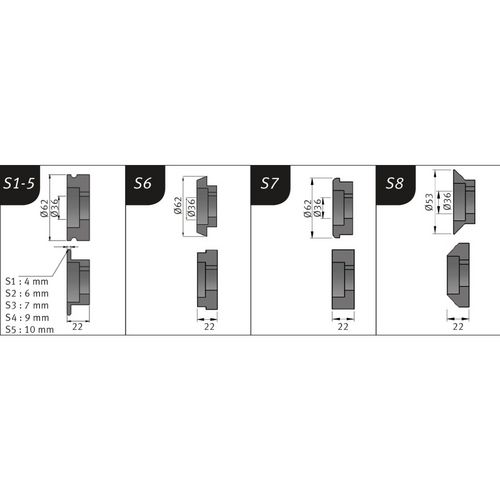

    • Standard wheels: S1-S8
    • Special key for disassembly and assembly of the rollers
    • pedal
