    Brandimage to Product SBM 140-12

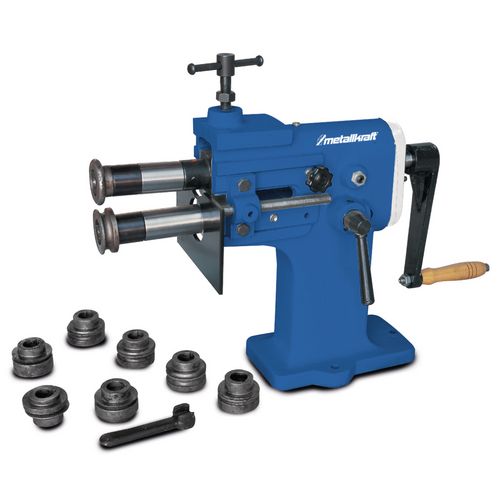

    Manual bead bending machine

    SBM 140-12

    869,00 EUR excl. Tax / pc(s).
    1.034,11 EUR incl. 19% Tax / pc(s).
    Promotional price *
    799,00 EUR excl. Tax / pc(s).
    950,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3814002

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Heavy and stable cast iron construction
    • handy and easy
    • adjustable sub-waves
    • steel shafts
    • adjustable stop plate


    Please specify when ordering material to be edited!


    Note on technical data:


    Sheet thickness max .: Performance data based on material with tensile strength 400N / mm²



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Roller length140 mm
    Roller diameter62 mm
    Max. bending performance in steel 400 N/mm²1.2 mm
    Collar width100 mm
    VPE1
    Dimensions and weights
    Length approx.560 mm
    Width/depth approx.220 mm
    Height approx.500 mm
    Weight approx.50 kg
    Unit: pc(s).
    Packaging unit: 1

    • bending machine

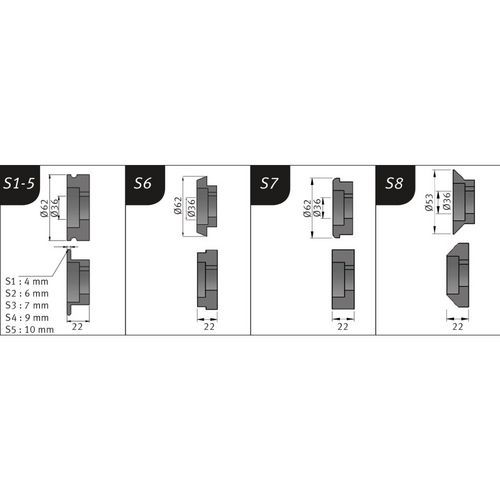

    • Standard wheels: S1-S8
    • Special key for disassembly and assembly of the rollers
