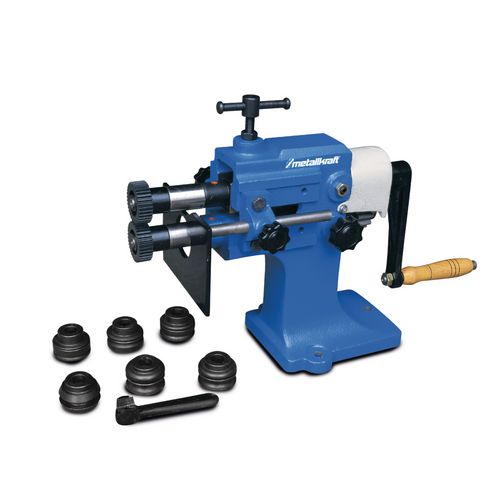

Manual bead bending machine
SBM 110-08
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3814001
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy and stable cast iron construction
- handy and easy
- adjustable sub-waves
- steel shafts
- adjustable stop plate
Please specify when ordering material to be edited!
Note on technical data:
Sheet thickness max .: Performance data based on material with tensile strength 400N / mm²
| Roller length | 110 mm |
| Roller diameter | 52 mm |
| Max. bending performance in steel 400 N/mm² | 0.80 mm |
| Collar width | 80 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 380 mm |
| Width/depth approx. | 180 mm |
| Height approx. | 380 mm |
| Weight approx. | 30 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- bending machine

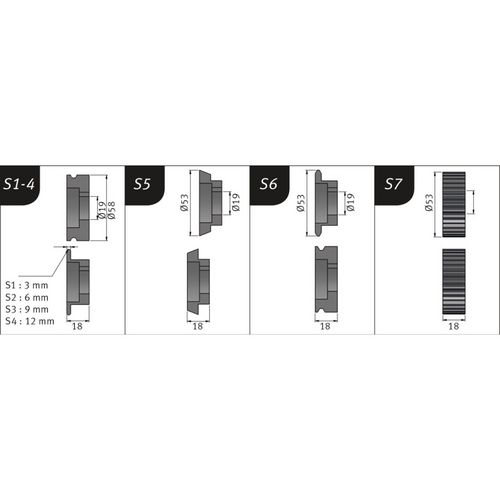

- Standard roles: S1-S7
- Special key for disassembly and assembly of the rollers
