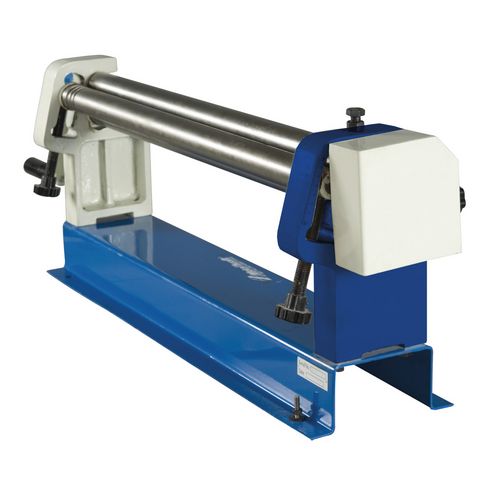

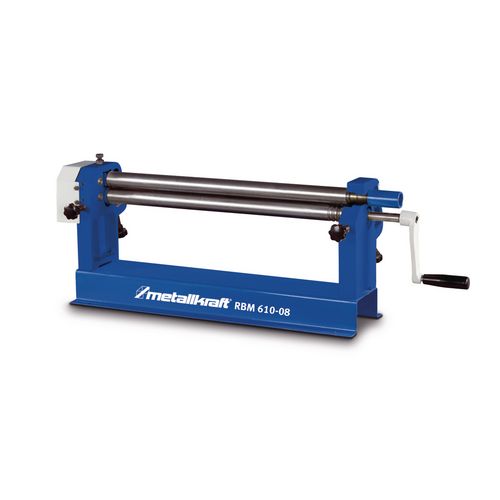

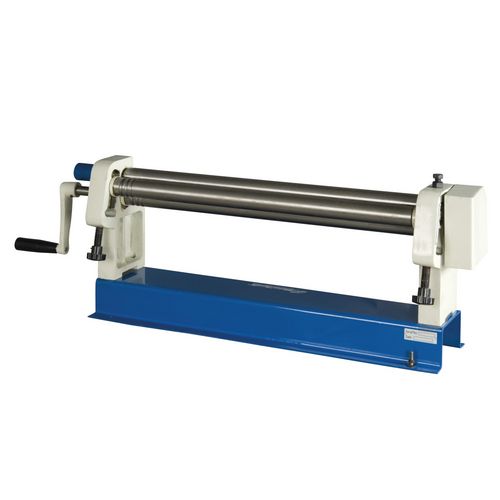

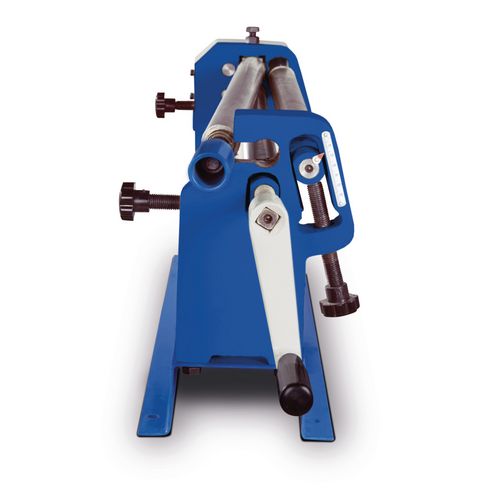

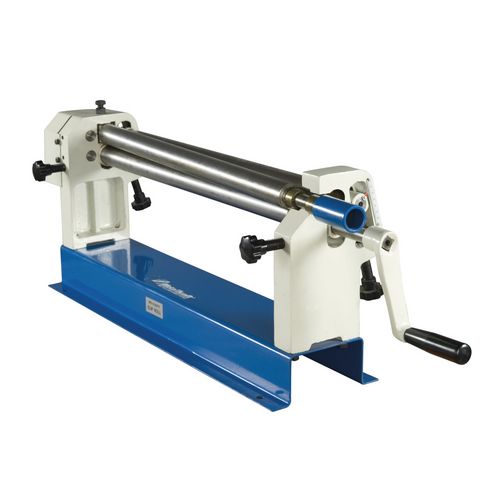

Manual plate rolling machine
RBM 610-08
Asymmetrical with three rollers
279,00
EUR excl. Tax / pc(s).
332,01 EUR incl. 19% Tax / pc(s).
332,01 EUR incl. 19% Tax / pc(s).
Promotional price *
269,00 EUR excl. Tax / pc(s).320,11 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3780618
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Rolls made of steel
- Swing-out top roller for easier removal of the workpiece
- Asymmetric roller arrangement for easy pre-bending
- Tiltable side roller for conical bending
- Clamping and side roller with wire insert groove
- Roller drive via hand crank and gearbox
- Particularly handy and therefore suitable for work in confined spaces
- Due to the low wave strength optimally suitable for filigree applications
- 3-roll bending machine for the production of all round shaped parts such as pipes, cylinders, etc.
- Simple and solid construction
Room amenities:
- Lubrication possible via grease nipple (RBM 305)
- The upper roller is adjustable, thus easy removal of the finished workpiece
- Rear roller individually adjustable, thus also conical work possible
- Settings based on comfortable large-sized roller set screws
| Bending performance | |
|---|---|
| Max. pre-bending performance in steel 400 N/mm² | 0.80 mm |
| Min. bending diameter | 60 mm |
| Dimensions and weights | |
|---|---|
| Max. working width | 610 mm |
| Top roller diameter | 38 mm |
| Wire insert groove diameter | 4.8 / 6.4 / 8 mm |
| Length approx. | 885 mm |
| Width/depth approx. | 220 mm |
| Height approx. | 340 mm |
| Weight approx. | 37 kg |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
