Semi-motoric swivel bending machine
MSBM 2020-25
In heavy design with foot control
17.490,00
EUR excl. Tax / pc(s).
20.813,10 EUR incl. 19% Tax / pc(s).
20.813,10 EUR incl. 19% Tax / pc(s).
Promotional price *
16.899,00 EUR excl. Tax / pc(s).20.109,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3779031
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Semi-motor version - manual operation of the upper cheek, bending process motorised
- Designed for professional use
- With foot operation
- heavy, compact weldment
- With continuous sharp bending rail

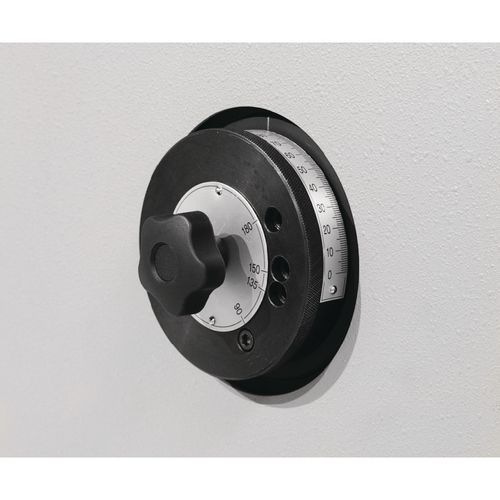

- Standard with manual adjustment of the bending angle by means of nonius ring
- Particularly low-maintenance
- S-models with segmented top tools
- SH models with high, segmented goat foot tools
- Hardening of standard tools available on request: sharp bending rail and bending strip hardened, segmented tools and bending strip hardened, segmented goat foot tools and bending strip hardened
- Further swivel bending machines available on request
Quality Made in Europe
| Max. working width | 2020 mm |
| Max. passageway between top + bottom beam | 140 mm |
| VPE | 1 |
| Bending capacity | |
|---|---|
| 400N/mm² | 2.5 mm |
| Stainless steel | 1.75 mm |
| Explanation stainless steel | For bending stainless steel the optional hardening of the tools is required |
| Aluminium | 3 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 2975 mm |
| Width/depth approx. | 560 mm |
| Height approx. | 1290 mm |
| Weight approx. | 1450 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
