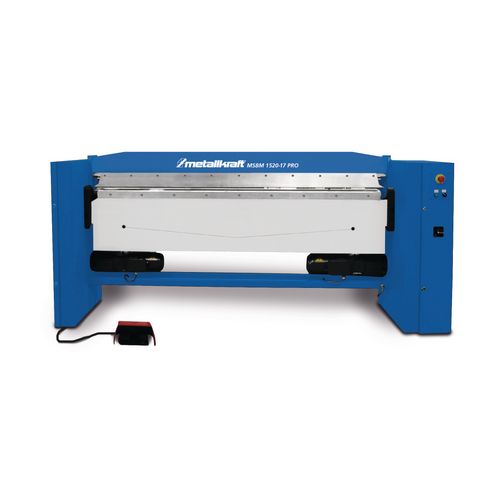

Motorized swing bending machine
MSBM 1520-17 PRO
Heavy-duty design with motorized clamping of the workpiece
17.550,00
EUR excl. Tax / pc(s).
20.884,50
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3779060
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Foot operated
- Heavy, compact welded construction
- Powerful drive by Lenzemotors
- With continuous sharp bending bar
- In series with manual adjustment of the bending angle
- Especially low-maintenance
- The workpiece is clamped by a motorized mechanism
- S-models with segmented upper tools
- SH-models with high, segmented casting foot tools
Available on request
- Other models
- Standard tools hardened
- Hardened sharp bending bar and bending bar
- Segmented tools and hardened bending bar
- Segmented casting foot tools and bending bar hardened
| Max. working width | 1520 mm |
| Max. passageway between top + bottom beam | 110 mm |
| VPE | 1 |
| Bending capacity | |
|---|---|
| 400N/mm² | 1.75 mm |
| Stainless steel | 1.3 mm |
| Explanation stainless steel | For bending stainless steel the optional hardening of the tools is required |
| Aluminium | 2.1 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 2150 mm |
| Width/depth approx. | 700 mm |
| Height approx. | 1100 mm |
| Weight approx. | 810 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
