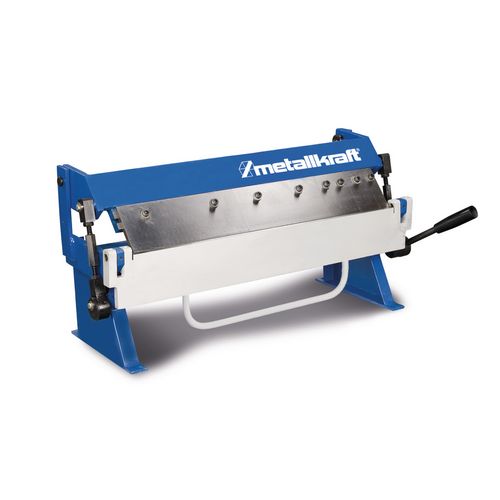

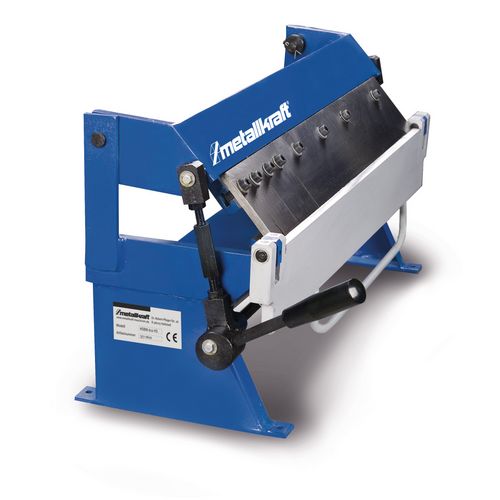

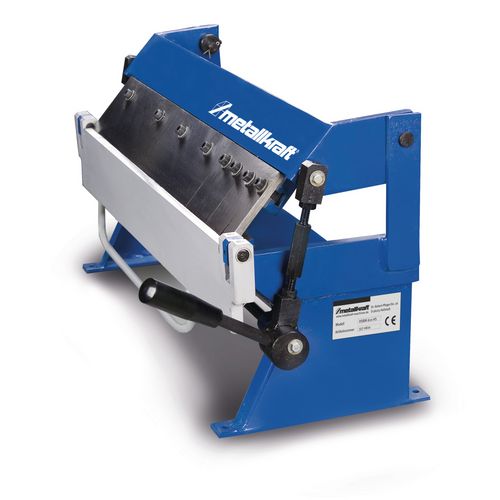

Manual swing bending machine
HSBM 610 HS
279,00
EUR excl. Tax / pc(s).
332,01 EUR incl. 19% Tax / pc(s).
332,01 EUR incl. 19% Tax / pc(s).
Promotional price *
259,00 EUR excl. Tax / pc(s).308,21 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3772610
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Inexpensive beginner models for craftsmen
- Simple design and solid construction ensure accurate work
- Secure fixing of the workpiece via clamping device
HSBM 305 HS / 610 HS:
- Segmented upper cheek
- Ideal for the production of all profiles up to all around edged boxes
- Fast, user-friendly adjustment of the upper beam via eccentric
- Upper beam for high U-profiles
- Swivel bending over bow handle
- Easy to transport
HSBM 1020-10:
- User-friendly adjustment of the upper beam
- Swivel bend via double handle

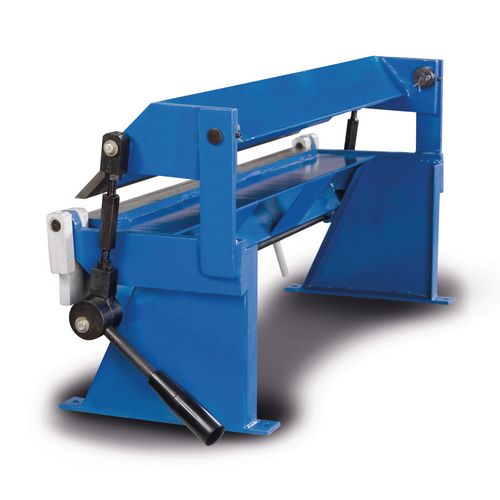

HSBM 2200-0.7 and HSBM 3000-0.6
- Two machines in one: manual folding machine and scissors
- Ideal for roofers on assembly, z. B. for making Erkerblechen, Mehlblechen, chimney linings
- The detachable roller cutter enables precise cutting of copper and zinc sheet
- Angle display from 0 - 135 °
- Swivel bending with secure clamping of the workpiece by preloading the upper beam
- Optionally available for HSBM 2200-0.7: function for beading sheet metal
- Quality Made in Europe
| Max. working width | 610 mm |
| Max. bending angle | 135 ° |
| Segmentation | 25-50-75-205-255 mm |
| VPE | 1 |
| Bending capacity | |
|---|---|
| 400N/mm² | 1.0 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 850 mm |
| Width/depth approx. | 360 mm |
| Height approx. | 420 mm |
| Weight approx. | 42 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
