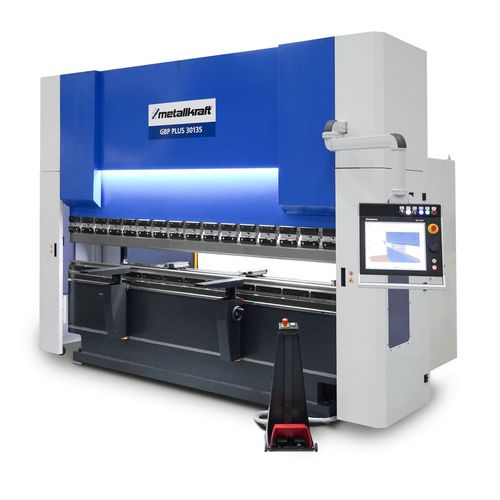

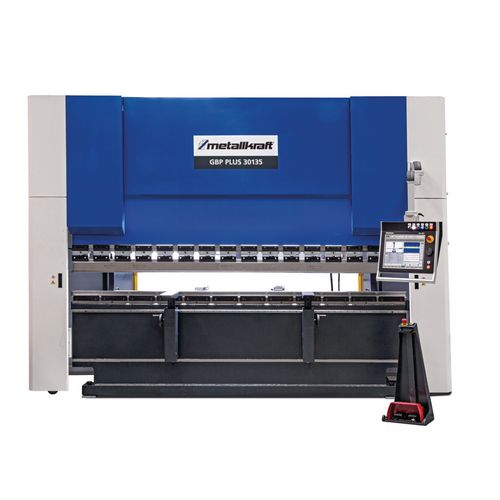

    CNC-controlled, hydraulic press brake

    GBP PLUS 30320

    With 4 driven axes, motorized crowning and manual upper tool quick clamping

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 4273032

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails



    Standard version:

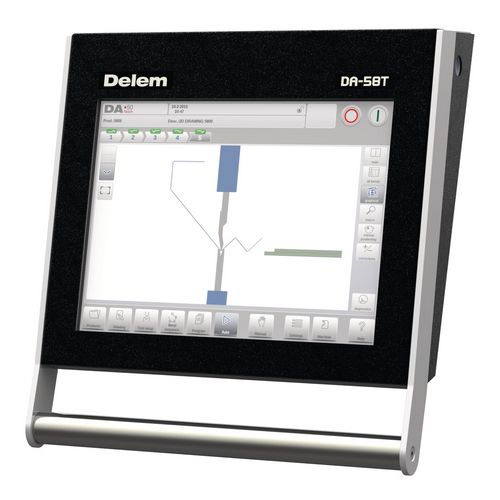

    • Graphical 2D CNC control DELEM DA-58T with offline software TL
    • Two linear encoders (GIVI) on Press bar for checking the desired position
    • High-quality linear encoders with an accuracy of 0.01 mm
    • CNC-controlled backgauge with two backgauge fingers

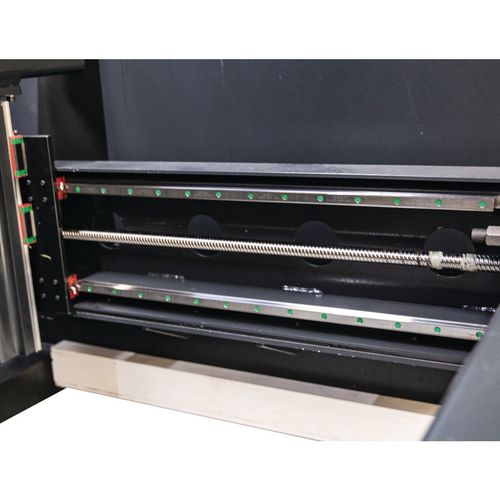

    • X-axis linearly guided and driven by ball screws via servomotor
    • R-axis guided linearly and driven by ball screws via servomotor
    • Backgauge fingers on linear guides manually adjustable laterally
    • Safety laser Fiessler AKAS LC -II M with press safety control FMSC
    • CNC-controlled, motorized crowning device WILA to compensate for the spring deflection
    • Control panel on the right side of the machine on a swiveling arm
    • Solid and low-maintenance flat guide of the press beam

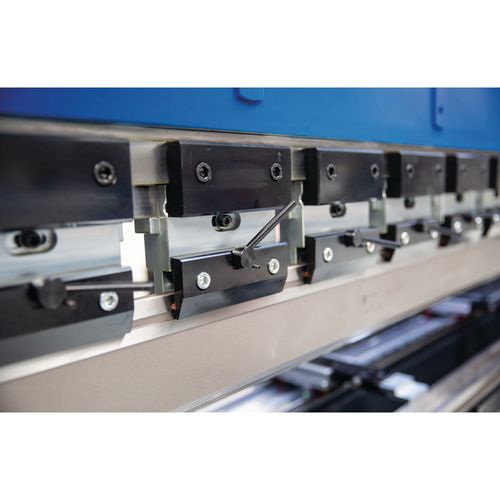

    • Manual top tool clamping (lateral removal), Promecam system / Amada
    • Top tool (Promecam/Amada), height 105 mm (3 x 835 mm / 1 x 805 mm sectioned)
    • Multi-V die, height 60 mm, V-openings 16/22/35/50 mm (3 x 835 mm / 1 x 805 mm sectioned)
    • Mobile foot control unit (BERNSTEIN) with emergency stop function and safety cable
    • Foot pedal with two switches (press bar up/down) and safety step in the down switch

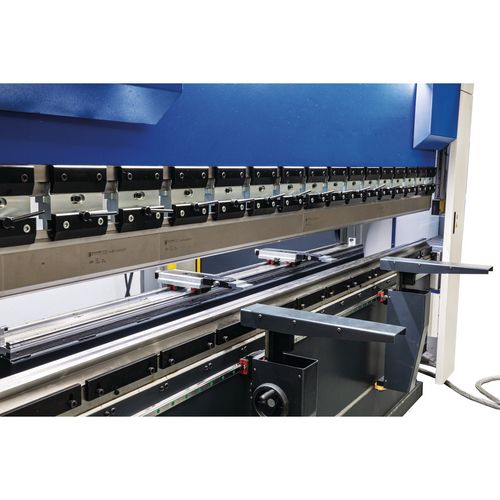

    • Two front support arms that can be quickly adjusted on the side on the linear guide
    • All linear guides and carriages from HIWIN motion control
    • Control-controlled oil quantity distribution between the cylinders
    • Monitoring of the relative cylinder position during bending process
    • Direct programming of the bending angle via control
    • Programmable bending and retraction speed and pressing time
    • Manual, semi-automatic or automatic working mode selectable
    • Honed cylinders, made from one block for highest accuracy and durability
    • Hydraulic components from HAWE (valves) and KCL Hydraulic (pump)

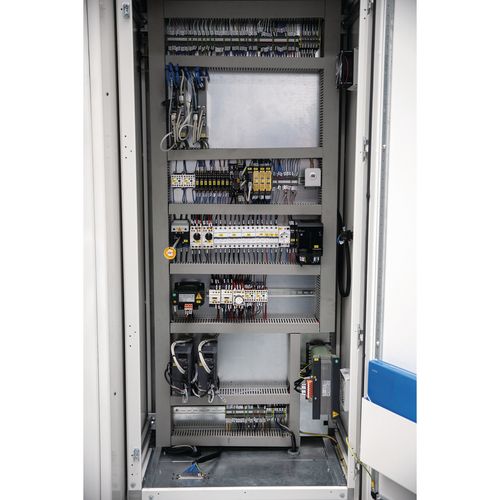

    • Electrical components from Schneider and Mitsubishi Electric
    • Large hydraulic tank to maintain the correct oil temperature
    • Hydraulic system protected by pressure relief valve
    • Drive motors protected by appropriate circuit breakers
    • Machine body in a particularly heavy and tension-free welded construction
    • Side doors easy to open and monitored by safety switches

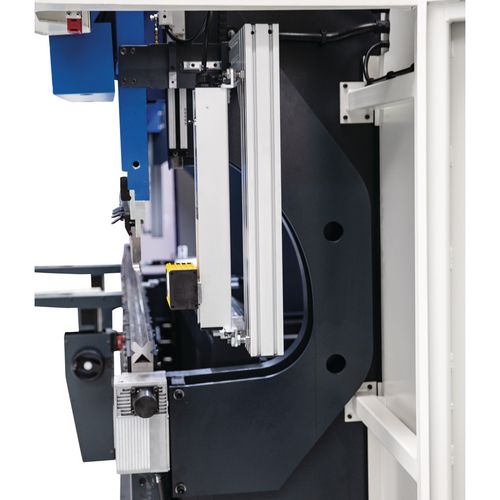

    • Rear area protection using a light barrier system from REER Italy
    • Illumination of the work area by means of an LED bar in the press beam cover


    Special accessories:

    • Controls (DELEM DA-66T-2D, DELEM DA-69T-3D, Cybelec CybTouch 15, Cybelec CybTouch 19-2D, Cybelec CybTouch 19 MX-3D)
    • Back gauge X/R/Z1/Z2 with X travel = 750 mm
    • Back gauge X/R/Z1/Z2 + Delta X (200 mm) with X travel = 750 mm
    • Backgauge X/X2/R1/R2/Z1/Z2 (tower version)
    • Hydraulic upper tool clamp WILA Pro
    • Hydraulic die clamp WILA Pro
    • Manual central lubrication
    • Automatic central lubrication
    • Bending aids with motorized height adjustment - can be moved laterally
    • Additional front support arm (without handwheel height adjustment)
    • Additional rear stop finger (manually movable)
    • Parking area 1,000 mm for front support arms or bending aids
    • Oil cooler
    • Oil warmer
    • Special sizes on request



    • Graphical 2D CNC control DELEM DA-58T with offline software TL
    • Two linear encoders (GIVI) on Press bar for checking the desired position
    • High-quality linear encoders with an accuracy of 0.01 mm
    • CNC-controlled backgauge with two backgauge fingers
    • X-axis linearly guided and driven by ball screws via servomotor
    • R-axis guided linearly and driven by ball screws via servomotor



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Pressing force320 t
    Bending length3100 mm
    Distance between columns2600 mm
    Stroke350 mm
    Rapid mode120 mm/s
    Bending speed from to1 – 9 mm/s
    Retraction90 mm/s
    Table height930 mm
    Table width90 mm
    X axis stroke from to5 – 750 mm
    X axis speed500 mm/s
    Oil tank capacity360 l
    VPE1
    Dimensions and weights
    Length approx.4400 mm
    Width/depth approx.2200 mm
    Height approx.3630 mm
    Weight approx.21000 kg
    Electrical Data
    Drive motor output22 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1







    Crowningmotor
