CNC control

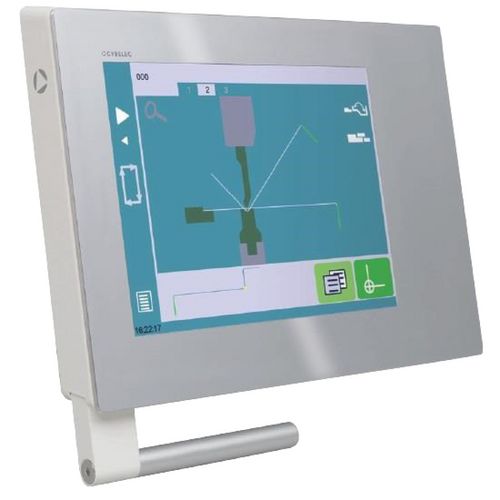

Cybelec VisiTouch 19-2D with Offline-Software
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4281105
Are you interested in this product?
Put a request
Find Trader
Productdetails
- The 2D CNC touch screen control allows intuitive, graphic input of the profiles via the very generous 19" touch screen. After the profile is completed, the control automatically calculates the bending sequence and all axis positions.
- In addition to the 4 standard axes (Y1, Y2, X and R), supports all other optional axes and auxiliary functions.
- Automatic calculation of the functions: Bend sequence, backgauge position, tool safety zones, press force, crowning, stretched length, coining force, radius bending.
- Graphical tool and product library
- Collision monitoring bending part-tool-machine body-backgauge
- 2D and 3D visualization (for imported bending programs)
- USB interface for mouse, keyboard and data transfer
- 19" capacitive touch screen with glass surface
Unit: pc(s).
Packaging unit: 1
