| Stroke | 150 mm |
| Rapid mode | 150 mm/s |
| Bending speed | 20 mm/s |
| Retraction | 150 mm/s |
| Table height | 850 mm |
| Table width | 90 mm |

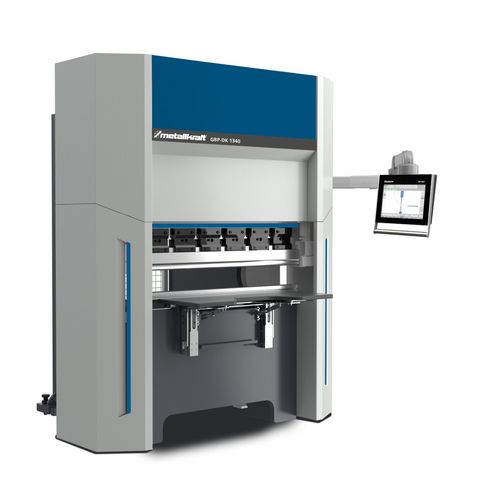

Electric CNC press brake
GBP DK
electrical drive via servo motors and recirculating ball screws
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Bending length (mm) | Distance between columns (mm) | X axis stroke (mm) | X axis speed (mm) | VPE | Pressing force | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | EUR excl. Tax | EUR incl. 19% Tax | |
| GBP DK 920 | 4571001 | 900 | 960 | 350 | 300 | 1 | 1280 | 1760 | 2190 | 2000 | 3.8 | Price upon request | - | ||
| GBP DK 1340 | 4571302 | 1300 | 1065 | 500 | 1000 | 1 | 40 | 1880 | 2435 | 2320 | 3400 | 2 x 3.8 | Price upon request | - | |
Select Attributes
General
- Bending length
- Distance between columns
- X axis stroke
- X axis speed
- VPE
- Pressing force
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
Price
- excl. Tax
- incl. 19% Tax
Productdetails
Standard design:

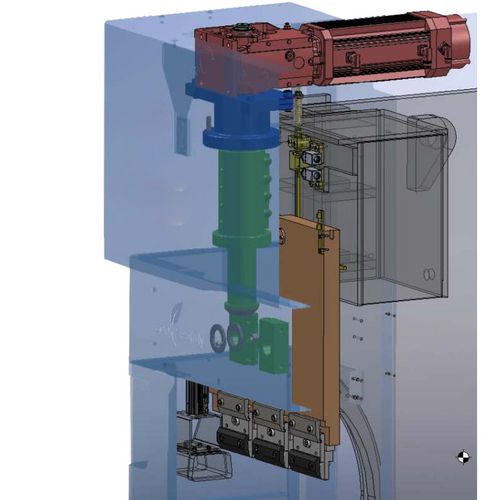

- Purely electric drive of the press beam via servo motors and recirculating ball screws reduces energy consumption and noise pollution
- Extremely high working speeds possible with 150mm/s rapid traverse and 20mm/s pressing speed
- No maintenance and leakage of hydraulics - no hydraulic oil required
- Machine body as dimensionally stable O-frame - no springing up

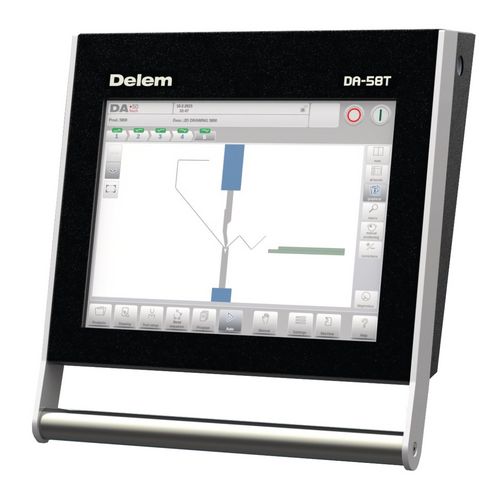

- 2D-CNC graphic control Delem DA-58T control with large 15" touch screen, ergonomically mounted on swivel arm
- Offline software Profile-T Lite
- Y1, Y2, X and R axes CNC controlled

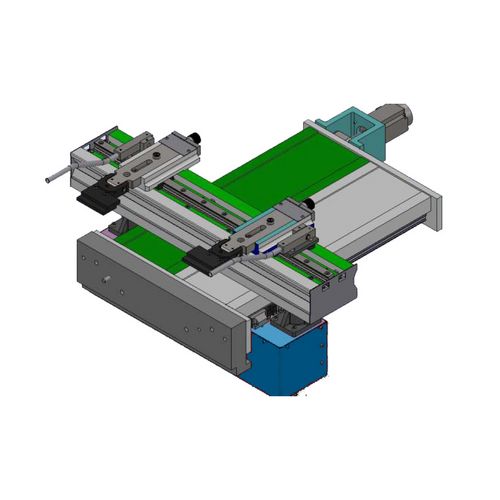

- Motorized backgauge driven by zero-backlash ball screws and solid guides
- Two backgauge fingers manually adjustable in longitudinal direction on linear rail
- Safety laser Nuova DSP-AP moving with the upper beam
- Safety PLC Nuova MCS
- Promecam/Amada tooling system
- Quick upper die clamping with lateral die removal
- Simple die clamping via clamping plates

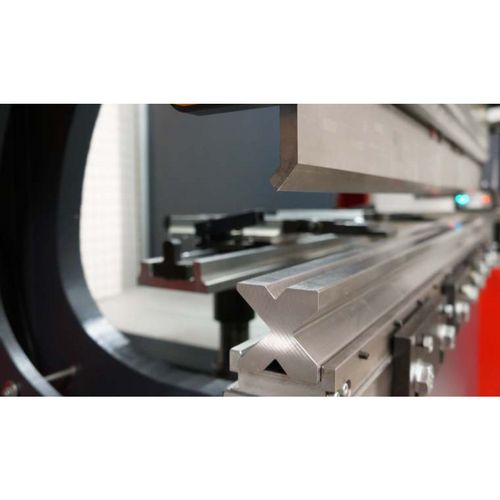

- Complete set of sectioned dies
- Slightly cranked upper die 85° with 104mm height
- Quadruple die 85° with V-openings 16, 22, 35 and 50mm
- High quality electronic components
- LED work area illumination
- Mobile double foot pedal
Special accessories:
- Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T).
- 4-, 5-, or 6-axis backgauge systems
- Additional backgauge fingers
- Hydraulic or pneumatic tool clamping
- Ergonomically adjustable front support table
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
