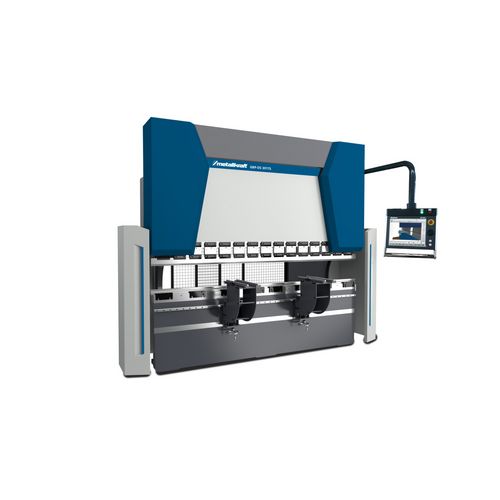

CNC-controlled, hydraulic press brake

GBP DS

with graphic 2-D control

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Are you interested in this product?

Put a request

Find Trader

Variations

		General													Dimensions and weights				Electrical Data	Price
Title	Art.-No.	Pressing force (t)	Bending length (mm)	Distance between columns (mm)	Stroke (mm)	Rapid mode (mm/s)	Bending speed (mm/s)	Retraction (mm/s)	Table height (mm)	Table width (mm)	X axis stroke (mm)	X axis speed (mm/s)	Oil tank capacity (l)	VPE	Length approx. (mm)	Width/depth approx. (mm)	Height approx. (mm)	Weight approx. (kg)	Drive motor output (kW)	EUR excl. Tax	EUR incl. 19% Tax
GBP DS 1560	4541500	60	1550	1250	220	180	10	160	900	95	500	1000	100	1	2445	2200	2390	4250	7.5	Price upon request	-
GBP DS 2060	4542000	60	2050	1650	220	180	10	160	900	98	500	1000	100	1	2845	2200	2390	4800	7.5	Price upon request	-
GBP DS 26100	4542601	100	2600	2150	300	160	10	150	900	98	750	300	190	1	3320	2300	2790	8000	11	Price upon request	-
GBP DS 30100	4543001	100	3020	2555	300	160	10	150	900	98	750	300	190	1	3725	2550	2800	8550	11	Price upon request	-
GBP DS 30135	4543002	135	3020	2555	320	160	10	140	900	98	750	300	190	1	3745	2300	2850	9500	15	Price upon request	-
GBP DS 30175	4543003	175	3020	2555	350	150	10	130	920	98	750	300	300	1	3745	2550	3050	11500	15.0	Price upon request	-
GBP DS 30220	4543004	220	3020	2555	350	140	10	130	920	98	750	300	300	1	3745	2550	3050	11700	22	Price upon request	-
GBP DS 30320	4543005	320	3020	2555	400	140	10	120	920	98	650	150	400	1	3785	2590	3100	14450	30	Price upon request	-
GBP DS 36175	4543603	175	3650	3100	350	150	10	130	920	98	750	300	300	1	4290	2500	3025	12200	22	Price upon request	-
GBP DS 36220	4543604	220	3650	3100	350	140	10	130	920	98	750	300	300	1	4290	2500	3050	12350	22	Price upon request	-
GBP DS 40175	4544003	175	4050	3550	350	150	10	130	920	98	750	300	300	1	4740	2500	3025	13100	22	Price upon request	-
GBP DS 40220	4544004	220	4050	3550	350	140	10	130	920	98	750	300	300	1	4740	2500	3050	13200	22	Price upon request	-
GBP DS 40320	4544005	320	4050	3550	350	140	10	120	920	98	650	150	400	1	4780	2500	3100	17650	30	Price upon request	-
GBP DS 40400	4544006	400	4050	3550	350	80	10	80	1095	98	650	150	400	1	5000	2500	3555	24500	45	Price upon request	-
GBP DS 60220	4546004	220	6050	5100	350	100	10	100	920	118	650	150	300	1	6775	2650	3050	18000	22	Price upon request	-
GBP DS 60320	4546005	320	6050	5100	350	80	10	80	920	220	650	150	600	1	6815	2500	3100	22850	30	Price upon request	-
GBP DS 60400	4546006	400	6050	5100	400	60	8	60	1095	220	650	150	400	1	6855	2500	3605	31200	45	Price upon request	-
GBP DS 60600	4546007	600	6050	5100	455	60	8	60	1000	360	650	150	600	1	7100	2660	3755	50000	45	Price upon request	-

Select Attributes

General

Pressing force
Bending length
Distance between columns
Stroke
Rapid mode
Bending speed
Retraction
Table height
Table width
X axis stroke
X axis speed
Oil tank capacity
VPE

Dimensions and weights

Length approx.
Width/depth approx.
Height approx.
Weight approx.

Electrical Data

Drive motor output

Price

excl. Tax
incl. 19% Tax

Productdetails

Standard version:

Heavy and robust
welded steel construction
Optimized hydraulic unit with reduced noise level
Graphic 2D CNC control Cybelec CybTouch 15 with large 15" touch screen, ergonomically mounted on swivel arm
VisiTouch 2D offline software
Energy, environment and machine friendly ECO mode - automatic pump shutdown when not in use for several minutes X Y1, Y2 and X-axes CNC controlled
Motorized backgauge driven by backlash-free ball screws and solid guides
Two backgauge fingers manually adjustable in longitudinal direction on linear rail
Motorized table crowning, CNC controlled
Two adjustable front support arms
Promecam/Amada tooling system
Upper die clamping with lateral removal of dies
Simple die clamping via clamping plates
Complete set of sectioned dies
Slightly cranked upper die 85° with 104mm height
Quadruple die 85° with V-openings 16, 22, 35 and 50mm
Safety laser Fiessler AKAS II moving with the upper die Safety PLC Fiessler FMSC
Side and rear doors electronically monitored
High quality hydraulic and electronic components
Mobile double foot pedal
LED work area lighting
Oil filling

Special accessories:

Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T)
4-, 5-, or 6-axis backgauge systems
Additional backgauge fingers
Hydraulic or pneumatic
tool clamping system

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
