CNC-controlled, hydraulic press brake

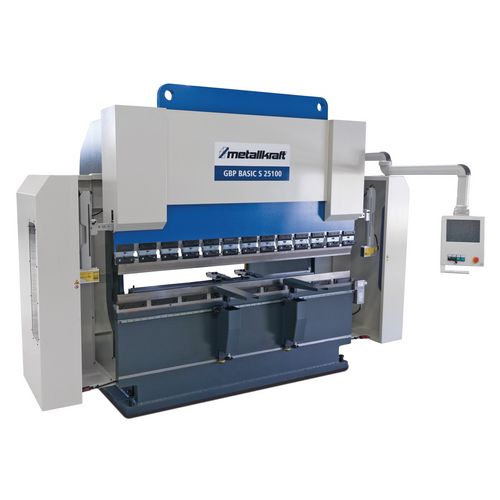

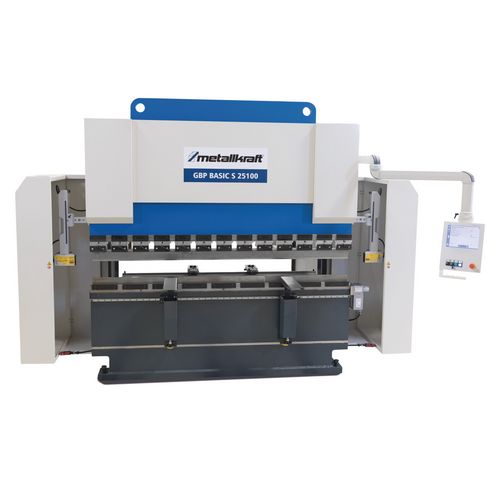

GBP BASIC S

three controlled axes, motorized crowning, 2D touch screen control CYBELEC CybTouch 12

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Are you interested in this product?

Put a request

Find Trader

Variations

		General											Dimensions and weights				Electrical Data	Price
Title	Art.-No.	Pressing force (t)	Bending length (mm)	Distance between columns (mm)	Stroke (mm)	Rapid mode (mm/s)	Bending speed (mm/s)	Retraction (mm/s)	Table height (mm)	X axis stroke (mm)	Oil tank capacity (l)	VPE	Length approx. (mm)	Width/depth approx. (mm)	Height approx. (mm)	Weight approx. (kg)	Drive motor output (kW)	EUR excl. Tax	EUR incl. 19% Tax
GBP BASIC S 1360	4247130	60	1250	1050	200	120	1 – 10	140	930	5 - 650	110	1	2500	1600	2300	3250	7,5	Price upon request	-
GBP BASIC S 2065	4247200	65	2070	1600	200	140	1 – 10	140	930	5 - 650	110	1	3200	1600	2300	4100	7,5	Price upon request	-
GBP BASIC S 20100	4247201	100	2070	1600	250	160	1 – 10	100	930	5 - 650	230	1	3250	1800	2550	6500	11	Price upon request	-
GBP BASIC S 25100	4247250	100	2550	2100	250	160	1 – 10	100	930	5 - 650	230	1	3550	1800	2550	7300	11	Price upon request	-
GBP BASIC S 25135	4247251	135	2550	2100	250	160	1 – 10	100	930	5 - 650	230	1	3600	1900	2550	7900	15	Price upon request	-
GBP BASIC S 25175	4247252	175	2550	2100	250	160	1 – 10	100	930	6 - 650	230	1	3650	1900	2850	8300	15	Price upon request	-
GBP BASIC S 30100	4247300	100	3150	2600	250	160	1 – 10	100	930	5 - 650	230	1	4220	1800	2550	8400	11	Price upon request	-
GBP BASIC S 30135	4247301	135	3150	2600	250	160	1 – 10	100	930	5 - 650	230	1	4220	1800	2550	8800	15	Price upon request	-
GBP BASIC S 30175	4247302	175	3150	2600	250	160	1 – 10	100	930	5 - 650	230	1	4250	1950	2850	11000	15	Price upon request	-
GBP BASIC S 30220	4247303	220	3150	2600	275	140	1 – 10	100	930	5 - 650	300	1	4250	2000	2950	12500	18,5	Price upon request	-
GBP BASIC S 30320	4247304	320	3150	2600	350	120	1 – 9	90	930	5 - 650	360	1	4400	2200	3350	17500	22	Price upon request	-
GBP BASIC S 37175	4247372	175	3700	3150	250	160	1 – 10	100	930	5 - 650	230	1	4950	1950	2850	12500	15	Price upon request	-
GBP BASIC S 37220	4247373	220	3700	3150	275	140	1 – 10	100	930	5 - 650	300	1	5000	2000	2950	13500	18,5	Price upon request	-
GBP BASIC S 40175	4247402	175	4100	3600	250	160	1 – 10	100	930	5 - 650	230	1	5250	1950	2850	13500	15	Price upon request	-
GBP BASIC S 40220	4247403	220	4100	3600	275	140	1 – 10	100	930	5 - 650	300	1	5250	2150	2950	14800	18,5	Price upon request	-
GBP BASIC S 40320	4247404	320	4100	3600	350	120	1 – 9	90	930	5 - 650	360	1	5400	2340	3350	20000	22	Price upon request	-
GBP BASIC S 40400	4247405	400	4100	3600	350	120	1 – 9	80	960	5 - 650	500	1	5750	2470	3500	26800	30	Price upon request	-
GBP BASIC S 60220	4247603	220	6100	5600	275	120	1 – 10	100	1020	5 - 650	300	1	7500	2000	3100	24500	18,5	Price upon request	-
GBP BASIC S 60320	4247604	320	6100	5600	350	120	1 – 9	90	960	5 - 650	360	1	7500	2400	3350	30000	22	Price upon request	-
GBP BASIC S 60400	4247605	400	6100	5600	350	120	1 – 9	80	960	5 - 650	500	1	7500	2500	3500	35000	30	Price upon request	-

Select Attributes

General

Pressing force
Bending length
Distance between columns
Stroke
Rapid mode
Bending speed
Retraction
Table height
X axis stroke
Oil tank capacity
VPE

Dimensions and weights

Length approx.
Width/depth approx.
Height approx.
Weight approx.

Electrical Data

Drive motor output

Price

excl. Tax
incl. 19% Tax

Productdetails

Standard version:

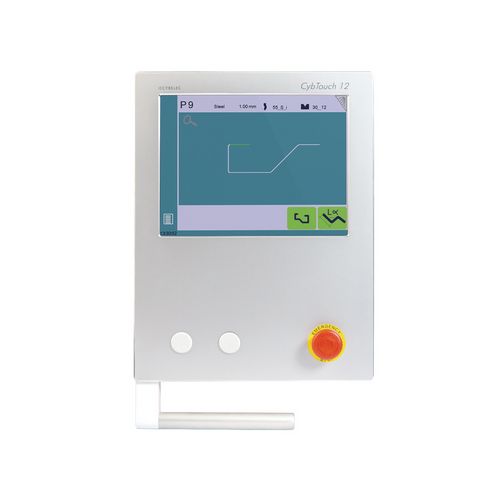

Touch screen CNC control CybTouch 12 with 2D color interface and bending sequence calculation.
CNC-controlled, motorized X-axis, guided on linear rails - driven by recirculating ball screws

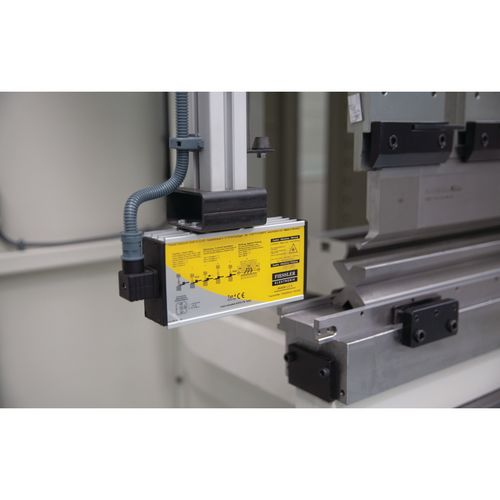

Safety devices FIESSLER Akas II and FMSC

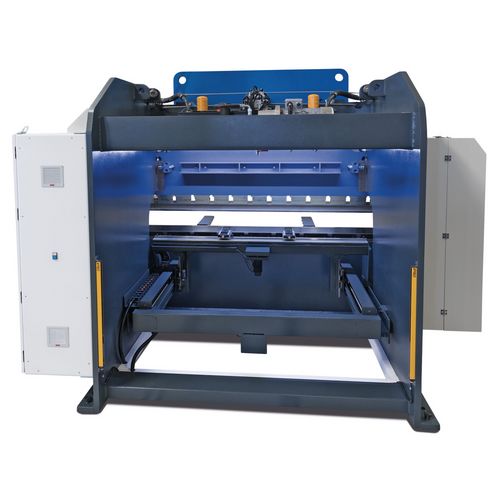

Backspace protection by means of light barrier

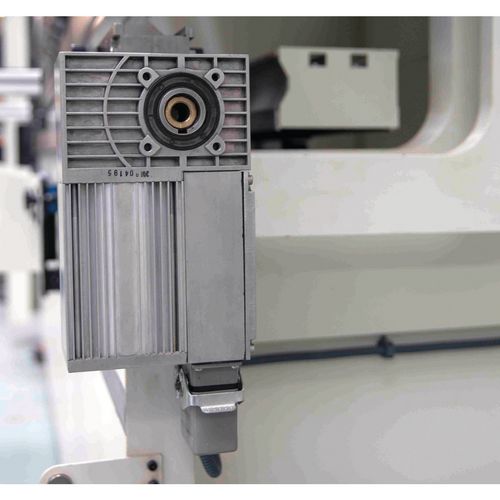

CNC-controlled, motorized table crowning
Manual height adjustment of the stop fingers (R-axis)
Manual lateral adjustment of the stop fingers (Z-axis) on linear rail

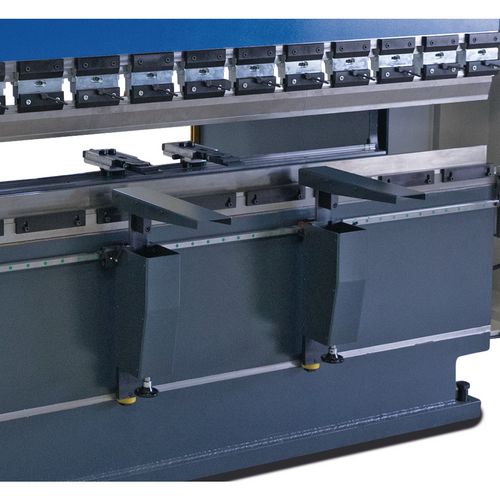

Two front support arms adjustable on linear rail

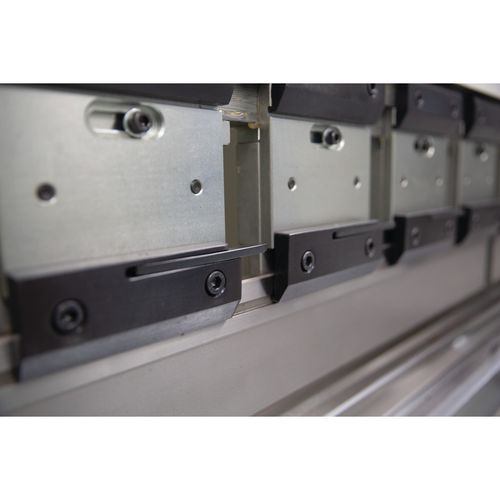

Upper tool quick clamping (lateral removal)
Standard upper tool set 135mm - 85°
Standard die set Multi-V 85°
Side protection doors monitored by limit switches
Control on swivelling arm on the right side
Electrical components from Schneider and Mitsubishi
Hydraulic components from HAWE and Ikron

Possible equipment options:

Controls (CybTouch 15 or Delem DA 58T)
Extension of the X-axis to travel 1000 mm
CNC-controlled, motorized R-axis
Preparation for tandem operation
Special throat size
Additional stop fingers and front support arms
Second foot pedal for two-man operation
Manual or automatic central lubrication
Air conditioning for the control cabinet
Oil cooler
Oil warmer
Special tools
Control on the left side of the machine
Special sizes on request

X axis speed

250 mm/s

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
