| Dimensions and weights | |
|---|---|
| Width/depth approx. | 2300 mm |
| Height approx. | 2400 mm |

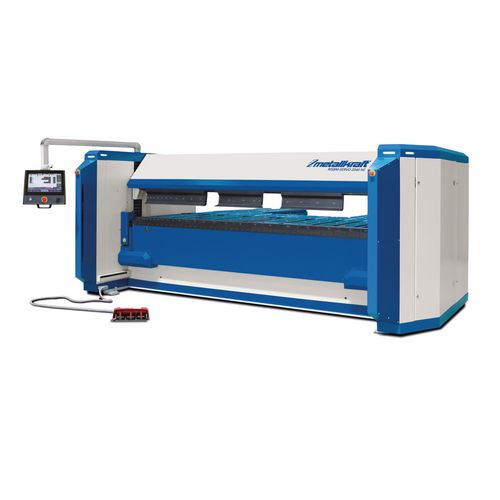

Motorized swing bending machine
for bending large boxes with side heights up to 170mm (optionally also 200mm possible)
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Bending capacity | Dimensions and weights | Price | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Bending capacity 270 N/mm² (mm) | Max. working width (mm) | VPE | 400N/mm² (mm) | Stainless steel (mm) | Aluminium (mm) | Length approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 19% Tax | |
| MSBM-SERVO 2040 NC | 4137200 | 6 | 2040 | 1 | 4 | 3 | 7 | 3600 | 6800 | Price upon request | - | |
| MSBM-SERVO 2535 NC | 4137250 | 5 | 2535 | 1 | 3.5 | 2.5 | 6.5 | 4100 | 7300 | Price upon request | - | |
| MSBM-SERVO 3230 NC | 4137320 | 4 | 3230 | 1 | 3 | 2 | 6 | 4700 | 8250 | Price upon request | - | |
| MSBM-SERVO 4225 NC | 4137420 | 3.5 | 4225 | 1 | 2.5 | 1.5 | 4.5 | 5700 | 9650 | Price upon request | - | |
Select Attributes
General
- Bending capacity 270 N/mm²
- Max. working width
- VPE
Bending capacity
- 400N/mm²
- Stainless steel
- Aluminium
Dimensions and weights
- Length approx.
- Weight approx.
Price
- excl. Tax
- incl. 19% Tax
Productdetails
Standard equipment:
- Top beam with a generous clear opening of 350mm.
- Clamping beam driven by servo motors and ball screw for high clamping force

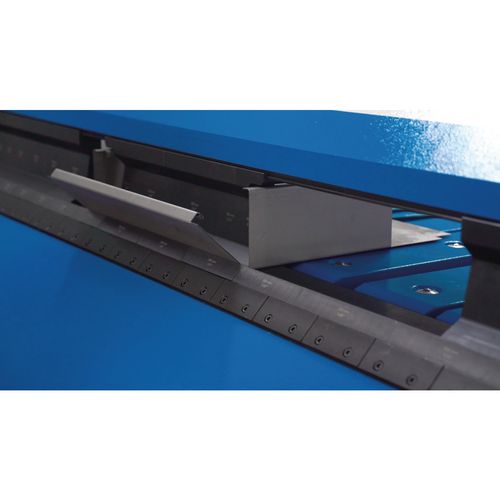

- Servo-motorized backgauge with 1500mm travel range with solid stop fingers and grooves in the bed support
- Large, rectangular support table in the rear with integrated transfer balls for easy material handling

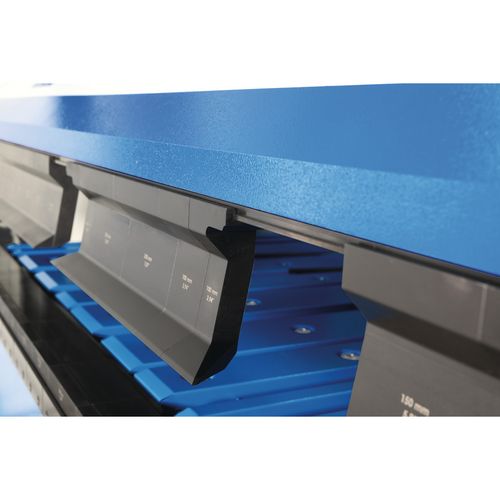

- 170mm high segmented goad foot tooling, end pieces designed as horns to accommodate circumferential bends with C sidewalls
- One narrow and one wide continuous bending bar included (15mm and 40mm)
- Manual sheet thickness adjustment of the bending beam
- Front safety area protected by light curtain
- 3-position foot pedal for one-man operation

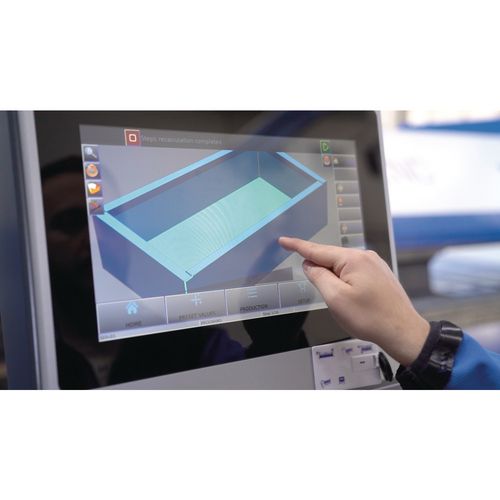

- User-friendly 15.6" touchscreen NC control on ergonomic swivel arm
Options:
- Clear upper beam opening 400mm and 200mm high segmented goad foot tooling.
- Backgauge extensions with 2500, 3200 or 4200mm length
- Different support table geometries L-, T- or U-shape
- Graphical 2D or 3D controls
- Motorized sheet thickness adjustment of the bending beam
- Pneumatic upper die clamping
- Central manual crowning system of the bending beam
- Flat, rotating stop fingers with bed support without grooves
- Segmentation of the bed support and/or bending bar
- Second foot pedal for two-man operation
| Electrical Data | |
|---|---|
| Total input power | 16.9 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
