| Dimensions and weights | |
|---|---|
| Width/depth approx. | 2100 mm |
| Height approx. | 1650 mm |

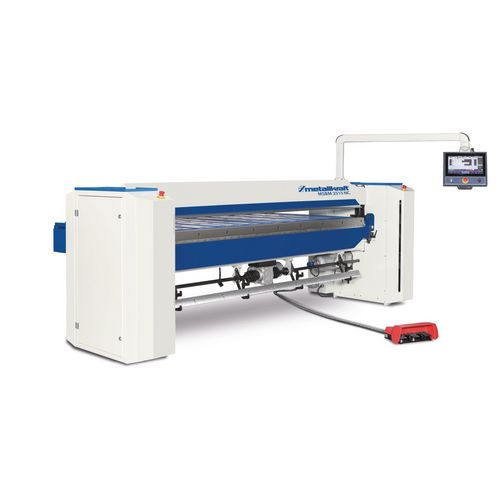

Motorized swing bending machine
Designed for very high cycle rates
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Bending capacity | Dimensions and weights | Price | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Max. working width (mm) | VPE | 400N/mm² (mm) | Stainless steel (mm) | Aluminium (mm) | Length approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 19% Tax | |
| MSBM 2515 NC | 4131250 | 2515 | 1 | 1.5 | 1 | 2 | 3800 | 2500 | Price upon request | - | |
| MSBM 3210 NC | 4131320 | 3210 | 1 | 1 | 0.6 | 1.5 | 4500 | 2900 | Price upon request | - | |
Select Attributes
General
- Max. working width
- VPE
Bending capacity
- 400N/mm²
- Stainless steel
- Aluminium
Dimensions and weights
- Length approx.
- Weight approx.
Price
- excl. Tax
- incl. 19% Tax
Productdetails
Standard features:
- Clamping beam with eccentric drive for fast clamping and opening cycleContinuous

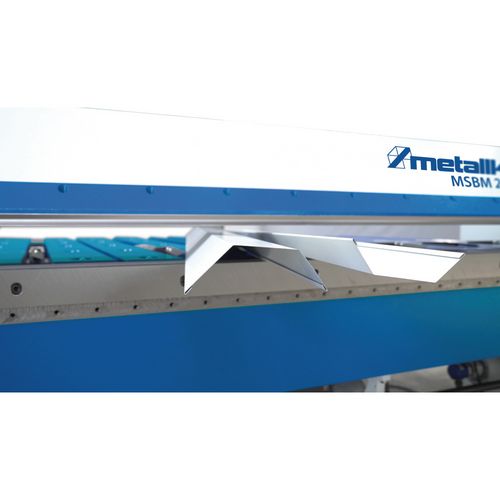

- sharp bending rail with 20° R1One
- narrow and one wide continuous bending beam included (10mm and 25mm)
- Manual sheet thickness adjustment of the bending beam Front safety
- area secured via light curtain3-position foot pedal for
- one-man operationServo-motorized
- backgauge with 750mm travel range with flat, rotating stop fingers - thus no grooves in the support table for impression-free bendingLarge ,

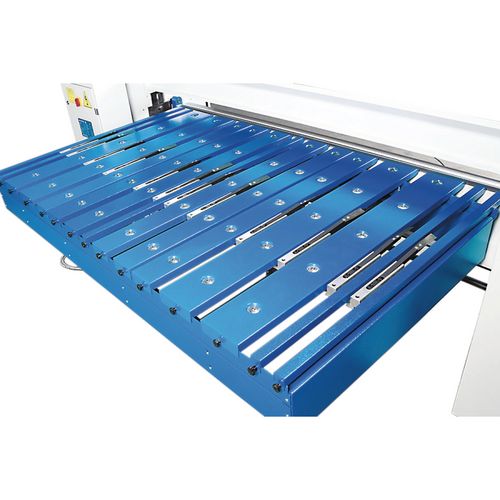

- rectangular support table in the rear area with integrated transfer balls for easy material handling

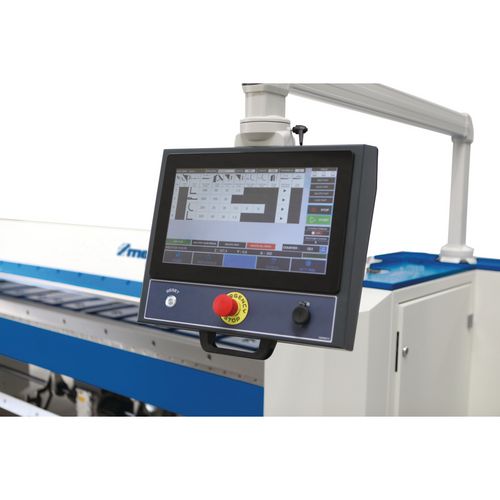

- User-friendly 15.6" touchscreen NC control on ergonomic swivel arm
- Options:
- Backgauge extensions with 1000mm
- 2D graphic controls
- Fast, servo-motorized sheet thickness adjustment of the bending beam
- Sharp bending rails with different radii Backgauge extensions with 1000mm
- 2D graphic controls
- Fast, servo-motorized sheet thickness adjustment of the bending beam
- Sharp bending rails with different radii
- Options:
| Electrical Data | |
|---|---|
| Total input power | 4.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
