OPTIgrind GU 30S

Functional with abrasive attachment

1.345,00 EUR excl. Tax / pc(s).
1.600,55 EUR incl. 19% Tax / pc(s).

Promotional price *

1.199,00 EUR excl. Tax / pc(s).
1.426,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 3101585

Are you interested in this product?

Put a request

Find Trader

Productdetails

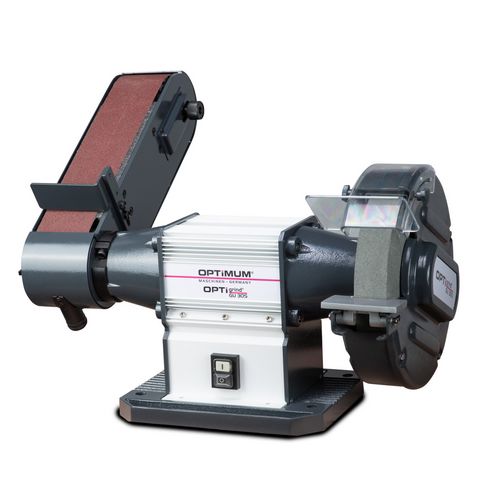

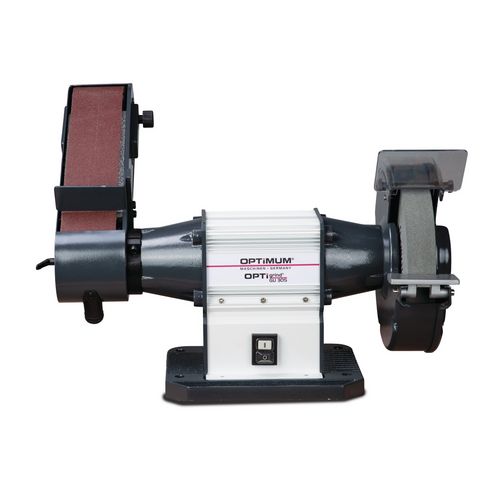

Robust and stable universal grinding machines with abrasive belt and grinding wheel for a wide range of materials
Heavy, durable industrial design with maintenance-free motor
Housing made of extruded aluminum
Large, heavy mounting flanges and thus high disc concentricity

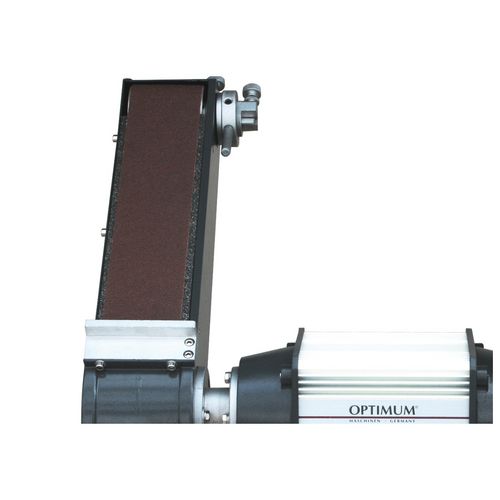

Sanding attachment with graphite coating; prevents friction and heat
Stop allows quick and easy sanding of workpieces
Tape adjustment without tools - only adjustable with a handle screw
Universal corundum grinding wheel and sanding belt in the standard scope of delivery

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Dimensions and weights
Length approx.	767 mm
Width/depth approx.	420 mm
Height approx.	596 mm
Weight approx.	64.5 kg

Electrical Data
Drive motor output	2,2 kW
Supply voltage	400 V
Mains frequency	50 Hz

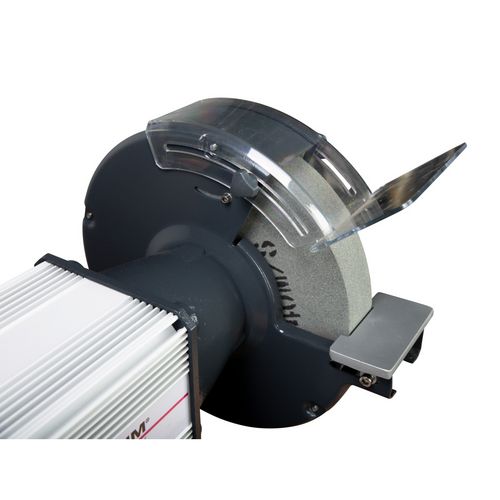

Grinding wheel(s)
External diameter	300 mm
Width	50 mm
Drill hole	75 mm
Speed	1450 min¯¹

Sanding attachment
Grinding belt length	1190 mm
Grinding belt width	100 mm
Grinding attachment swivel range	90 °
Extraction duct nominal width	35 / 50 mm

VPE

Unit: pc(s).
Packaging unit: 1

Grinding wheel normal corundum fine K80
Sanding belt normal corundum fine K80
