Motorized swing bending machine
MSBM 4520-30 PRO DUO
Very heavy design with dynamic drive of the bending beam
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3779424
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Very heavy and robust welded construction
- Dynamic drive of the bending beam by means of two frequency-controlled motors with gears
- Over cheek clamping via trapezoidal thread
- High-quality Lenze motors
- Continuous sharp bending rail
- Tools suitable for bending stainless steel

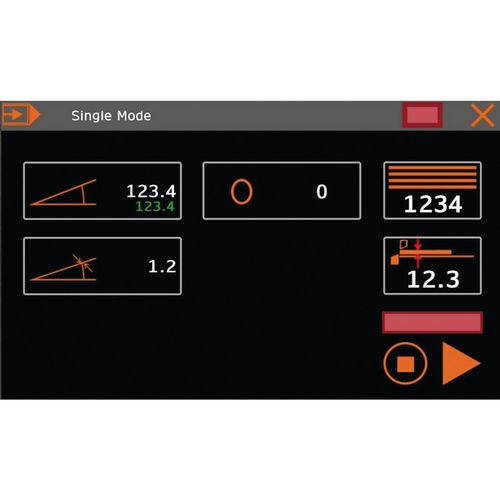

- Bending angle adjustment via touchscreen NC control system
- Sheet thickness adjustment manually at the bending beam
- Manual crowning device of the bending beam
- Operation via double foot pedal with emergency stop function
- Clean motor-driven machine without hydraulics
- SH models with segmented, high goat foot tools
- DUO models with continuous sharp-bending rail and high, segmented goat foot tools
Quality made in Germany
| Max. working width | 4520 mm |
| Max. passageway between top + bottom beam | 350/240 mm |
| VPE | 1 |
| Bending capacity | |
|---|---|
| 400N/mm² | 3.0 mm |
| Stainless steel | 2.2 mm |
| Explanation stainless steel | Standard tools suitable for bending stainless steel |
| Aluminium | 3.6 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 5980 mm |
| Width/depth approx. | 1500 mm |
| Height approx. | 1750 mm |
| Weight approx. | 8980 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
