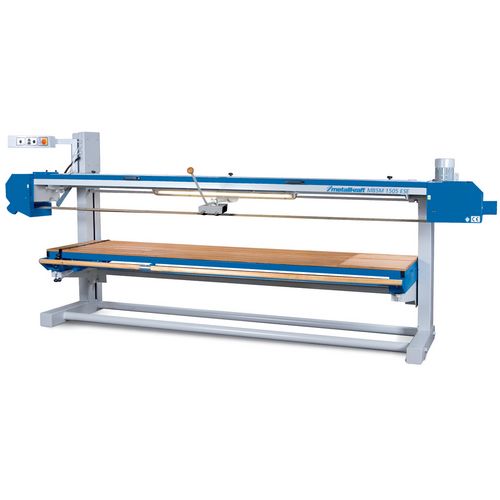

Long belt sander
MBSM 1505 ESE
With swiveling grinding unit for surface and edge grinding of long workpieces
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3704015
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For use in the metalworking industry for grinding, structuring and polishing tasks, especially in the stainless steel sector

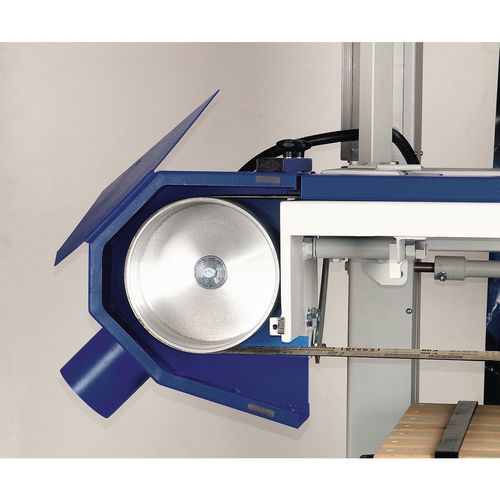

- 225 mm balanced belt rollers ensure optimum and low-vibration drive
- Infinitely variable belt speed of 4.5 - 27 m/s thanks to frequency shaper

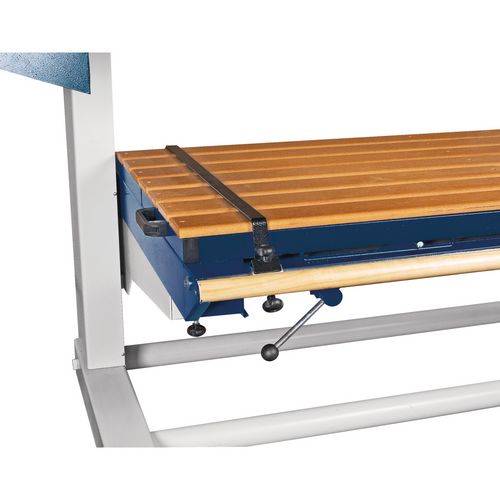

- With electric table height adjustment

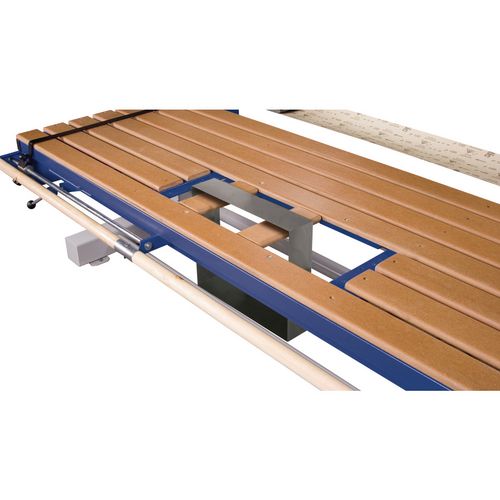

- With split table that can be opened, drawer sanding unit and integrated work table lighting
- Smooth-running sanding table even under load
- Easy adjustment of the sanding belt

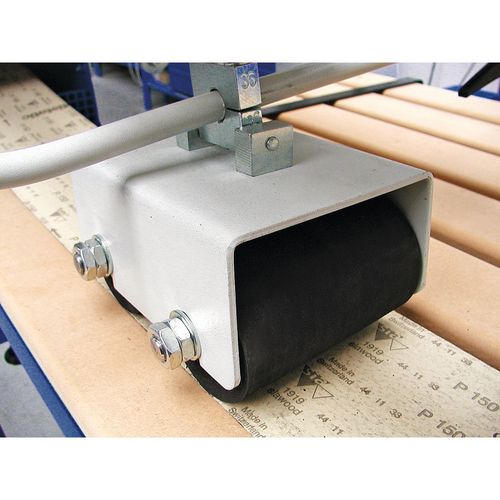

- Profile roller sanding pad, resulting in less tarnishing during the sanding process
- Right/left rotation as standard
| Dimensions and weights | |
|---|---|
| Length approx. | 2500 mm |
| Width/depth approx. | 1300 mm |
| Height approx. | 1450 mm |
| Weight approx. | 470 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 3 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction | |
|---|---|
| Extraction duct nominal width outside | 160 mm |
| Sanding machine | |
|---|---|
| Sanding belt length | 5020 mm |
| Sanding belt width | 150 mm |
| Circumferential belt speed(s) | 4,5 – 27 m/s |
| Grinding shoe length | 270 mm |
| Grinding shoe width | 150 mm |
| Drive wheel diameter | 225 mm |
| Work table | |
|---|---|
| Work table length | 1500 mm |
| Work table width | 800 mm |
| Table height adjustment stroke | 540 mm |
| Table cross stroke | 700 mm |
| Table load max. | 100 kg |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
