Control

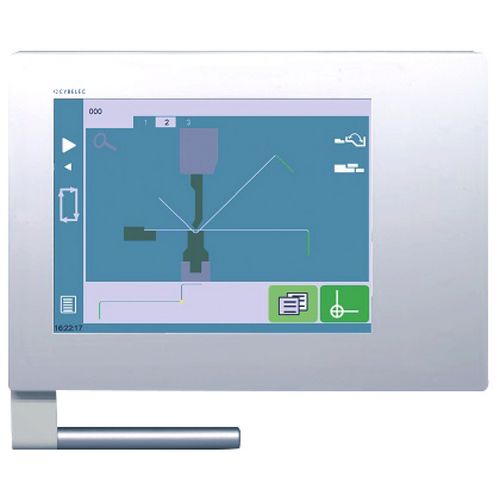

Cybelec CybTouch 15
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4280105
Productdetails
- With the 2D graphic control CybTouch 15 with touchscreen, the products are drawn on the screen - after the drawing is created, the bending sequence is determined graphically and the associated axis positions are calculated automatically.
- Y1, Y2, X and R axes as well as the optional Z1 and Z2 axes and motorized crowning are supported
- 15" capacitive touchscreen with glass surface
- Calculation of the following functions: stop position, extended length, immersion depth, changeover point, clamping point, press force, crowning
- Collision monitoring of the bent part - bent part / bent part tool / bent part backgauge / bent part machine body
- Bending sequence calculation
- USB interface for data backup
Packaging unit: 1
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
