| Effective delivery volume approx. | 580 l/min |
| Maximum Pressure | 8 bar |
| Air outlet | ½ " |
| VPE | 1 |

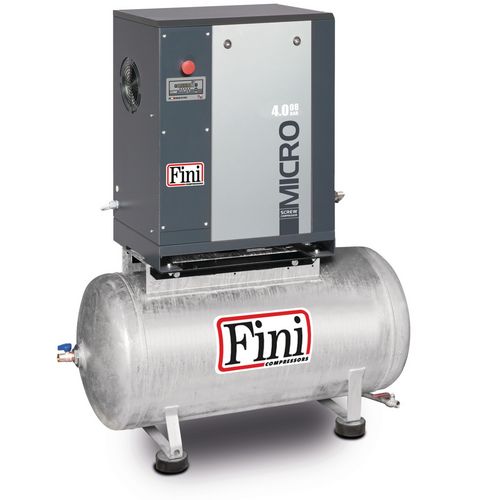

Screw compressor
MICRO SE 4.0-08-200
With ribbed belt drive in soundproof housing. For continuous operation even with smaller air requirements.
5.750,00
EUR excl. Tax / pc(s).
6.842,50
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2951612
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Space-saving single compressor with ribbed belt drive
- Start-stop operation via pressure switch, thereby saving energy compared to idling control
- Especially suitable for companies that have a continuous air requirement, but want a compact unit with a reduced noise level and low operating costs
- Standard supersonic insulation allows installation in sensitive rooms
- Intensive cooling warrantys operational safety and good air quality
- Standard with star-delta connection from motor power 4 kW
- Ideal also suitable for supplementing existing systems, eg for covering the compressed air base load
- Standard with thermal motor protection, oil temperature monitoring (max 110 °C) and operating hours counter, ensuring high operational safety
- Service-friendly due to optimal accessibility and easy disassembly and assembly of all important components
- Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
- When operating the screw compressor without a container Using an overflow valve is recommended - available as an accessory
Room amenities
Efficient cooling
- Intensive cooling warrantys operational safety and good air quality
- Fan works very quiet due to the design
Low-loss power transmission
- High-quality ribbed belt ensures optimum power transmission from motor to compressor while maintaining a long service life
| Compressed air tank | |
|---|---|
| Pressure vessel capacity | 200 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 1440 mm |
| Width/depth approx. | 510 mm |
| Height approx. | 1280 mm |
| Weight approx. | 150 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 60 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Compressed air tank | Hot-dip galvanised inside and out |
| Drive transmission | Ribbed belt |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
