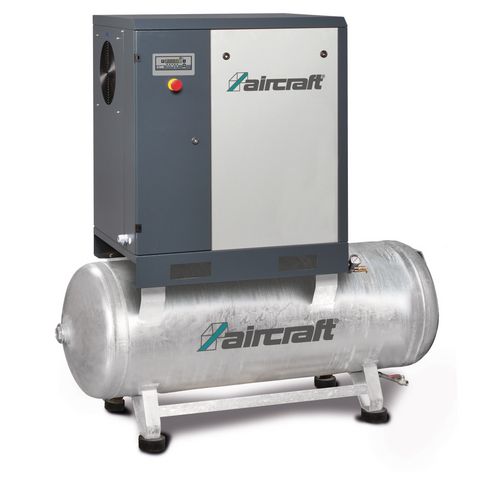

A-PLUS 16-08-500

for 100% capacity utilization - designed for maximum operational reliability.

8.490,00 EUR excl. Tax / pc(s).
10.103,10 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2092832

Are you interested in this product?

Put a request

Find Trader

Productdetails

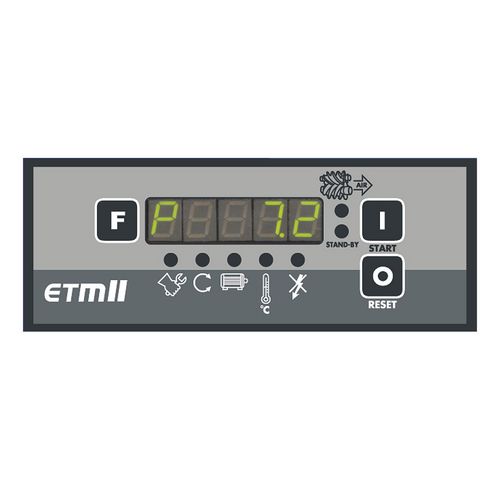

EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
With star-delta switch

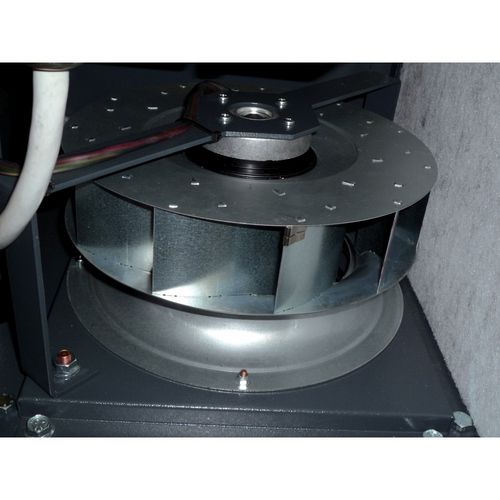

High cooling effect and lower noise level due to thermostatically controlled radial fan
Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirement via automatic message
Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
Screw compressor with wear-resistant Poly V ribbed belt drive and carriage tensioning system
Easy maintenance due to easily accessible elements
Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
Small external dimensions, thus easy transport and installation

Effective delivery volume approx.	2350 l/min
Maximum Pressure	8 bar
Air outlet	3/4 "
VPE	1

Compressed air tank
Pressure vessel capacity	500 l

Dimensions and weights
Length approx.	1980 mm
Width/depth approx.	700 mm
Height approx.	1630 mm
Weight approx.	362 kg

Electrical Data
Absorbed power electric motor	15 kW
Supply voltage	400 V
Mains frequency	50 Hz

Motor(s)
Motor type	Electrical

Noise emission
Sound pressure level Lp	68 dB(A)
Explanation sound pressure level Lp	Sound pressure level at 1 m distance according to DIN 45635 T 13

Unit: pc(s).
Packaging unit: 1

Compressed air tank	Hot-dip galvanised inside and out
Drive transmission	Ribbed belt

Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6
4921 Hohenzell
Österreich / Austria
info@aircraft.at

If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
