Screw compressor with ribbed belt drive on container with mounted refrigeration dryer
A-PLUS 15-08-500 K
for 100% capacity utilization - designed for maximum operational reliability.
9.750,00
EUR excl. Tax / pc(s).
11.602,50
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2092672
Are you interested in this product?
Put a request
Find Trader
Productdetails

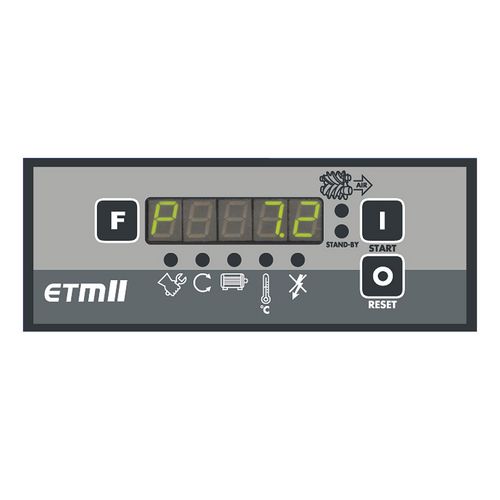

- EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
- With star-delta switch
- High cooling effect and lower noise level due to thermostatically controlled radial fan
- Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirement via automatic message
- Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
- Screw compressor with wear-resistant Poly V ribbed belt drive and slide clamping system
- Easy maintenance due to easily accessible elements
- Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
- Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
- Small external dimensions, thus easy transport and installation
- Fifteen-year warranty against rusting through on the inside and outside of hot-dip galvanized compressed air tanks
| Effective delivery volume approx. | 2150 l/min |
| Maximum Pressure | 8 bar |
| Air outlet | 3/4 " |
| VPE | 1 |
| Compressed air tank | |
|---|---|
| Pressure vessel capacity | 500 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 1980 mm |
| Width/depth approx. | 700 mm |
| Height approx. | 1630 mm |
| Weight approx. | 436 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 15 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 70 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Compressed air tank | Hot-dip galvanised inside and out |
| Drive transmission | Ribbed belt |
