| Oil-free / oil-lubricated | Oil lubricated |

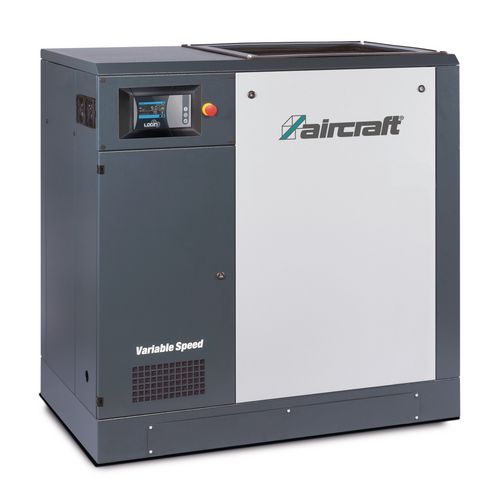

Screw compressor
A-K-MAX 18.5 - 90 VS (IE4) Stand alone
Compact screw compressor with variable speed control by IE4 permanent magnet motor and innovative LOGIN control system
From
18.510,00
EUR excl. Tax / pc(s).
From 22.026,90 EUR incl. 19% Tax / pc(s).
From 22.026,90 EUR incl. 19% Tax / pc(s).
Promotional price *
From 15.399,00 EUR excl. Tax / pc(s).From 18.324,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Noise emission | Motor(s) | Price | Promotional price * | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery quantity of up to approx. (l/min) | Maximum Pressure (bar) | Air outlet | VPE | Mobile / Stationary | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Absorbed power electric motor (kW) | Sound pressure level Lp (dB(A)) | Motor type | EUR excl. Tax | EUR incl. 19% Tax | EUR excl. Tax | EUR incl. 19% Tax | |
| A-K-MAX 18.5-08 VS (PM) | 2096102.2 | 570 3500 | 7.5 | 1 ¼ | 1 | 1330 | 850 | 1370 | 475 | 18.5 | 63 | 18.510,00 | 22.026,90 | - | - | |||
| A-K-MAX 18.5-10 VS (PM) | 2096104.2 | 660 3050 | 10 | 1 ¼ | 1 | 1330 | 850 | 1370 | 475 | 18.5 | 63 | 15.399,00 | 18.324,81 | |||||
| A-K-MAX 22-08 VS (PM) | 2096302.2 | 570 3800 | 7.5 | 1 ¼ | 1 | 1330 | 850 | 1370 | 475 | 22 | 61 | 15.499,00 | 18.443,81 | |||||
| A-K-MAX 22-10 VS (PM) | 2096304.2 | 660 3300 | 10 | 1 ¼ | 1 | 1330 | 850 | 1370 | 475 | 22 | 63 | 15.499,00 | 18.443,81 | |||||
| A-K-MAX 22-13 VS (PM) | 2096306.2 | 530 2700 | 13 | 1 ¼ | 1 | 1330 | 850 | 1370 | 475 | 22 | 63 | 15.499,00 | 18.443,81 | |||||
| A-K-MAX 24-08 VS (PM) | 2096322.2 | 810 4500 | 7.0 | 1 ¼ | 1 | Stationary | 1330 | 850 | 1370 | 590 | 22 | 61 | Electric | 22.750,00 | 27.072,50 | - | - | |
| A-K-MAX 24-10 VS (PM) | 2096324.2 | 790 3750 | 9.5 | 1 ¼ | 1 | Stationary | 1330 | 850 | 1370 | 590 | 22 | 63 | Electric | 22.750,00 | 27.072,50 | - | - | |
| A-K-MAX 24-13 VS (PM) | 2096326.2 | 775 3300 | 12.5 | 1 ¼ | 1 | Stationary | 1330 | 850 | 1370 | 590 | 22 | 63 | Electric | 22.955,00 | 27.316,45 | - | - | |
| A-K-MAX 31-08 VS (PM) | 2096412.2 | 845 5500 | 7.5 | 1.5 | 1 | 1590 | 1000 | 1560 | 795 | 30 | 68 | 26.370,00 | 31.380,30 | - | - | |||
| A-K-MAX 31-10 VS (PM) | 2096414.2 | 850 5050 | 10 | 1.5 | 1 | 1590 | 1000 | 1560 | 795 | 30 | 68 | 21.949,00 | 26.119,31 | |||||
| A-K-MAX 38-08 VS (PM) | 2096502.2 | 1350 6900 | 7.5 | 1.5 | 1 | 1590 | 1000 | 1560 | 850 | 37 | 70 | 23.899,00 | 28.439,81 | |||||
| A-K-MAX 38-10 VS (PM) | 2096504.2 | 850 5500 | 10 | 1.5 | 1 | 1590 | 1000 | 1560 | 795 | 37 | 70 | 23.899,00 | 28.439,81 | |||||
| A-K-MAX 38-13 VS (PM) | 2096506.2 | 900 5100 | 13 | 1.5 | 1 | 1590 | 1000 | 1560 | 795 | 37 | 68 | Electric | 23.899,00 | 28.439,81 | ||||
| A-K-MAX 45E-08 VS (PM) | 2097102.2 | 1570 8800 | 7.5 | 2 | 1 | 1590 | 1000 | 1560 | 855 | 45 | 72 | 37.225,00 | 44.297,75 | - | - | |||
| A-K-MAX 45E-10 VS (PM) | 2097104.2 | 1570 7350 | 10 | 2 | 1 | 1590 | 1000 | 1560 | 855 | 45 | 72 | 37.225,00 | 44.297,75 | - | - | |||
| A-K-MAX 55-08 VS (PM) | 2097302.2 | 1800 10100 | 7.5 | 2 | 1 | 1700 | 1250 | 1700 | 1110 | 55 | 72 | 43.430,00 | 51.681,70 | - | - | |||
| A-K-MAX 55-10 VS (PM) | 2097304.2 | 1790 8400 | 10 | 2 | 1 | 1700 | 1250 | 1700 | 1110 | 55 | 72 | 43.430,00 | 51.681,70 | - | - | |||
| A-K-MAX 55-13 VS (PM) | 2097306.2 | 1750 7400 | 13 | 2 | 1 | 1700 | 1250 | 1700 | 1110 | 55 | 72 | 43.430,00 | 51.681,70 | - | - | |||
| A-K-MAX 76-08 VS (PM) | 2097702.2 | 2770 13700 | 7.5 | 2 | 1 | 2300 | 1460 | 1960 | 2815 | 75 | 67 | 70.315,00 | 83.674,85 | - | - | |||
| A-K-MAX 76-10 VS (PM) | 2097704.2 | 2490 12430 | 10 | 2 | 1 | 2300 | 1460 | 1960 | 2815 | 75 | 67 | 70.315,00 | 83.674,85 | - | - | |||
| A-K-MAX 76-13 VS (PM) | 2097706.2 | 2410 11050 | 13 | 2 | 1 | 2300 | 1460 | 1960 | 2815 | 75 | 67 | 70.315,00 | 83.674,85 | - | - | |||
| A-K-MAX 90-08 VS (PM) | 2097902.2 | 2770 15900 | 7.5 | 2 | 1 | 2300 | 1460 | 1960 | 2815 | 90 | 67 | 72.380,00 | 86.132,20 | - | - | |||
| A-K-MAX 90-10 VS (PM) | 2097904.2 | 2490 13400 | 10 | 2 | 1 | 2300 | 1460 | 1960 | 2815 | 90 | 67 | 72.380,00 | 86.132,20 | - | - | |||
| A-K-MAX 90-13 VS (PM) | 2097906.2 | 2410 12100 | 13 | 2 | 1 | 2300 | 1460 | 1960 | 2815 | 90 | 67 | 72.380,00 | 86.132,20 | - | - | |||
Select Attributes
General
- Effective delivery quantity of up to approx.
- Maximum Pressure
- Air outlet
- VPE
- Mobile / Stationary
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Absorbed power electric motor
Noise emission
- Sound pressure level Lp
Motor(s)
- Motor type
Price
- excl. Tax
- incl. 19% Tax
Productdetails

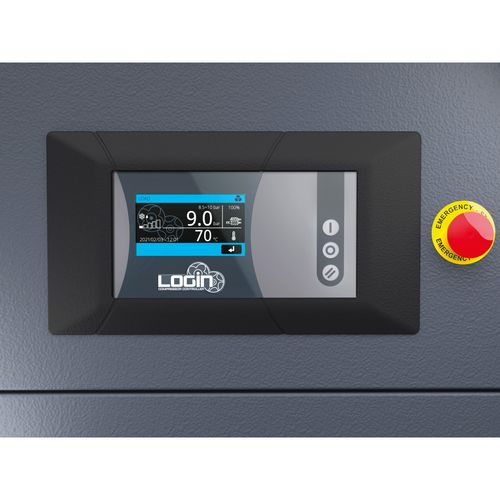

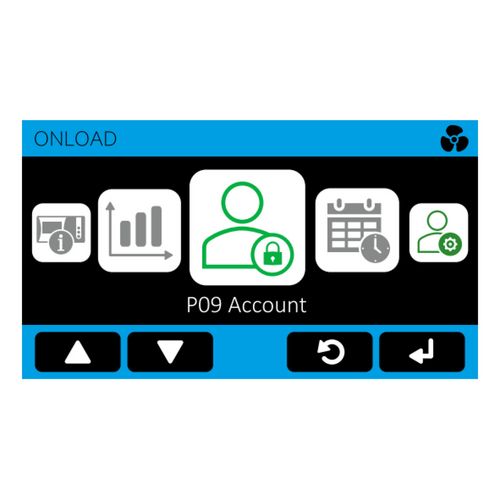

- Innovative LOGIN control with 4.3" touch screen for easy operation and full control of all functions.
- Rotation direction control for the motor, prevents damage during start-up or after a change of location
- High cooling effect and low noise level due to thermostatically controlled radial fan
- Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled centrifugal fan, optimum cooling air flow and generously dimensioned heat exchangers
- Aftercooler reduces the effort for drying and filtration of the generated compressed air

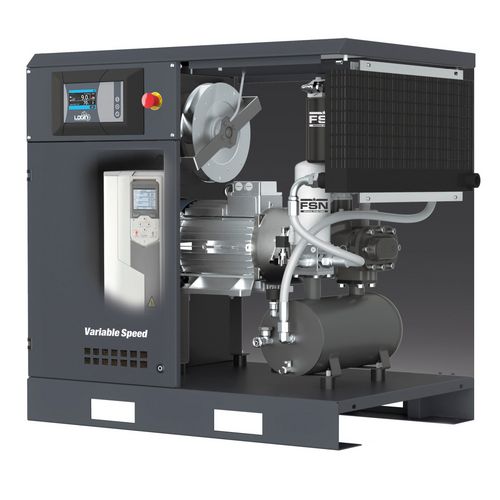

- Easy to service: simple removal and installation of all components requiring maintenance

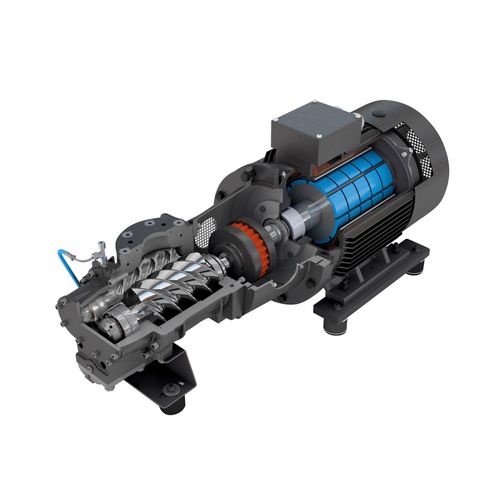

Latest generation IE4 permanent magnet motor for max. energy efficiency
- Larger speed/load range

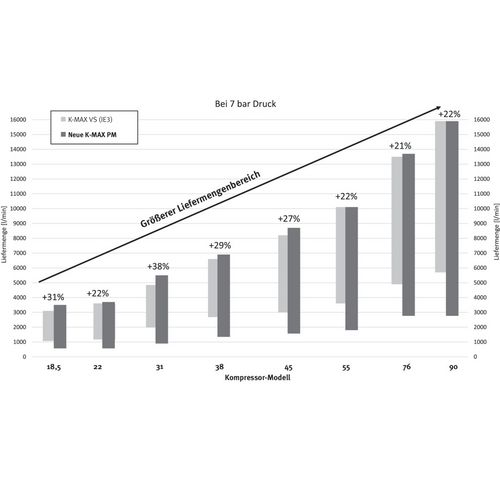

- Larger delivery volume supply range

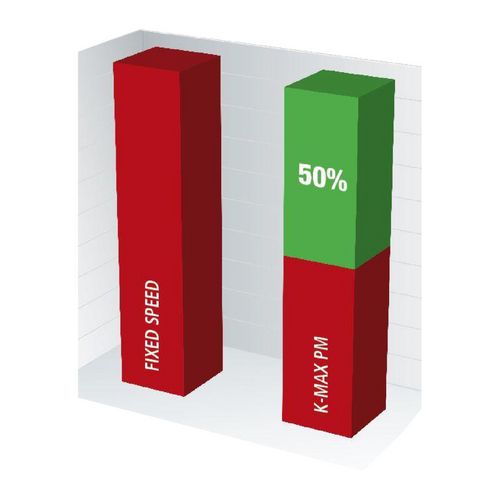

- Extremely energy efficient - up to 50% energy consumption savings compared to a "fixed speed" model
- Very quiet operation - only 64 dB
Energy saving through frequency control
- Ideal for frequently changing compressed air consumption
- Compressor delivery rate adjusts to actual consumption
- Electronic control monitors motor and compressor speed and keeps line pressure constant even when consumption fluctuates widely
- Advanced and efficient cutting-edge technology in the smallest possible space
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
