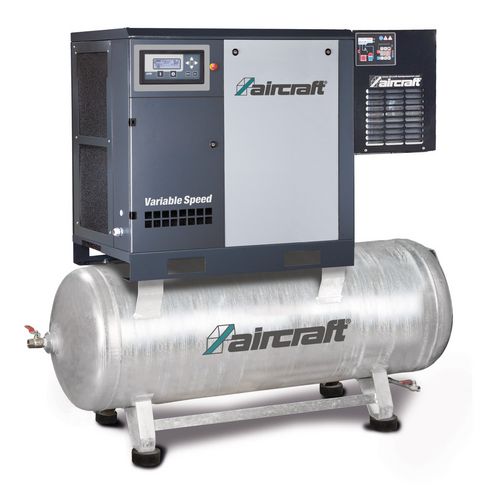

A-K-MAX F K VS Direct coupled screw compressor

Variations

		General			Compressed air tank	Dimensions and weights				Electrical Data	Noise emission	Price
Title	Art.-No.	Effective delivery quantity of up to approx. (l/min)	Maximum Pressure (bar)	VPE	Pressure vessel capacity (l)	Length approx. (mm)	Width/depth approx. (mm)	Height approx. (mm)	Weight approx. (kg)	Absorbed power electric motor (kW)	Sound pressure level Lp (dB(A))	EUR excl. Tax	EUR incl. 19% Tax
A-K-MAX 7,5-08-270F K VS	2095562	520 1300	8	1	270	1200	650	1540	305	7,5	63	10.050,00	11.959,50
A-K-MAX 7,5-10-270F K VS	2095564	440 1100	10	1	270	1200	650	1540	305	7,5	63	10.050,00	11.959,50
A-K-MAX 1110-500F K VS	2095774	620 1550	10	1	500	2000	730	1700	432	11	68	12.690,00	15.101,10

Select Attributes

General

Effective delivery quantity of up to approx.
Maximum Pressure
VPE

Compressed air tank

Pressure vessel capacity

Dimensions and weights

Length approx.
Width/depth approx.
Height approx.
Weight approx.

Electrical Data

Absorbed power electric motor

Noise emission

Sound pressure level Lp

Price

excl. Tax
incl. 19% Tax

Productdetails

Absolutely Low maintenance drive with maximum energy efficiency thanks to directly coupled coaxial screw compressor
EasyTronic IV control as standard prevents motor overload, reduces wear and ensures a longer service life
High cooling effect and Lower noise level thanks to the thermostatically controlled radial fan
Longer service life of the device and less fluctuations in the oil temperature thanks to the thermostatically controlled fan, optimal cooling air flow and generously sized heat exchanger
Less effort for drying and filtering the generated compressed air Integrated aftercooler
Guaranteed compliance with the maintenance intervals by recording the load and run-on times via the operating hours counter
Display of the maintenance requirement via automatic notification
Avoiding damage during commissioning or after changing location through integrated direction of rotation control for the motor
Service-friendly due to optimal accessibility and simple assembly / disassembly of all components to be serviced
Easy transport and assembly due to small external dimensions
Monitoring as standard the engine and compressor speed through SpeedTronic Control control
Fifteen-year guarantee against rusting through on the inside and outside of hot-dip galvanized compressed air tanks

Energy savings with frequency-controlled compressors:

Based on the frequency converter technology, the delivery quantity of the compressor adapts to the actual consumption. The electronic control monitors the engine and compressor speed and keeps the network pressure constant. The user receives advanced cutting-edge technology in the smallest of spaces.

Your advantages:

Active energy saving
Ideal for frequently changing compressed air consumption
The speed-controlled compressor achieves maximum efficiency and keeps the network pressure constant, even when consumption fluctuates greatly.

Air outlet

2 "

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Motor(s)
Motor type	Electrical

Noise emission
Explanation sound pressure level Lp	Sound pressure level at 1 m distance according to DIN 45635 T 13

Unit: pc(s).
