| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |

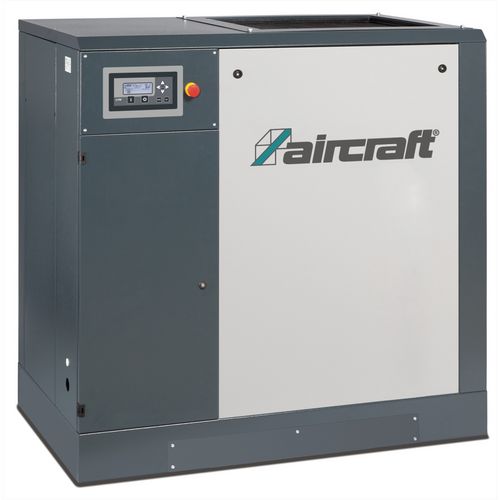

Screw compressor with ribbed belt drive (floor installation)
A-PLUS 30 - 75 kW
silenced screw compressors from 30 to 75 kW
From 15.100,00
EUR excl. Tax / pc(s).
From 17.969,00
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Noise emission | Price | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery volume approx. (l/min) | Maximum Pressure (bar) | Air outlet | VPE | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Absorbed power electric motor (kW) | Sound pressure level Lp (dB(A)) | EUR excl. Tax | EUR incl. 19% Tax | |
| A-PLUS 31-08 | 2093602 | 4 – 700 | 8 | 1 ¼ | 1 | 1530 | 830 | 1440 | 630 | 30 | 70 | 15.100,00 | 17.969,00 | |
| A-PLUS 31-10 | 2093604 | 4200 | 10 | 1 ¼ | 1 | 1530 | 830 | 1440 | 630 | 30 | 70 | 15.100,00 | 17.969,00 | |
| A-PLUS 31-13 | 2093606 | 3400 | 13 | 1 ¼ | 1 | 1530 | 830 | 1440 | 630 | 30 | 70 | 15.100,00 | 17.969,00 | |
| A-PLUS 38-08 | 2093802 | 6000 | 8 | 1 ¼ | 1 | 1530 | 830 | 1440 | 700 | 37 | 68 | 18.890,00 | 22.479,10 | |
| A-PLUS 38-10 | 2093804 | 5300 | 10 | 1 ¼ | 1 | 1530 | 830 | 1440 | 700 | 37 | 68 | 18.890,00 | 22.479,10 | |
| A-PLUS 38-13 | 2093806 | 4000 | 13 | 1 ¼ | 1 | 1530 | 830 | 1440 | 700 | 37 | 68 | 18.890,00 | 22.479,10 | |
| A-PLUS 45-08 | 2094202 | 7200 | 7.5 | 1.5 | 1 | 1600 | 970 | 1860 | 910 | 45 | 72 | 22.790,00 | 27.120,10 | |
| A-PLUS 45-10 | 2094204 | 6500 | 10 | 1.5 | 1 | 1600 | 970 | 1860 | 910 | 45 | 72 | 22.790,00 | 27.120,10 | |
| A-PLUS 45-13 | 2094206 | 5100 | 13 | 1.5 | 1 | 1600 | 970 | 1860 | 910 | 45 | 72 | 22.790,00 | 27.120,10 | |
| A-PLUS 55-08 | 2094402 | 8600 | 7.5 | 1.5 | 1 | 1600 | 970 | 1860 | 952 | 55 | 74 | 24.050,00 | 28.619,50 | |
| A-PLUS 55-13 | 2094406 | 6400 | 13 | 1.5 | 1 | 1600 | 970 | 1860 | 952 | 55 | 74 | 24.050,00 | 28.619,50 | |
| A-PLUS 56-08 | 2094602 | 9300 | 7.5 | 2 | 1 | 1800 | 1100 | 2150 | 1650 | 55 | 70 | 31.050,00 | 36.949,50 | |
| A-PLUS 56-10 | 2094604 | 8300 | 10 | 2 | 1 | 1800 | 1100 | 2150 | 1650 | 55 | 70 | 31.050,00 | 36.949,50 | |
| A-PLUS 56-13 | 2094606 | 7000 | 13 | 2 | 1 | 1800 | 1100 | 2150 | 1650 | 55 | 70 | 31.050,00 | 36.949,50 | |
| A-PLUS 75-08 | 2094802 | 12200 | 7.5 | 2 | 1 | 1800 | 1100 | 2150 | 1720 | 75 | 72 | 33.890,00 | 40.329,10 | |
| A-PLUS 75-10 | 2094804 | 10500 | 10 | 2 | 1 | 1800 | 1100 | 2150 | 1720 | 75 | 72 | 33.890,00 | 40.329,10 | |
| A-PLUS 75-13 | 2094806 | 8300 | 13 | 2 | 1 | 1800 | 1100 | 2150 | 1720 | 75 | 72 | 33.890,00 | 40.329,10 | |
Select Attributes
General
- Effective delivery volume approx.
- Maximum Pressure
- Air outlet
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Absorbed power electric motor
Noise emission
- Sound pressure level Lp
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- All main components of the compressor are manufactured by machining using numerically controlled machine tools, including suction regulator, separator block and minimum pressure valve

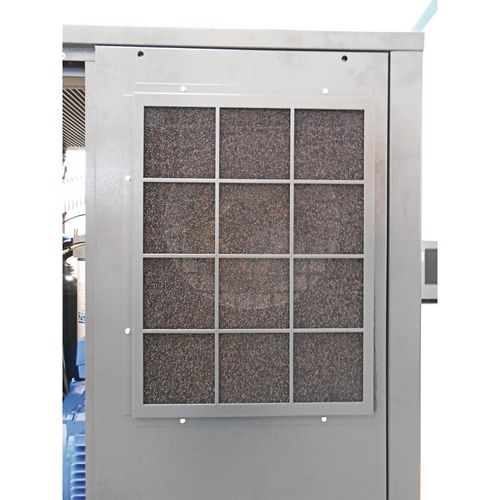

- The cooling takes place via a temperature-controlled centrifugal fan and an oversized combination cooler. This ensures optimal cooling even under the most extreme conditions.
- Generous access panels allow easy maintenance and immediate control of the internal components, reducing the time required for inspection and maintenance to one medium.
- The main operating parameters are monitored by the electronic microprocessor control NRG: In addition to the various functions, a weekly timer for switching on and off is available to meet the requirements of each customer. In addition, up to 4 machines can be controlled simultaneously according to the master / slave principle.
- Standard with star-delta connection
Energy savings through frequency-controlled compressors
Reducing energy consumption and protecting our precious energy resources has become a global challenge given its impact on the environment. The A-PLUS 22, 37, 55 and 75 kW range is also available in a speed control version that combines high performance with energy saving solutions. By using a variable speed compressor in a typical installation, you save a significant amount of energy.
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
