| Air outlet | 3/4 " |

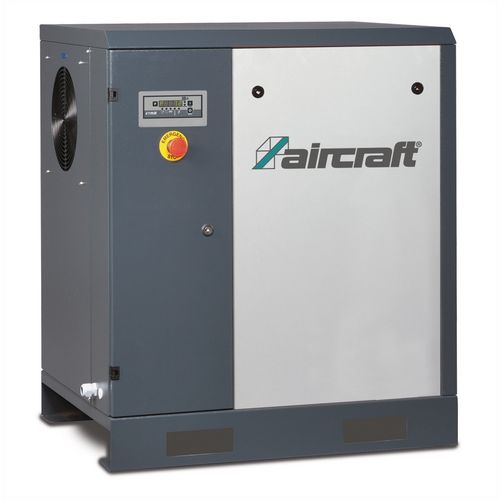

Screw compressor with ribbed belt drive (floor installation)
A-PLUS 7,5 - 15 kW
for 100% capacity utilization - designed for maximum operational reliability.
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Noise emission | Compressed air tank | Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery volume approx. (l/min) | Maximum Pressure (bar) | VPE | Weight approx. (kg) | Absorbed power electric motor (kW) | Sound pressure level Lp (dB(A)) | Pressure vessel capacity | EUR excl. Tax | EUR incl. 19% Tax | |
| A-PLUS 8-15 | 2092208 | 670 | 15 | 1 | 205 | 7,5 | 68 | Price upon request | - | ||
| A-PLUS 11-10 | 2092404 | 1500 | 10 | 1 | 210 | 11 | 69 | Price upon request | - | ||
| A-PLUS 11-13 | 2092406 | 1100 | 13 | 1 | 210 | 11 | 69 | Price upon request | - | ||
| A-PLUS 11-15 | 2092408 | 980 | 15 | 1 | 216 | 11 | 69 | Price upon request | - | ||
| A-PLUS 15-08 | 2092602 | 2150 | 8 | 1 | 220 | 15 | 70 | Price upon request | - | ||
| A-PLUS 15-10 | 2092604 | 1850 | 10 | 1 | 220 | 15 | 70 | 500 | Price upon request | - | |
| A-PLUS 15-13 | 2092606 | 1500 | 13 | 1 | 220 | 15 | 70 | Price upon request | - | ||
| A-PLUS 15-15 | 2092608 | 1300 | 15 | 1 | 220 | 15 | 70 | Price upon request | - | ||
| A-PLUS 16-08 | 2092802 | 2350 | 8 | 1 | 241 | 15 | 68 | Price upon request | - | ||
| A-PLUS 16-10 | 2092804 | 2050 | 10 | 1 | 241 | 15 | 68 | Price upon request | - | ||
| A-PLUS 16-13 | 2092806 | 1750 | 13 | 1 | 241 | 15 | 68 | Price upon request | - | ||
Select Attributes
General
- Effective delivery volume approx.
- Maximum Pressure
- VPE
Dimensions and weights
- Weight approx.
Electrical Data
- Absorbed power electric motor
Noise emission
- Sound pressure level Lp
Compressed air tank
- Pressure vessel capacity
Price
- excl. Tax
- incl. 19% Tax
Productdetails

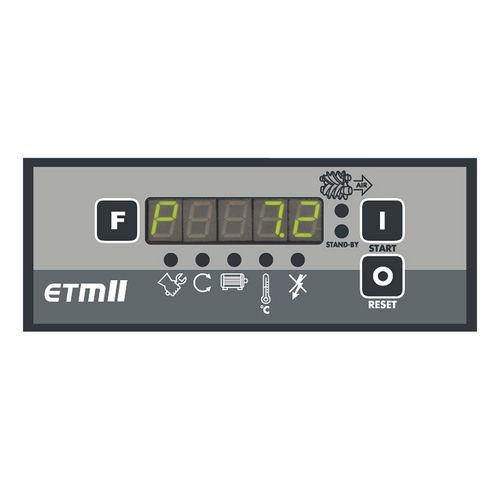

- EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
- With star-delta switch

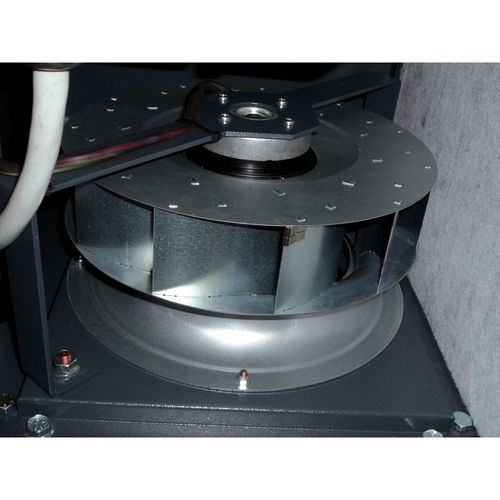

- High cooling effect and lower noise level due to thermostatically controlled radial fan
- Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirement via automatic message
- Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
- Screw compressor with wear-resistant Poly V ribbed belt drive and carriage tensioning system
- Easy maintenance due to easily accessible elements

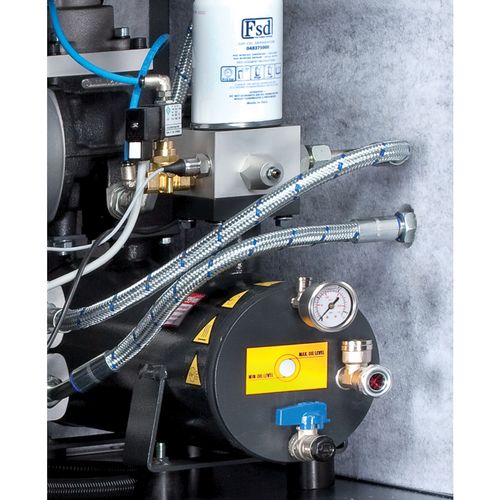

- Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control

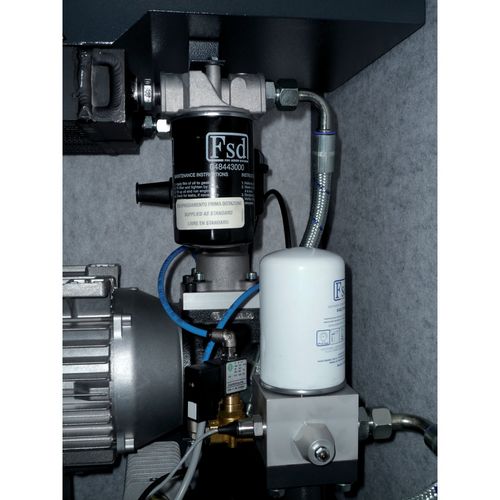

- Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
- Small external dimensions, thus easy transport and installation
| Dimensions and weights | |
|---|---|
| Length approx. | 800 mm |
| Width/depth approx. | 650 mm |
| Height approx. | 980 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
Unit: pc(s).
