| Air outlet | ½ " |

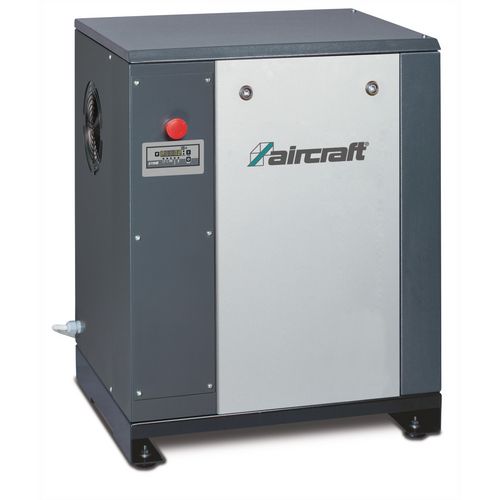

Screw compressor with ribbed belt drive (floor installation)
A-MICRO
Screw compressors with ribbed belt drive in soundproof housing. For continuous operation even with smaller air requirements.
From 4.175,00
EUR excl. Tax / pc(s).
From 4.968,25
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Noise emission | Price | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery volume approx. (l/min) | Maximum Pressure (bar) | VPE | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Absorbed power electric motor (kW) | Sound pressure level Lp (dB(A)) | EUR excl. Tax | EUR incl. 19% Tax | |
| A-MICRO 4.0-08 | 2091602-S | 580 | 8 | 1 | 580 | 480 | 760 | 94 | 4 | 60 | 4.175,00 | 4.968,25 | |
| A-MICRO 4.0-10 | 2091604-S | 485 | 10 | 1 | 580 | 480 | 760 | 94 | 4 | 60 | 4.175,00 | 4.968,25 | |
| A-MICRO 4.0-13 | 2091606-S | 330 | 13 | 1 | 580 | 480 | 760 | 94 | 4 | 60 | 4.175,00 | 4.968,25 | |
| A-MICRO 5.5-08 | 2091802 | 720 | 8 | 1 | 600 | 520 | 780 | 125 | 5.5 | 64 | 4.815,00 | 5.729,85 | |
| A-MICRO 5.5-10 | 2091804 | 650 | 10 | 1 | 600 | 520 | 780 | 125 | 5.5 | 64 | 4.815,00 | 5.729,85 | |
| A-MICRO 5.5-13 | 2091806 | 485 | 13 | 1 | 600 | 520 | 780 | 125 | 5.5 | 64 | 4.815,00 | 5.729,85 | |
Select Attributes
General
- Effective delivery volume approx.
- Maximum Pressure
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Absorbed power electric motor
Noise emission
- Sound pressure level Lp
Price
- excl. Tax
- incl. 19% Tax
Productdetails

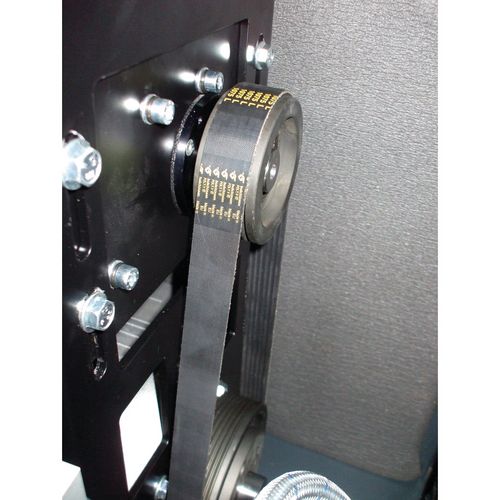

- Space-saving single compressor with ribbed belt drive
- With control ETM II including direction of rotation control
- Especially suitable for companies that have a continuous air requirement, but want a compact unit with a reduced noise level and low operating costs
- Standard supersonic insulation allows installation in sensitive rooms

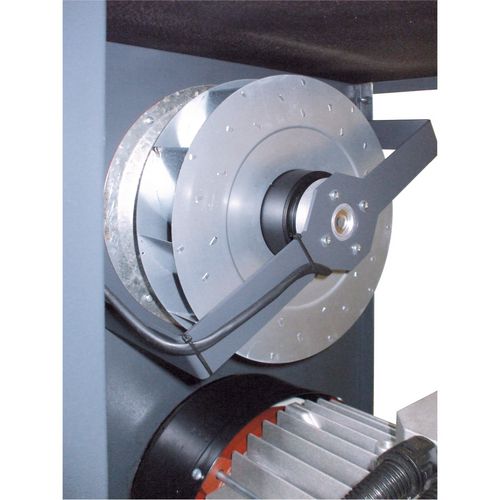

- Intensive cooling warrantys operational safety and good air quality
- Standard with star-delta connection
- Ideal also suitable for supplementing existing systems, eg for covering the compressed air base load
- Standard with thermal motor protection, oil temperature monitoring (max 110 °C) and operating hours counter, ensuring high operational safety
- Service-friendly due to optimal accessibility and easy disassembly and assembly of all important components
- Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
