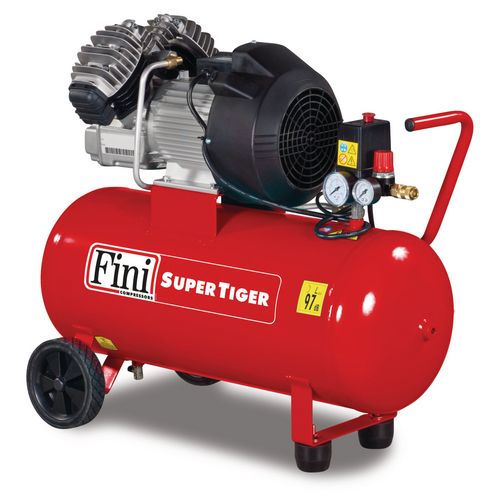

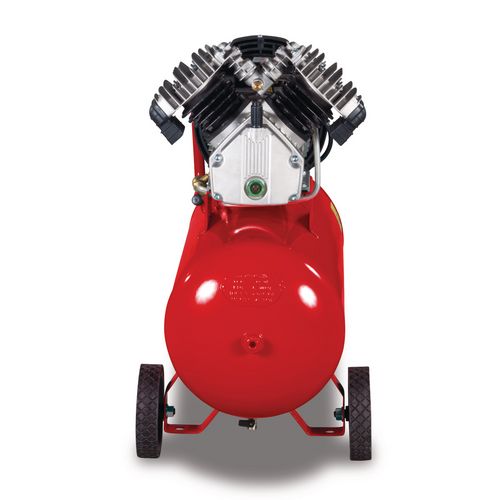

Mobile piston compressor
SuperTiger VKM4020-3M
The mobile for the trade
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2703650
Are you interested in this product?
Put a request
Find Trader
Productdetails
- With two-cylinder V-unit and single-stage compression
- Fully automatic on/off operation
- Electric motor equipped with motor protection switch
- Each one manometer for indication of the container and working pressure
- Powder-coated 50 l compressed air container
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 50 l |
| Compressor | |
|---|---|
| Compressor system | HOS |
| Suction capacity approx. | 356 l/min |
| Filling capacity approx. | 215 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 870 mm |
| Width/depth approx. | 350 mm |
| Height approx. | 700 mm |
| Weight approx. | 38 kg |
| Electrical Data | |
|---|---|
| Delivery power | 2.2 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound power level Lw | 97 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- pressure reducer
- Automatic pressure switch
- Pressure gauge for indication of tank and working pressure
- Hand quick coupling
- Aluminum air ducts
| Pressure regulation | Pressure regulator |
| Automatic pressure switch | ✔ |
| Drive transmission | Direct-coupled |
| Material compressed air line | Aluminum |
| Connection cable | 1.8 m |
| Connector | CEE 7/4 |
| Compressed air outlet | A one-hand quick coupling |
| Condensate drain | Condensate drain valve |
| Pressure vessel | Powder-coated |
| Compressor base | Two wheels, two rubber buffers |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
